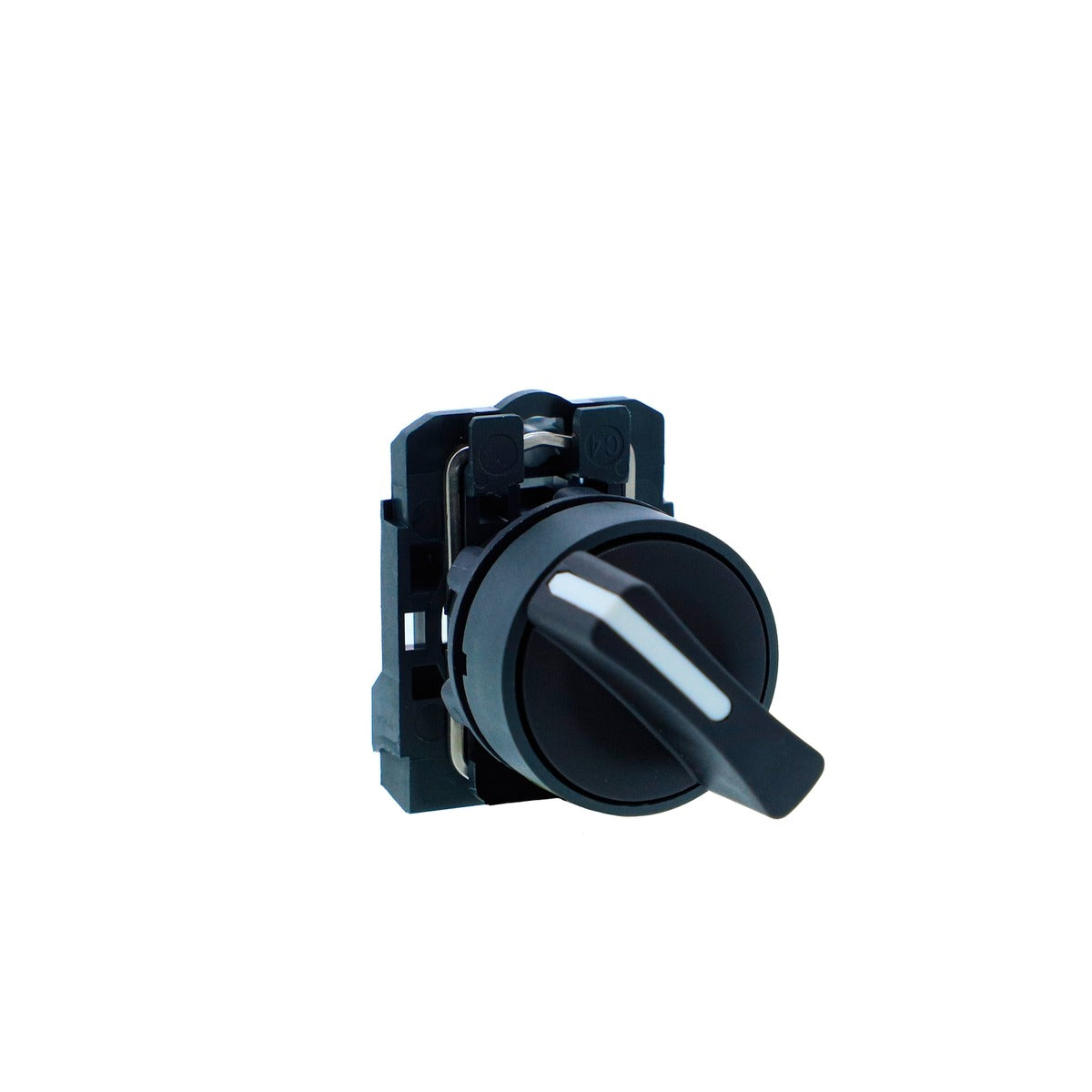

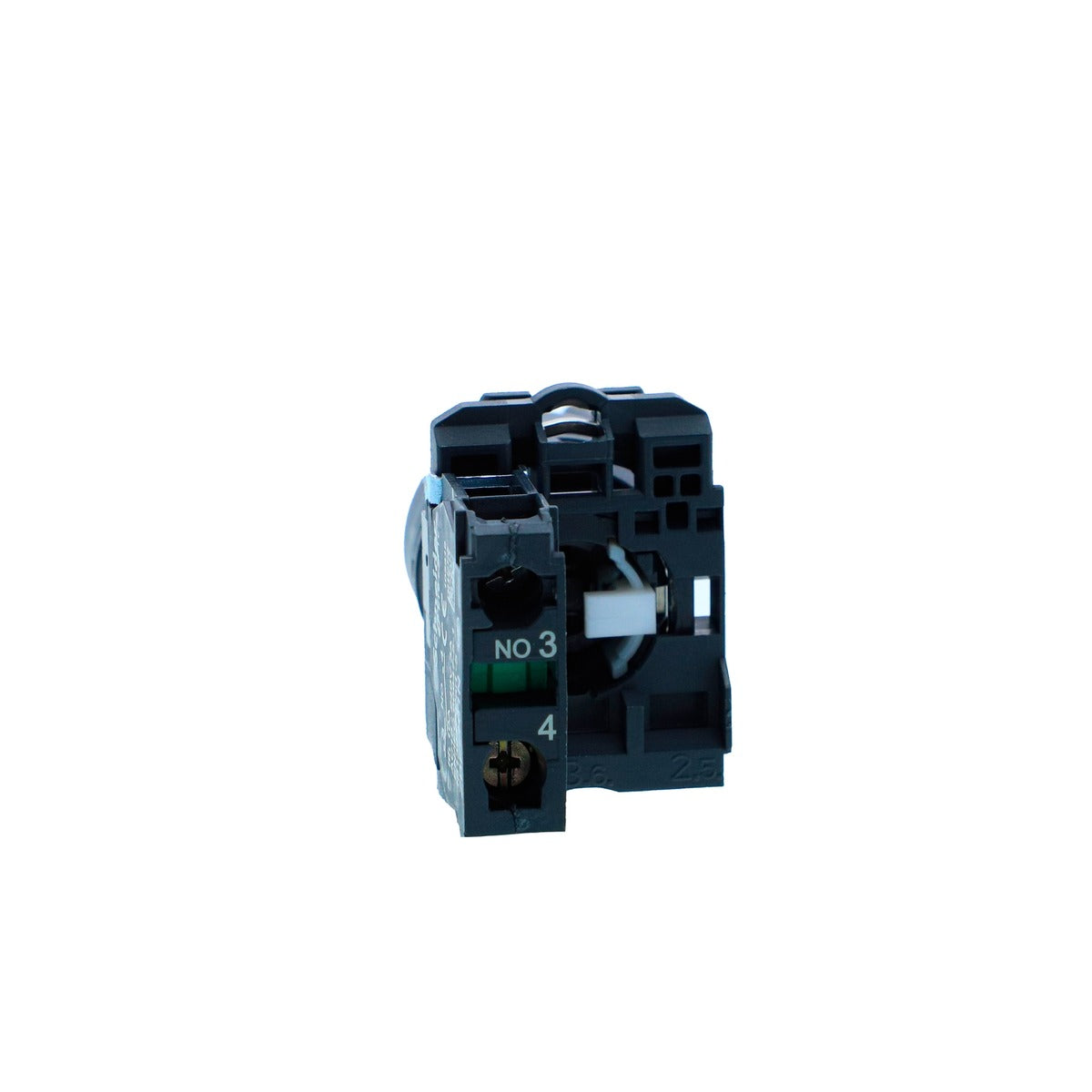

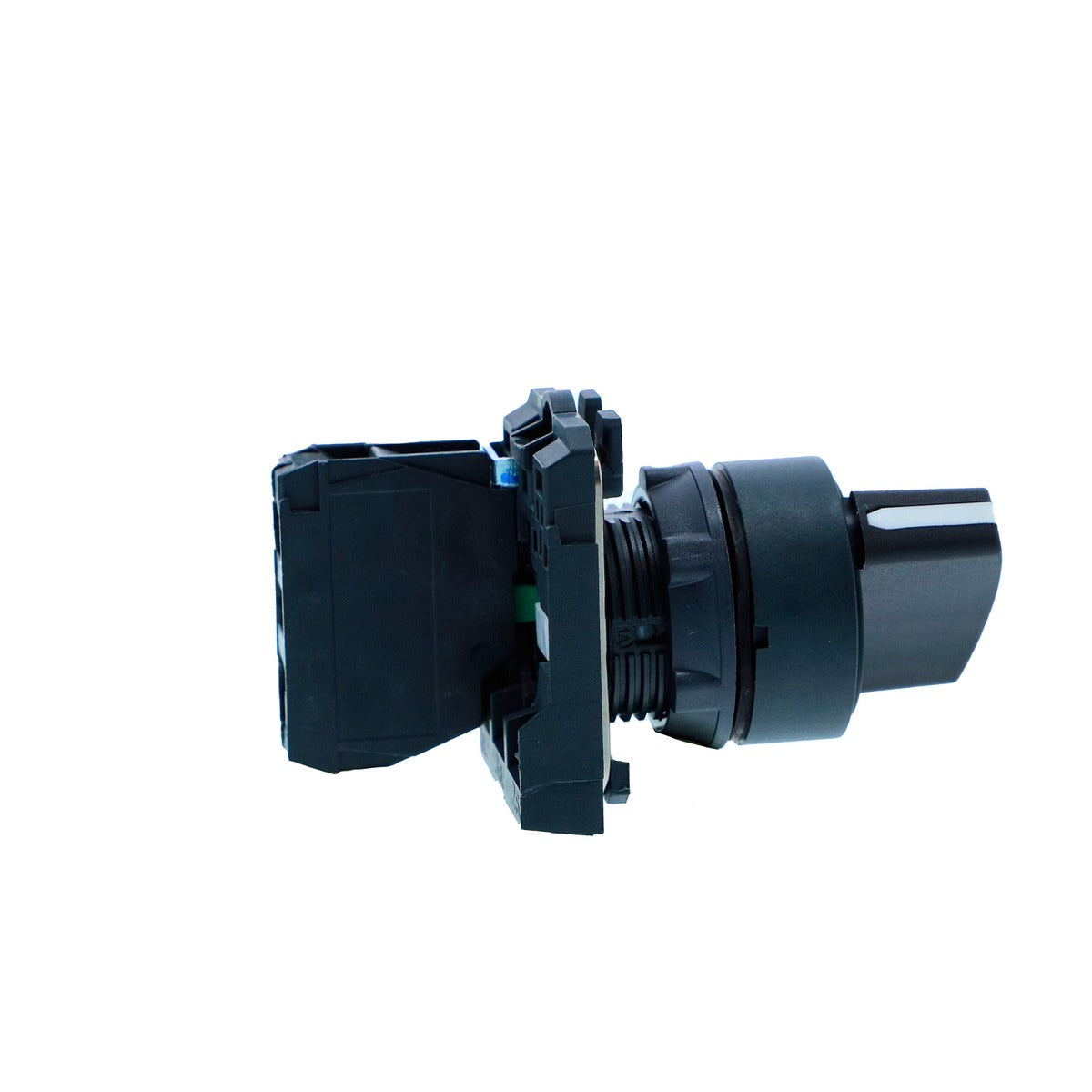

Schneider XB5AD21N Selector Switch 2 Position, Stay Put, 22mm
No reviews
Regular price
Rs. 403.00
Regular price
Rs. 619.00
Sale price
Rs. 403.00
Incl. all taxes • Shipping calculated at checkout.
Minimum order value is Rs 1,001. Add other items to reach it.
Price excl. GST
Rs. 341.53
GST @ 18% included in above product price
Couldn't load pickup availability
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Description
XB5AD21N is a Schneider Electric Harmony XB5 control unit. Schneider lists it as: Selector switch, Harmony XB5N XB7N, plastic, black, 22mm, short handle, 2 position, stay put, 1 NO.
Mounting diameter
22.5 mm
Type of operator
2 stay put
Ui rated insulation voltage
600 V (pollution degree 3) conforming to IEC 609
Technical specifications
| Make | Schneider Electric |
| Model | XB5AD21N |
| Range of product | Harmony XB5N/XB7N |
| Product or component type | Selector switch |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Head type | Standard |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Type of operator | 2 stay put |
| Operator profile | Black standard handle |
| Operator position information | 2 positions 90° |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Height | 42 mm |
| Width | 30 mm |
| Depth | 70 mm |
| Net weight | 0.043 kg |
| Contacts usage | Standard contacts |
| Mechanical durability | 1000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) |
| Ith conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Ui rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
| Uimp rated impulse withstand voltage | 6 kV conforming to IEC 60947-1 |
| Electrical durability | 1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating... |
| Ambient air temperature for operation | -25…70 °C |
| Standards | IEC 60947-5-4; IEC 60947-1; IEC 60947-5-1; IS 13947-5-1 |
| Product certifications | CE |
PDF
XB5AD21N product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider XB5AD21N
What is the mounting diameter of the XB5AD21N?
22.5 mm, as published by Schneider Electric.
What is the type of operator of the XB5AD21N?
2 stay put, as published by Schneider Electric.
What is the ui rated insulation voltage of the XB5AD21N?
600 V (pollution degree 3) conforming to IEC 609, as published by Schneider Electric.
Where can I download the XB5AD21N datasheet?
You can download the official PDF datasheet here: XB5AD21N datasheet (PDF).
Is the XB5AD21N genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the XB5AD21N in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
