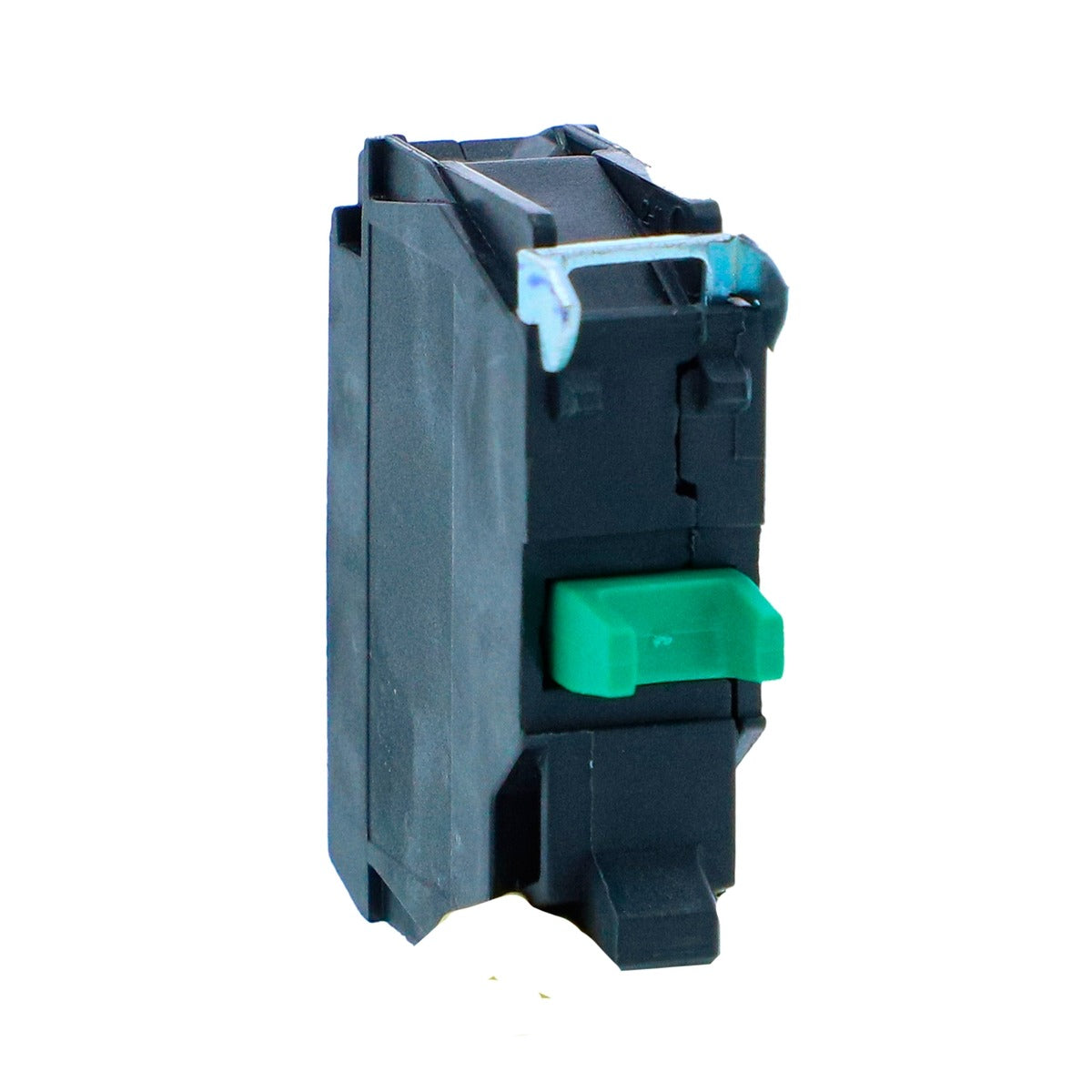

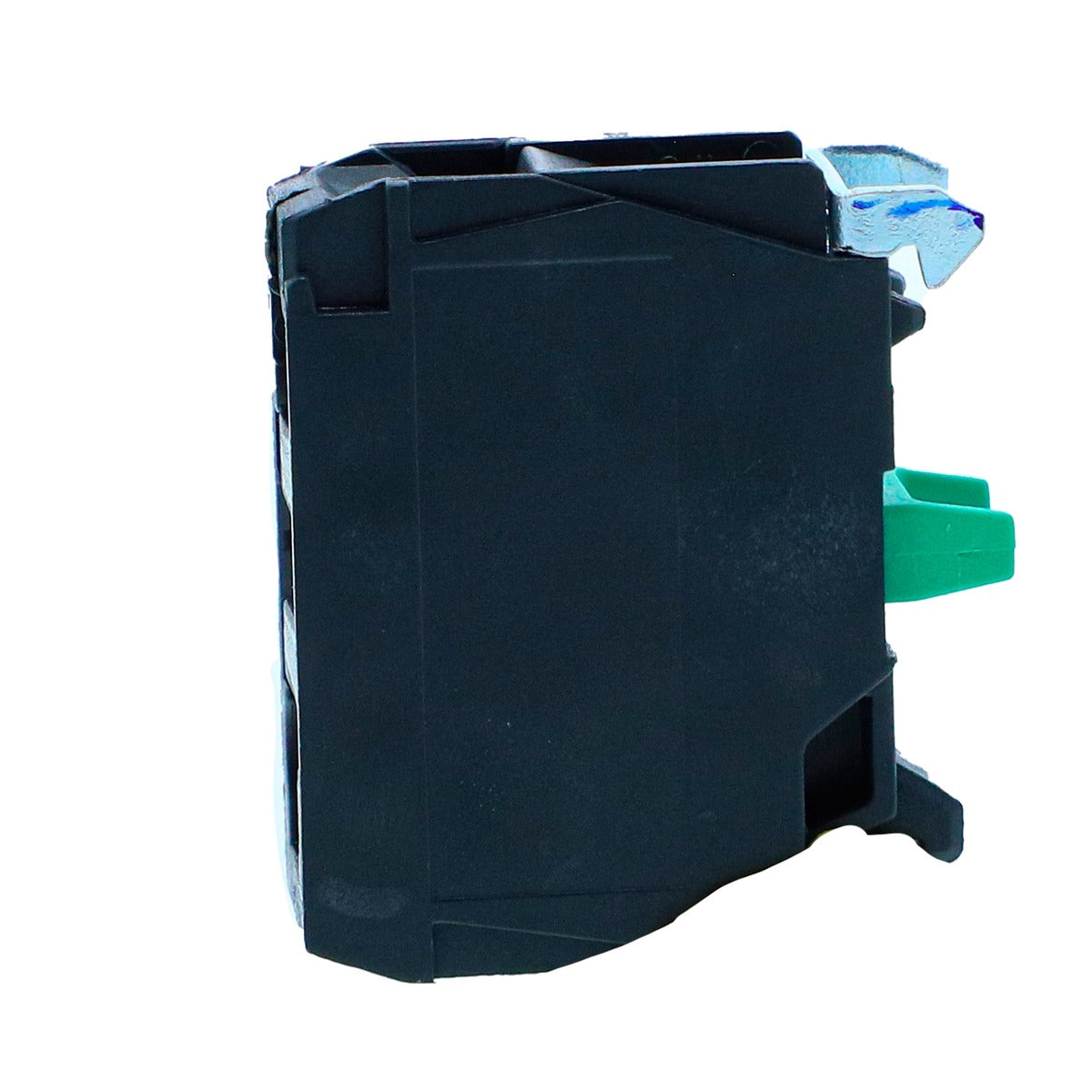

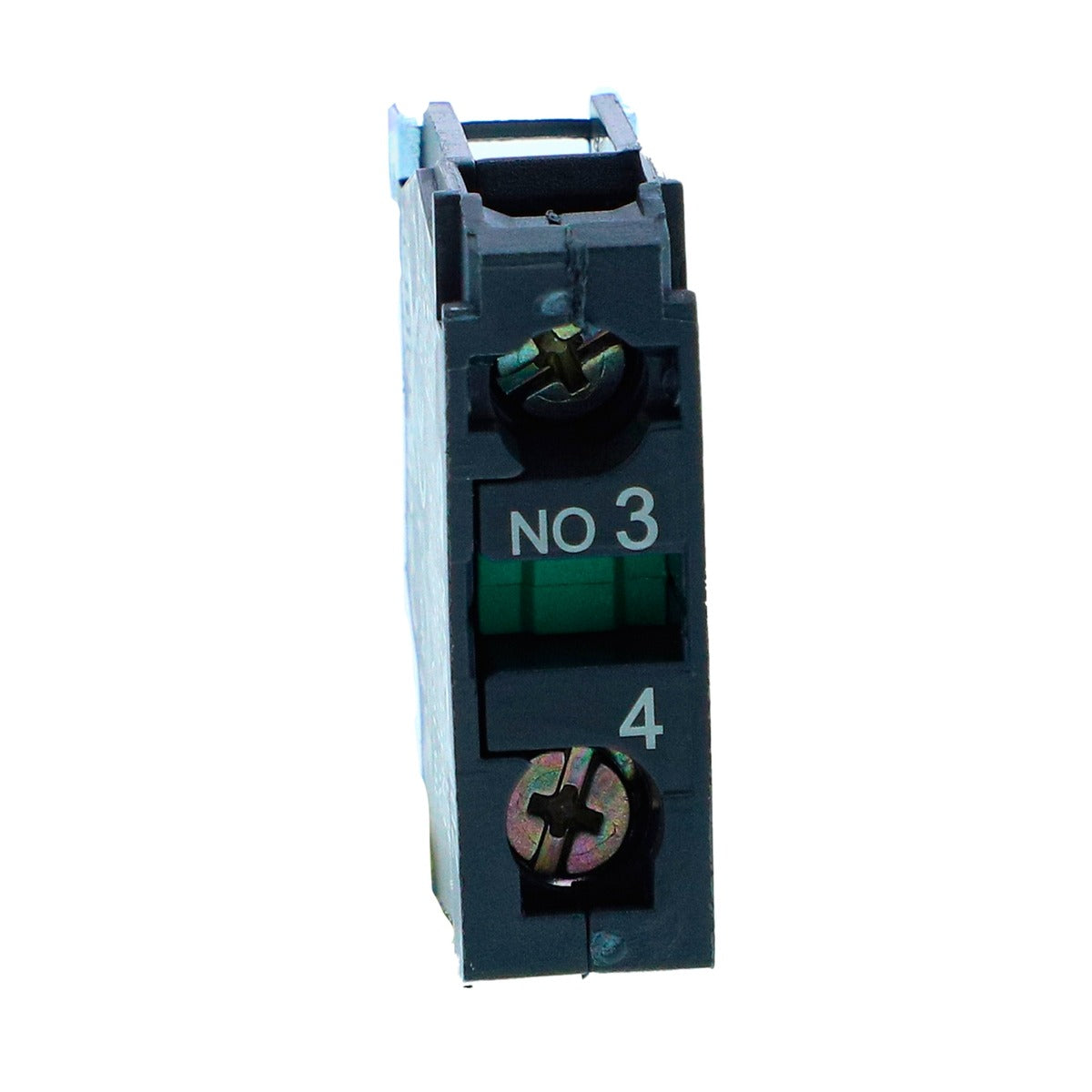

Schneider ZBE101N Contact Block 1NO for XB5 Push Buttons

Q: What is the contact block type of the ZBE101N?

Single, as published by Schneider Electric.

Q: What is the ui rated insulation voltage of the ZBE101N?

600 V (pollution degree 3) conforming to IEC 609, as published by Schneider Electric.

Q: What is the range of product of the ZBE101N?

Harmony XB5N/XB7N, as published by Schneider Electric.

Q: Where can I download the ZBE101N datasheet?

You can download the official PDF datasheet here: ZBE101N datasheet (PDF) on this page.

Q: Is the ZBE101N genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the ZBE101N in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

₹108

~~₹166~~ ₹108

35% off

Incl. all taxes • Shipping calculated at checkout.

Free delivery on orders above ₹3,000 · Delivery charges

Price excl. GST ₹91.53

GST @ 18% included in above product price

Quantity

4.5/5 · 78 customer reviews GST Invoice PAN India Delivery Fast Dispatch

1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Description

ZBE101N is a Schneider Electric Harmony XB5 control unit. Schneider lists it as: Single contact block, Harmony XB5N XB7N, silver alloy, screw clamp terminal, 1 NO.

Contact block type

Single

Ui rated insulation voltage

600 V (pollution degree 3) conforming to IEC 609

Range of product

Harmony XB5N/XB7N

Product or component type

Contact block with protected terminals

Technical specifications

Make	Schneider Electric
Model	ZBE101N
Range of product	Harmony XB5N/XB7N
Product or component type	Contact block with protected terminals
Sale per indivisible quantity	20
Contact block type	Single
Fixing collar material	Plastic
Net weight	0.011 kg
Contacts type and composition	1 NO
Contact operation	Slow-break
Contacts usage	Standard contacts
Mechanical durability	5000000 cycles
Connections - terminals	Screw clamp terminal, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminal, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Contacts material	Silver alloy (Ag/Ni)
Ith conventional free air thermal current	10 A conforming to IEC 60947-5-1
Ui rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
Uimp rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Electrical durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating...
Ambient air temperature for operation	-25…70 °C
Standards	IEC 60947-5-4; IEC 60947-1; IEC 60947-5-1; IS 13947-5-1
Product certifications	CE
