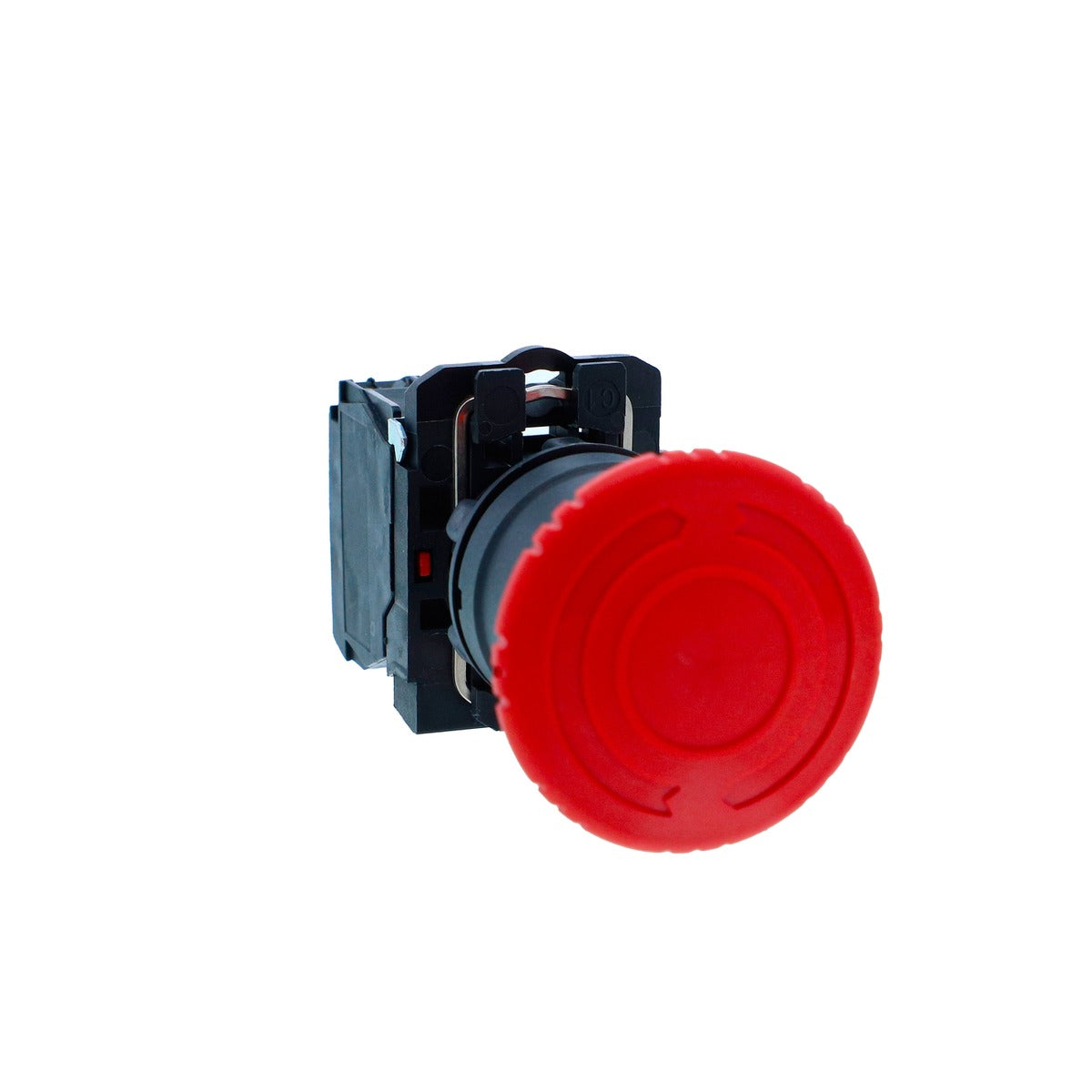

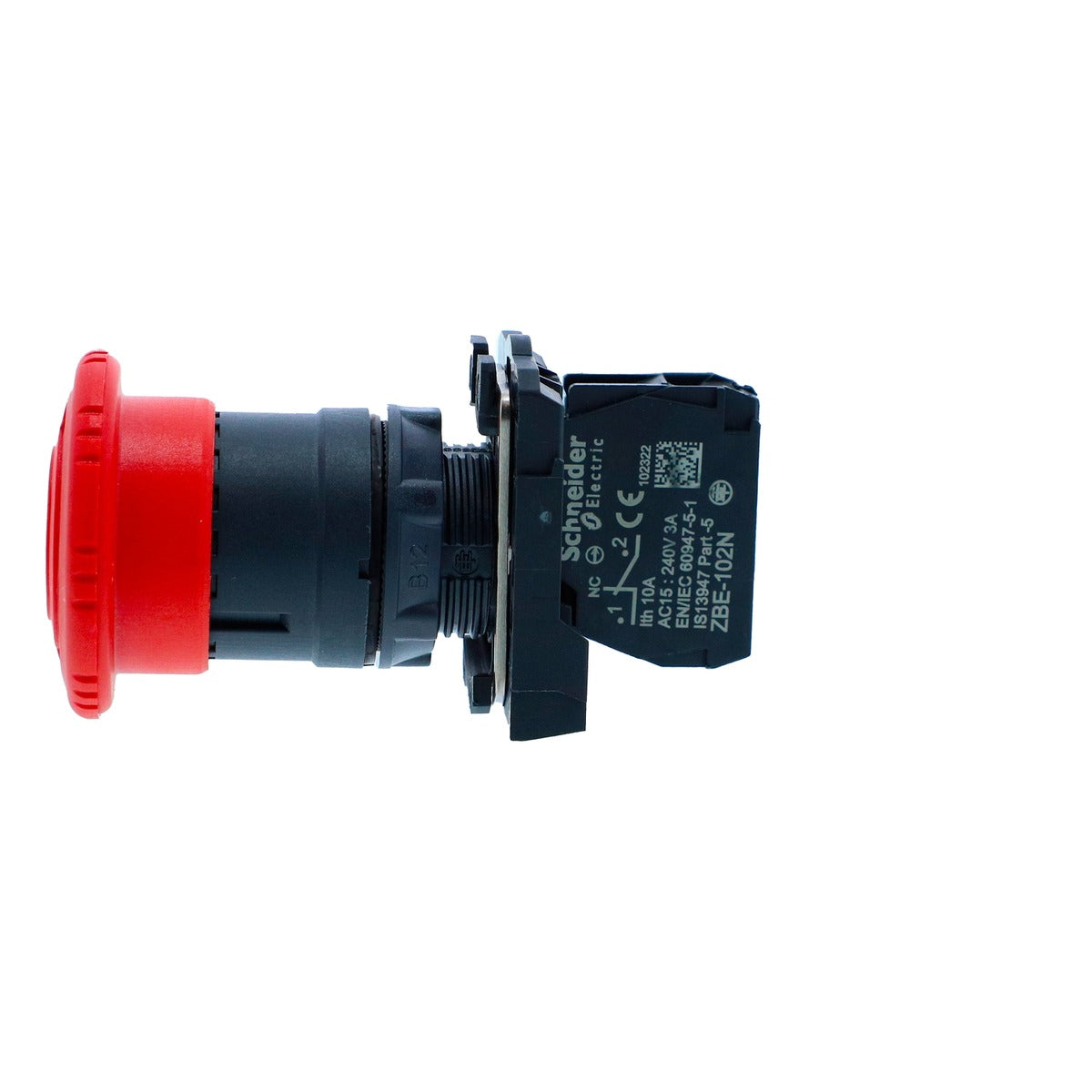

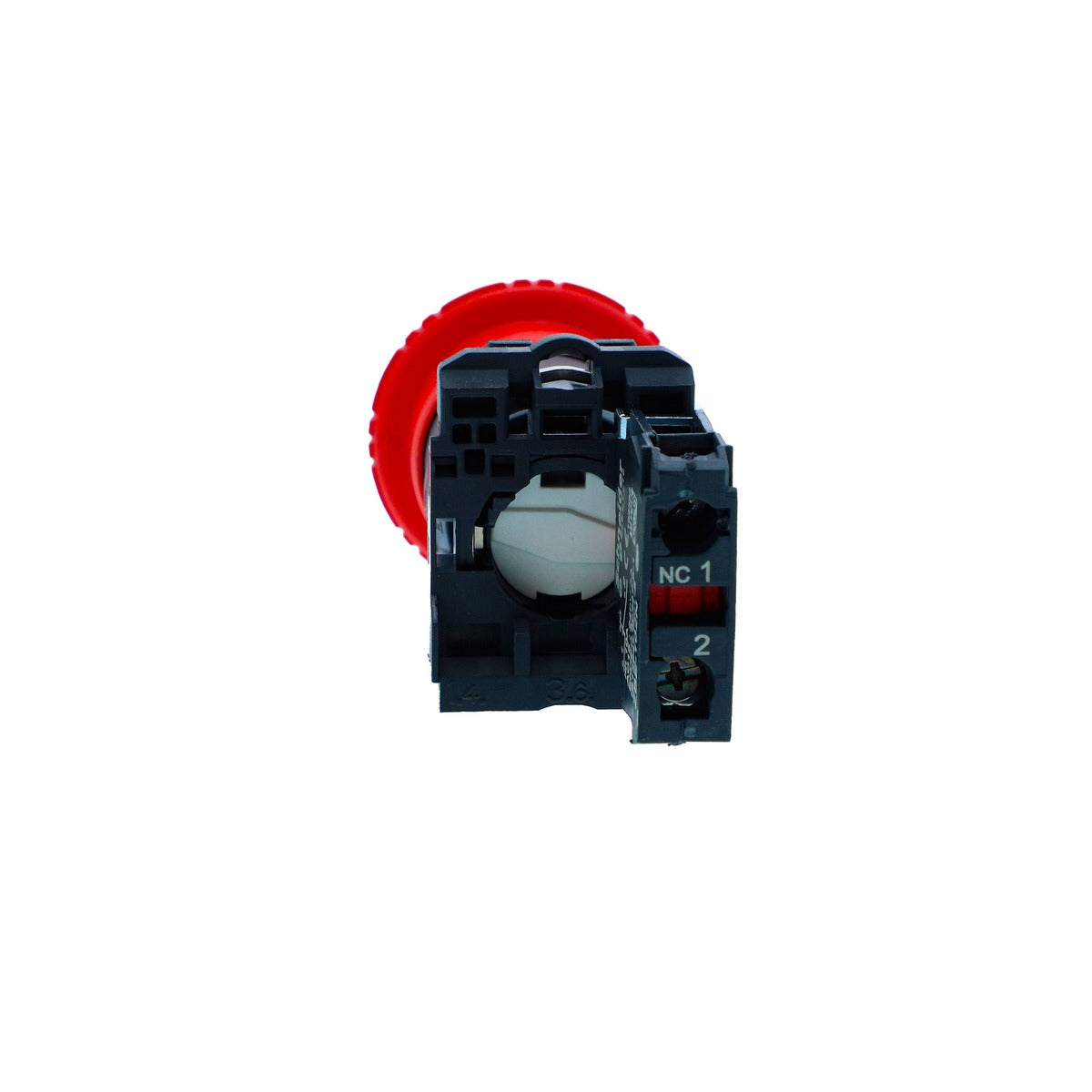

Schneider XB5AS542N Emergency Stop Push Button, Turn to Release, 40mm

Q: What is the mounting diameter of the XB5AS542N?

22.5 mm, as published by Schneider Electric.

Q: What is the type of operator of the XB5AS542N?

Turn to release mechanical latching, as published by Schneider Electric.

Q: What is the ui rated insulation voltage of the XB5AS542N?

600 V (pollution degree 3) conforming to IEC 609, as published by Schneider Electric.

Q: Where can I download the XB5AS542N datasheet?

You can download the official PDF datasheet here: XB5AS542N datasheet (PDF) on this page.

Q: Is the XB5AS542N genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the XB5AS542N in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

₹310

~~₹476~~ ₹310

35% off

Incl. all taxes • Shipping calculated at checkout.

Free delivery on orders above ₹3,000 · Delivery charges

Price excl. GST ₹262.71

GST @ 18% included in above product price

Quantity

4.5/5 · 78 customer reviews GST Invoice PAN India Delivery Fast Dispatch

1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Description

XB5AS542N is a Schneider Electric Harmony XB5 control unit. Schneider lists it as: Emergency switching off push button, Harmony XB5N XB7N, plastic, red, 40mm, turn to release, 1 NC.

Mounting diameter

22.5 mm

Type of operator

Turn to release mechanical latching

Ui rated insulation voltage

600 V (pollution degree 3) conforming to IEC 609

Technical specifications

Make	Schneider Electric
Model	XB5AS542N
Range of product	Harmony XB5N/XB7N
Product or component type	Emergency switching off push-button
Bezel material	Dark grey plastic
Fixing collar material	Plastic
Head type	Mushroom
Mounting diameter	22.5 mm
Sale per indivisible quantity	20
Shape of signaling unit head	Round
Type of operator	Turn to release mechanical latching
Reset	Turn to release
Operator profile	Red mushroom Ø 40 mm, unmarked
Contact operation	Slow-break
Connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Device presentation	Complete product
Contacts type and composition	1 NC
Height	43 mm
Width	40 mm
Depth	78.5 mm
Net weight	0.072 kg
Fixing mode	Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Contacts usage	Standard contacts
Mechanical durability	300000 cycles
Contacts material	Silver alloy (Ag/Ni)
Ith conventional free air thermal current	10 A conforming to IEC 60947-5-1
Ui rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
Uimp rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Electrical durability	1000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C; 1000000 cycles, AC-15, 3 A at 120 V, operating...
Compatibility code	XB5
