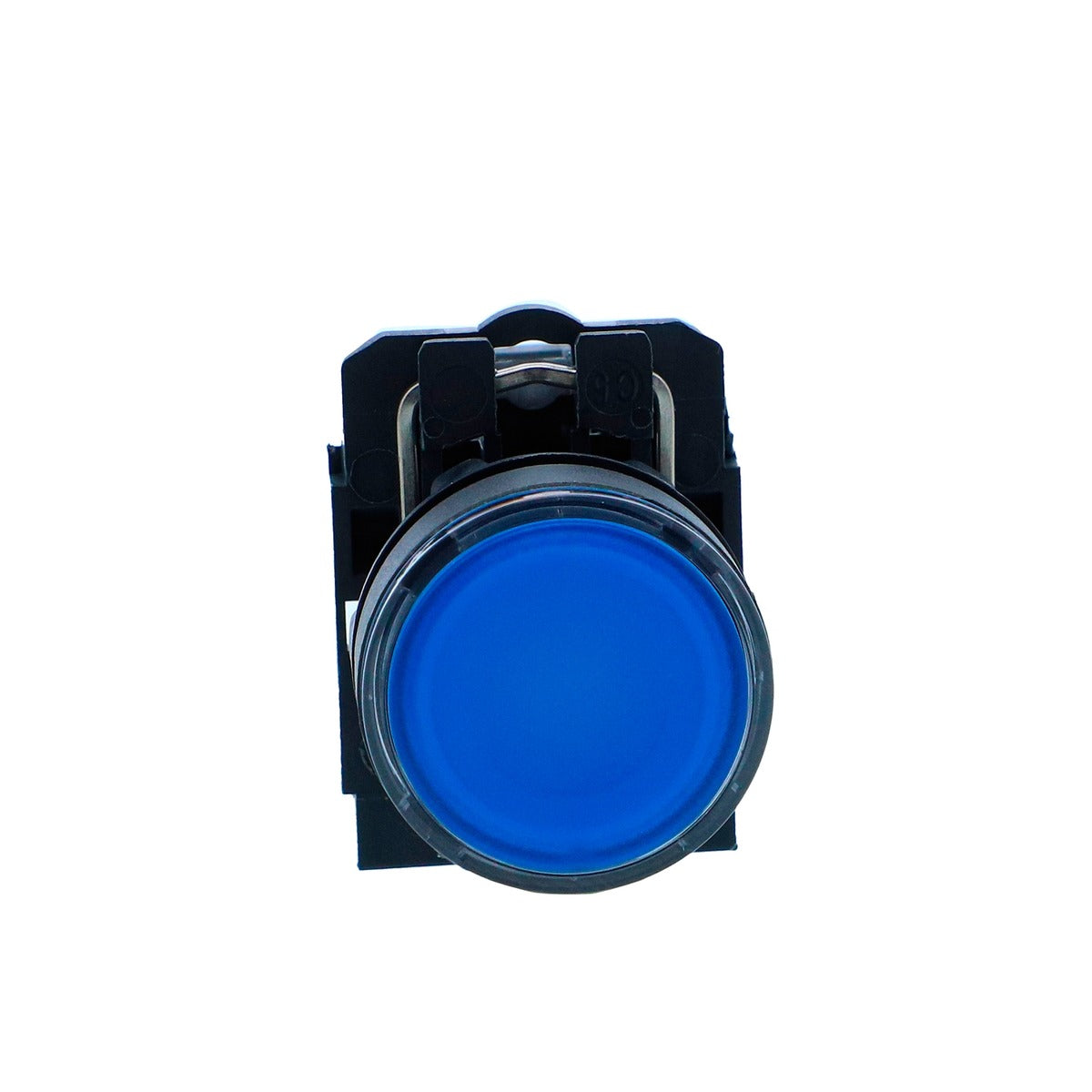

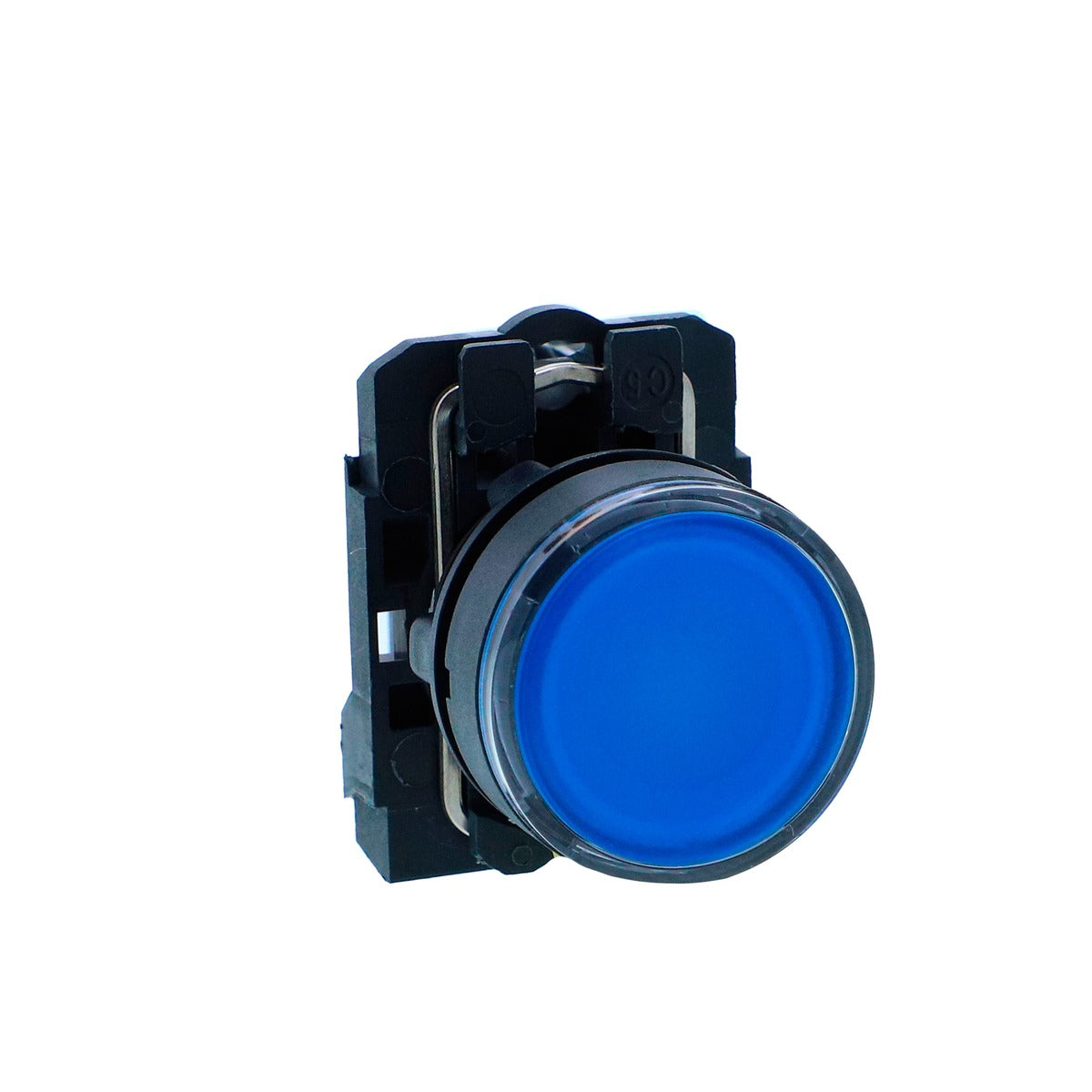

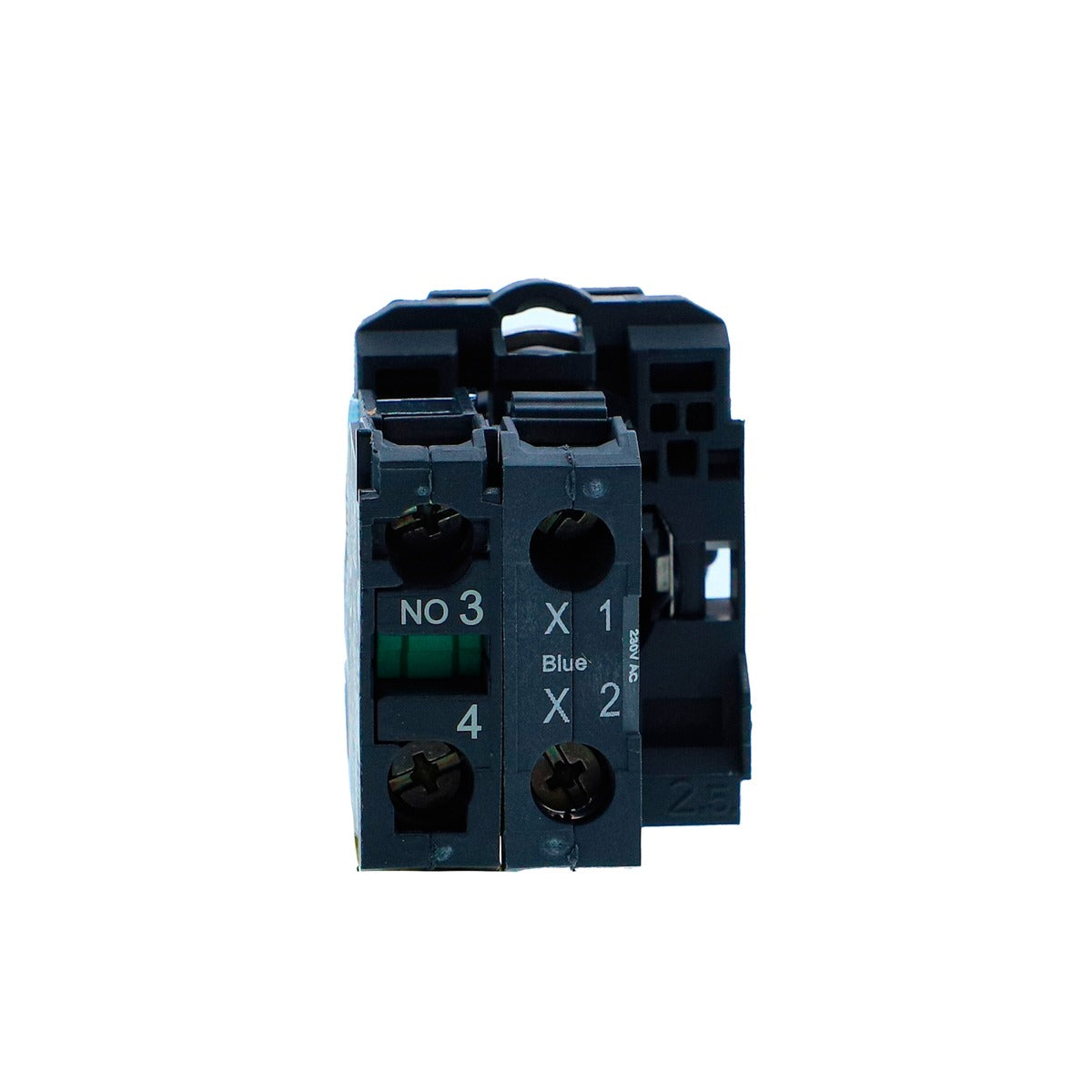

Schneider XB5AW36M1N Illuminated Push Button Blue, 22mm, 230V AC
No reviews
Regular price
Rs. 882.00
Regular price
Rs. 1,354.00
Sale price
Rs. 882.00
Incl. all taxes • Shipping calculated at checkout.
Minimum order value is Rs 1,001. Add other items to reach it.
Price excl. GST
Rs. 747.46
GST @ 18% included in above product price
Couldn't load pickup availability
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Description
XB5AW36M1N is a Schneider Electric Harmony XB5 control unit. Schneider lists it as: Illuminated pushbutton, Harmony XB5N XB7N, plastic, flush, blue, 22mm, spring return, 230V AC, 1 NO.
Cap/operator or lens colour
Blue
Mounting diameter
22.5 mm
Type of operator
spring return
Light block supply
Direct
Technical specifications
| Make | Schneider Electric |
| Model | XB5AW36M1N |
| Range of product | Harmony XB5N/XB7N |
| Product or component type | Illuminated push-button |
| Bezel material | Dark grey plastic |
| Fixing collar material | Plastic |
| Mounting diameter | 22.5 mm |
| Sale per indivisible quantity | 20 |
| Shape of signaling unit head | Round |
| Type of operator | spring return |
| Operator profile | Blue flush, unmarked |
| Operator additional information | With plain lens |
| Contacts type and composition | 1 NO |
| Contact operation | Slow-break |
| Connections - terminals | Screw clamp terminal, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminal, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Light source | LED |
| Bulb base | Integral LED |
| Light block supply | Direct |
| Us rated supply voltage | 220...240 V AC 50/60 Hz |
| Cap/operator or lens colour | Blue |
| Height | 42 mm |
| Width | 30 mm |
| Depth | 57 mm |
| Net weight | 0.056 kg |
| Fixing mode | Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m) |
| Contacts usage | Standard contacts |
| Mechanical durability | 5000000 cycles |
| Contacts material | Silver alloy (Ag/Ni) |
| Ith conventional free air thermal current | 10 A conforming to IEC 60947-5-1 |
| Ui rated insulation voltage | 600 V (pollution degree 3) conforming to IEC 60947-1 |
PDF
XB5AW36M1N product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider XB5AW36M1N
What is the cap/operator or lens colour of the XB5AW36M1N?
Blue, as published by Schneider Electric.
What is the mounting diameter of the XB5AW36M1N?
22.5 mm, as published by Schneider Electric.
What is the type of operator of the XB5AW36M1N?
spring return, as published by Schneider Electric.
Where can I download the XB5AW36M1N datasheet?
You can download the official PDF datasheet here: XB5AW36M1N datasheet (PDF).
Is the XB5AW36M1N genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the XB5AW36M1N in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
