Schneider

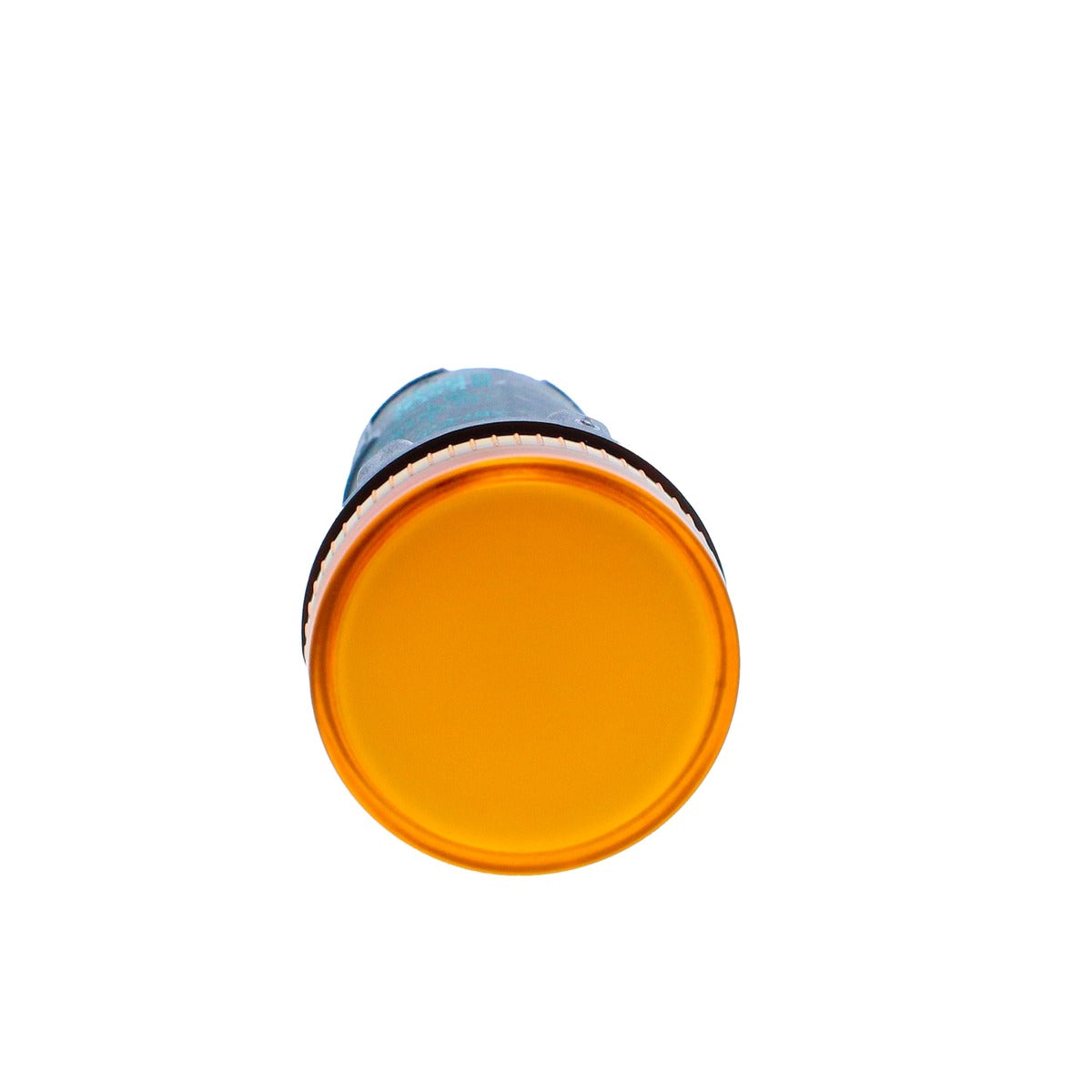

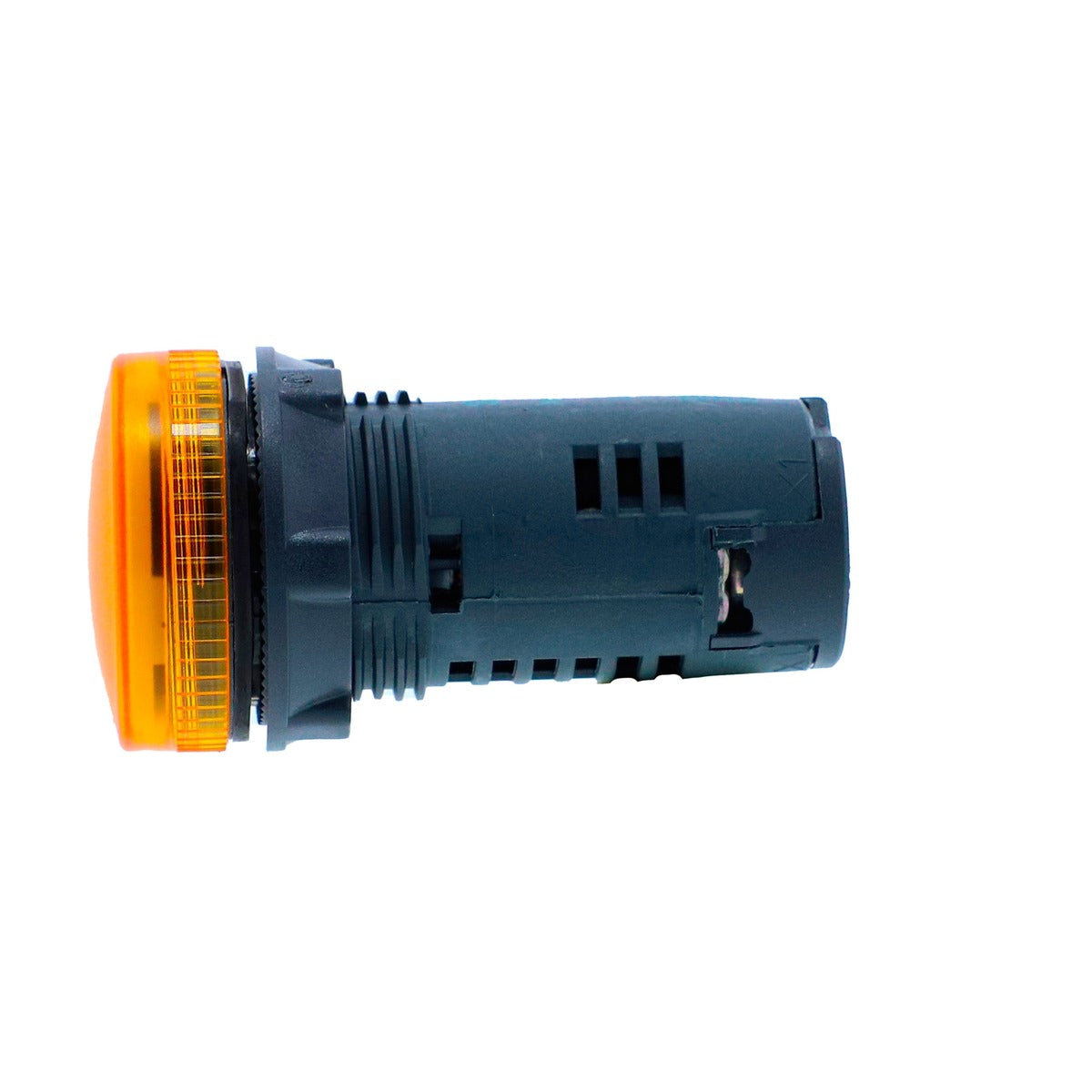

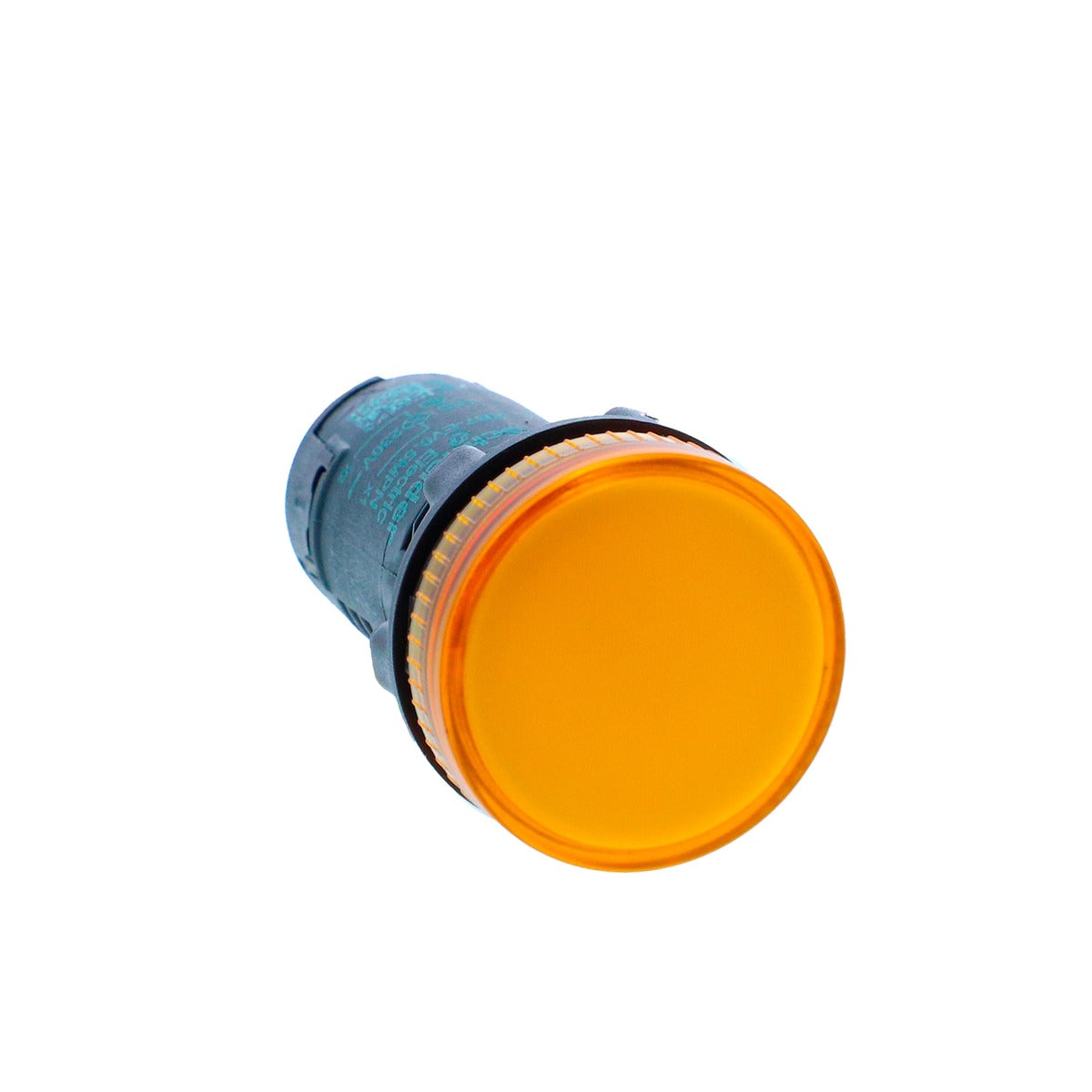

Schneider XB7EV05 Pilot Light Yellow, 22mm LED

₹232

~~₹356~~ ₹232

35% off

Incl. all taxes • Shipping calculated at checkout.

Free delivery on orders above ₹3,000 · Delivery charges

Price excl. GST ₹196.61

GST @ 18% included in above product price

Voltage 230V AC 24V AC/DC

Quantity

4.5/5 · 78 customer reviews GST Invoice PAN India Delivery Fast Dispatch

1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Description

XB7EV05 is a Schneider Electric Harmony XB7 LED pilot light. Schneider lists it as: Monolithic pilot light, Harmony XB5N XB7N, plastic, yellow, 22mm, LED, 230V AC.

Cap/operator or lens colour

Yellow

Us rated supply voltage

220...240 V AC 50/60 Hz

Light source

LED

Mounting diameter

22.5 mm

Technical specifications

Make	Schneider Electric
Model	XB7EV05
Range of product	Harmony XB5N/XB7N
Product or component type	Pilot light
Bezel material	Dark grey plastic
Fixing collar material	Plastic
Mounting diameter	22.5 mm
Sale per indivisible quantity	20
Shape of signaling unit head	Round
Cap/operator or lens colour	Yellow
Operator additional information	With plain lens
Light source	LED
Bulb base	Integral LED
Us rated supply voltage	220...240 V AC 50/60 Hz
Device presentation	Monolithic product
Height	29 mm
Width	29 mm
Depth	54 mm
Net weight	0.02 kg
Fixing center	>= 30 x 40 mm (support panel) metal - thickness: 1…6 mm; >= 30 x 40 mm (support panel) plastic - thickness: 2…6 mm
Fixing mode	Fixing nut: 2…2.4 N.m
Connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Ui rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
Uimp rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Light source colour	Yellow
Supply voltage limits	195…264 V AC
Current consumption	16...20 mA
Service life	100000 h at rated voltage and 25 °C
Ambient air temperature for operation	-25…70 °C
Standards	IEC 60947-1; IEC 60947-5-1; IS 13947-5-1

Available voltage options

Voltage: 230V AC	XB7EV05MPN - Monolithic pilot light, Harmony XB5N XB7N, plastic, yellow, 22mm, LED, 230V AC
Voltage: 24V AC/DC	XB7EV05BPN - Monolithic pilot light, Harmony XB5N XB7N, plastic, yellow, 22mm, LED, 24V AC DC
