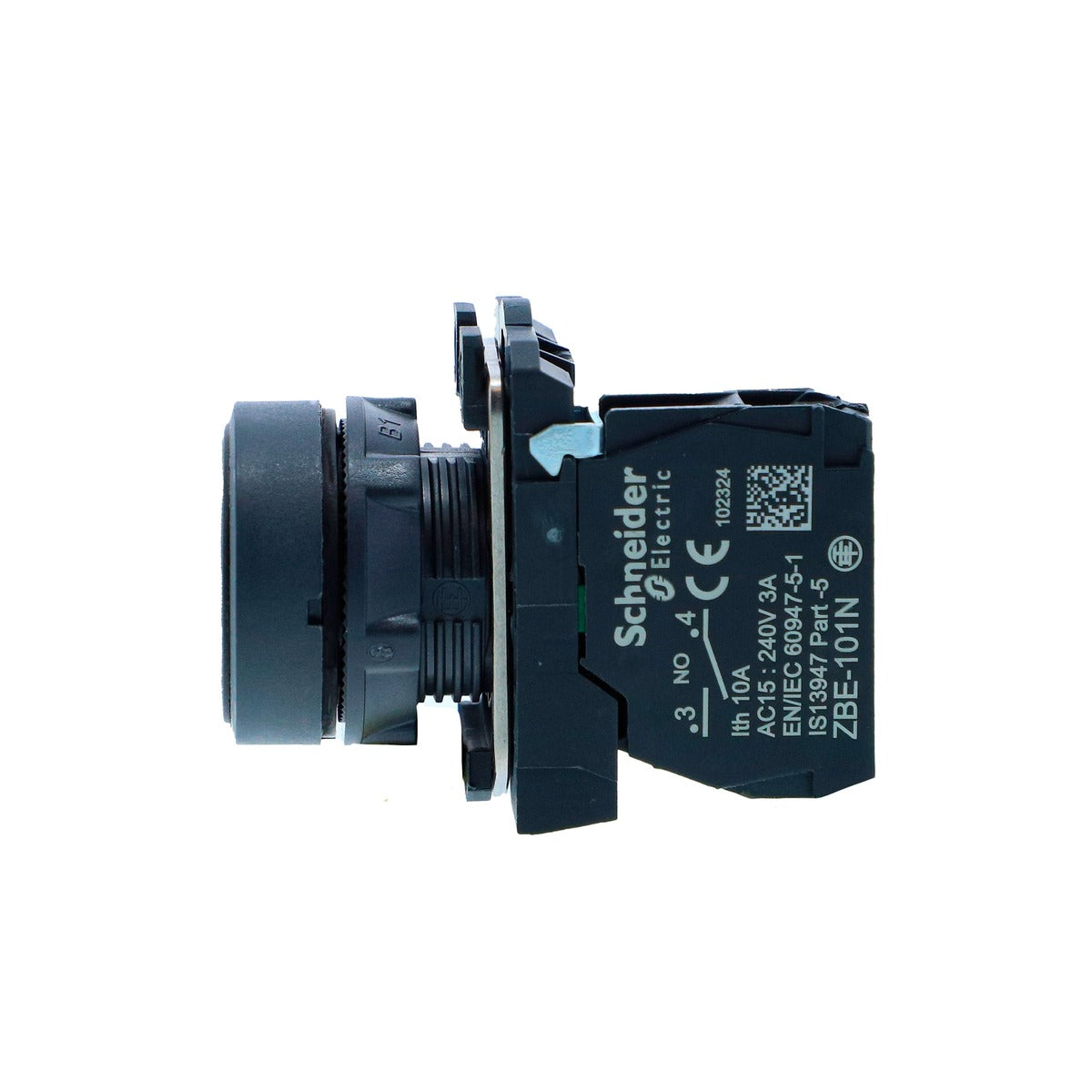

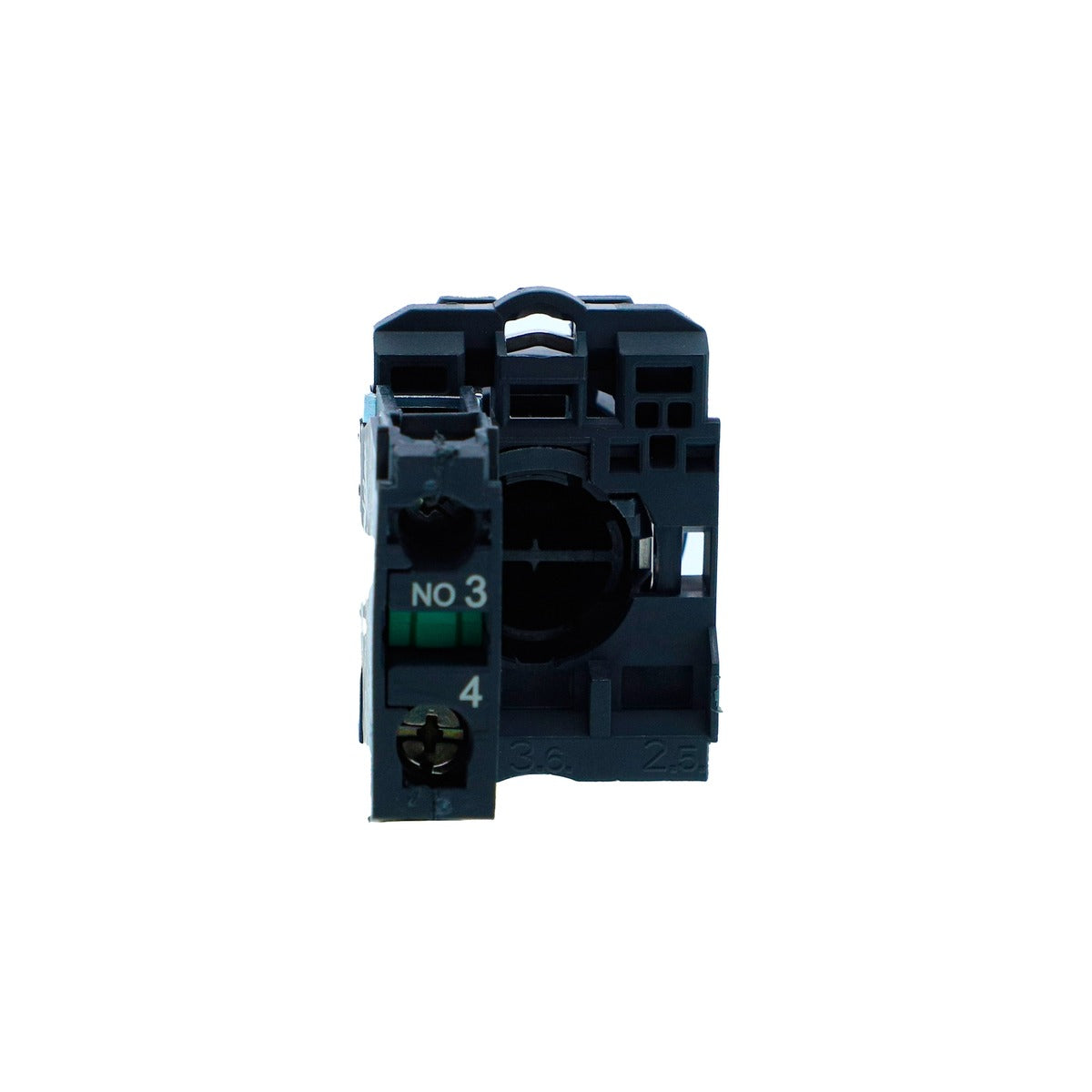

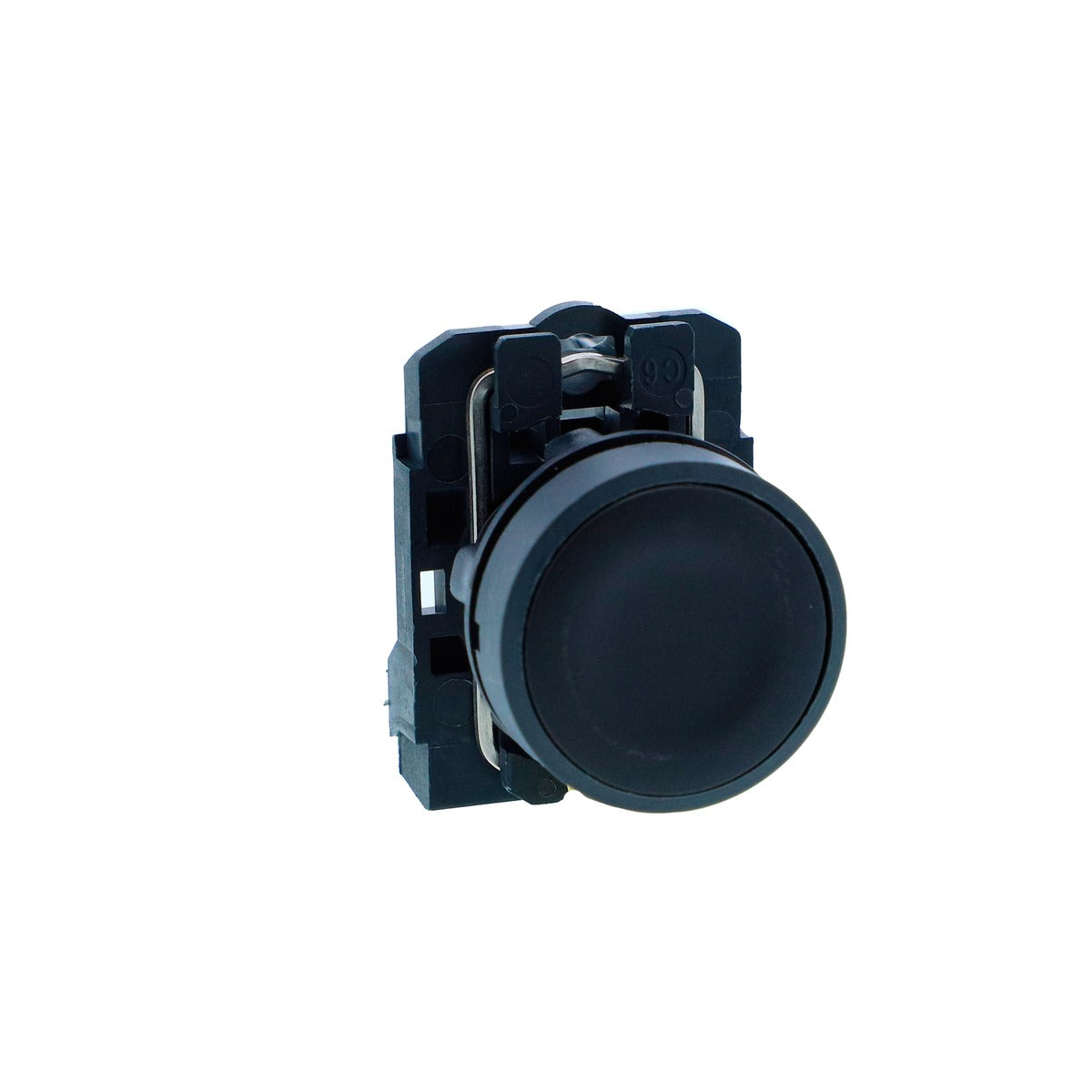

Schneider XB5AA21N Push Button Black, 22mm, Spring Return

Q: What is the mounting diameter of the XB5AA21N?

22.5 mm, as published by Schneider Electric.

Q: What is the type of operator of the XB5AA21N?

spring return, as published by Schneider Electric.

Q: What is the us rated supply voltage of the XB5AA21N?

24 V AC/DC, as published by Schneider Electric.

Q: Where can I download the XB5AA21N datasheet?

You can download the official PDF datasheet here: XB5AA21N datasheet (PDF) on this page.

Q: Is the XB5AA21N genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the XB5AA21N in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

₹164

~~₹252~~ ₹164

35% off

Incl. all taxes • Shipping calculated at checkout.

Free delivery on orders above ₹3,000 · Delivery charges

Price excl. GST ₹138.98

GST @ 18% included in above product price

Quantity

4.5/5 · 78 customer reviews GST Invoice PAN India Delivery Fast Dispatch

1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Description

XB5AA21N is a Schneider Electric Harmony XB5 control unit. Schneider lists it as: Push button, Harmony XB5N XB7N, plastic, flush, black, 22mm, spring return, unmarked, 1 NO.

Mounting diameter

22.5 mm

Type of operator

spring return

Us rated supply voltage

24 V AC/DC

Technical specifications

Make	Schneider Electric
Model	XB5AA21N
Range of product	Harmony XB5N/XB7N
Product or component type	Push-button
Product compatibility	ZB5...N
Bezel material	Dark grey plastic
Head type	Standard
Fixing collar material	Plastic
Mounting diameter	22.5 mm
Sale per indivisible quantity	20
Shape of signaling unit head	Round
Type of operator	spring return
Operator profile	Black flush, unmarked
Contacts type and composition	1 NO
Contact operation	Slow-break
Connections - terminals	Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1; Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1
Us rated supply voltage	24 V AC/DC at 50/60 Hz
Height	42 mm
Width	30 mm
Depth	52 mm
Net weight	0.037 kg
Fixing mode	Fixing nut recommended torque: 2.2 N.m (+/- 0.2 N.m)
Contacts usage	Standard contacts
Mechanical durability	5000000 cycles
Contacts material	Silver alloy (Ag/Ni)
Ith conventional free air thermal current	10 A conforming to IEC 60947-5-1
Ui rated insulation voltage	600 V (pollution degree 3) conforming to IEC 60947-1
Uimp rated impulse withstand voltage	6 kV conforming to IEC 60947-1
Electrical durability	1000000 cycles AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1: appendix C; 1000000 cycles AC-15, 3 A at 120 V, operating...
Compatibility code	XB5
