Schneider LRE35 Overload Relay 30-38A, for LC1E
Regular price
₹3,190
Regular price
₹7,245
Sale price
₹3,190
Incl. all taxes • Shipping calculated at checkout.
Free delivery across India · Delivery charges
Price excl. GST
₹2,703.39
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1E3210, 32 Amp Contactor, coil voltage 220V AC
₹3,970
Schneider LC1E3810, 38 Amp Contactor, coil voltage 220V AC
₹4,631
Schneider Lc1e series 1no 1nc top mounted block Laen11
₹450
Schneider Lc1e series 2no 2nc top mounted block Laen22
₹650
Schneider XB5AA31N Push Button Green, 22mm, Spring Return
₹164
Schneider XB5AA41N Push Button Red, 22mm, Spring Return
₹164
Description

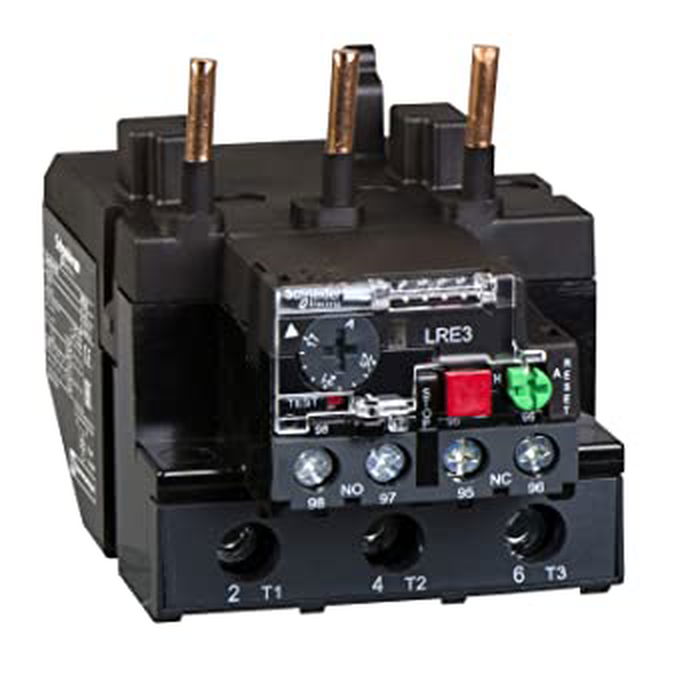

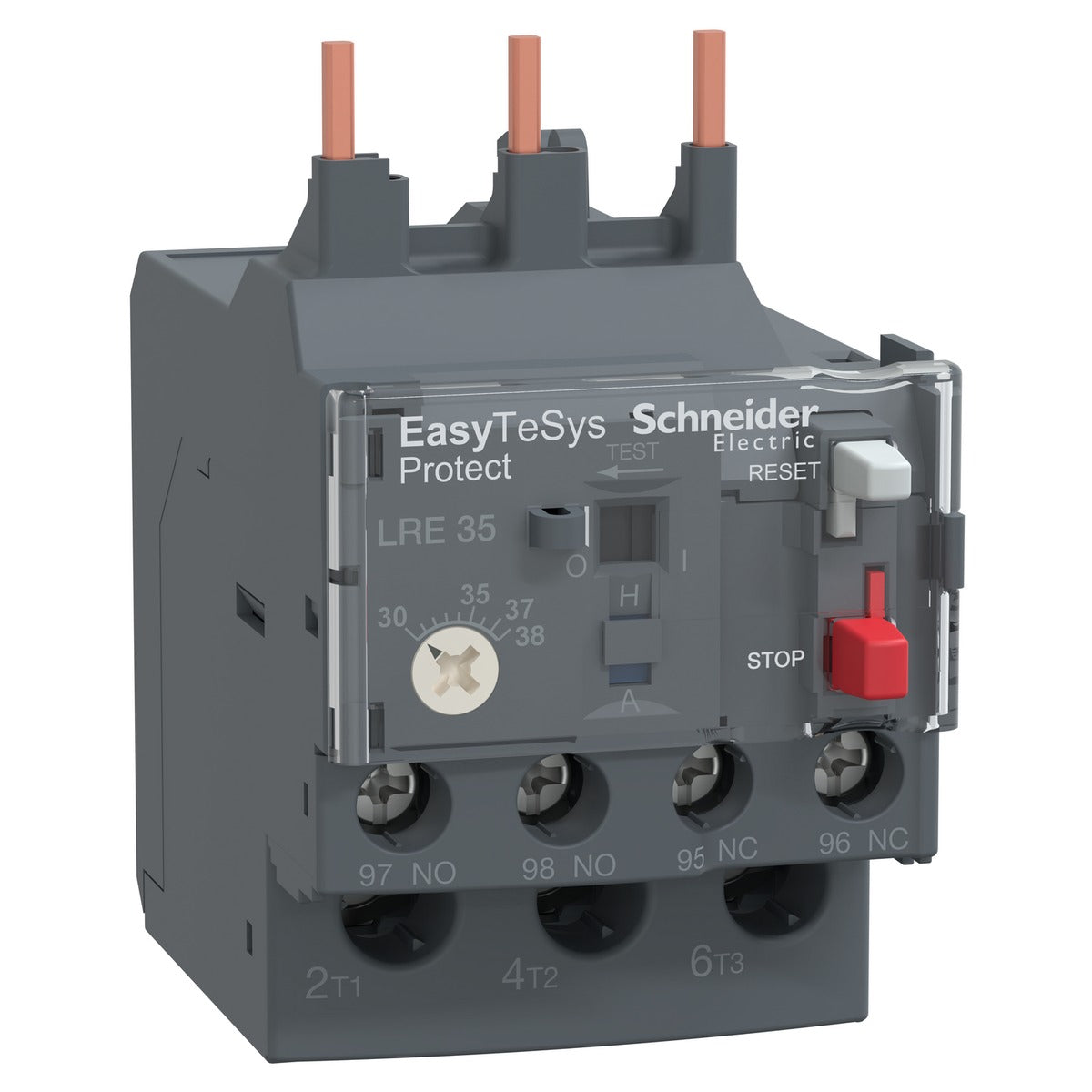

LRE35 is a Schneider Electric thermal overload relay -- thermal overload protection for three-phase motors -- checked against Schneider’s own official product data.
Same range in the other series: LRD35 (for LC1D)
Next ranges in this frame: LRE32 (23-32 A)
Adjustment range
30-38A
Trip class
Class 10A
Reset mode
Manual or automatic (selectable)
Technical specifications
| Make | Schneider Electric |
| Model | LRE35 |
| Adjustment range | 30-38A |
| Trip class | Class 10A |
| Mounting | Direct mounting on a LC1E contactor |
| Reset mode | Manual or automatic (selectable) |
| Standards | IEC 60947-4-1 |
Before you order: Pick the relay whose setting range covers your motor's full-load current, then set the dial to the nameplate current. Not sure? WhatsApp us a photo of the motor nameplate and we will confirm the right relay.
SE
LRE35 on Schneider Electric’s official site
Look up the full datasheet directly from se.com
Frequently asked questions about the Schneider LRE35
What is the adjustment range of the LRE35?
30-38A, per Schneider Electric’s own product data.
What is the trip class of the LRE35?
Class 10A, per Schneider Electric’s own product data.
What is the reset mode of the LRE35?
Manual or automatic (selectable), per Schneider Electric’s own product data.
Where can I check the LRE35 specifications?
You can look it up directly on Schneider Electric’s official site: LRE35 on se.com.
Is the LRE35 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LRE35 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
