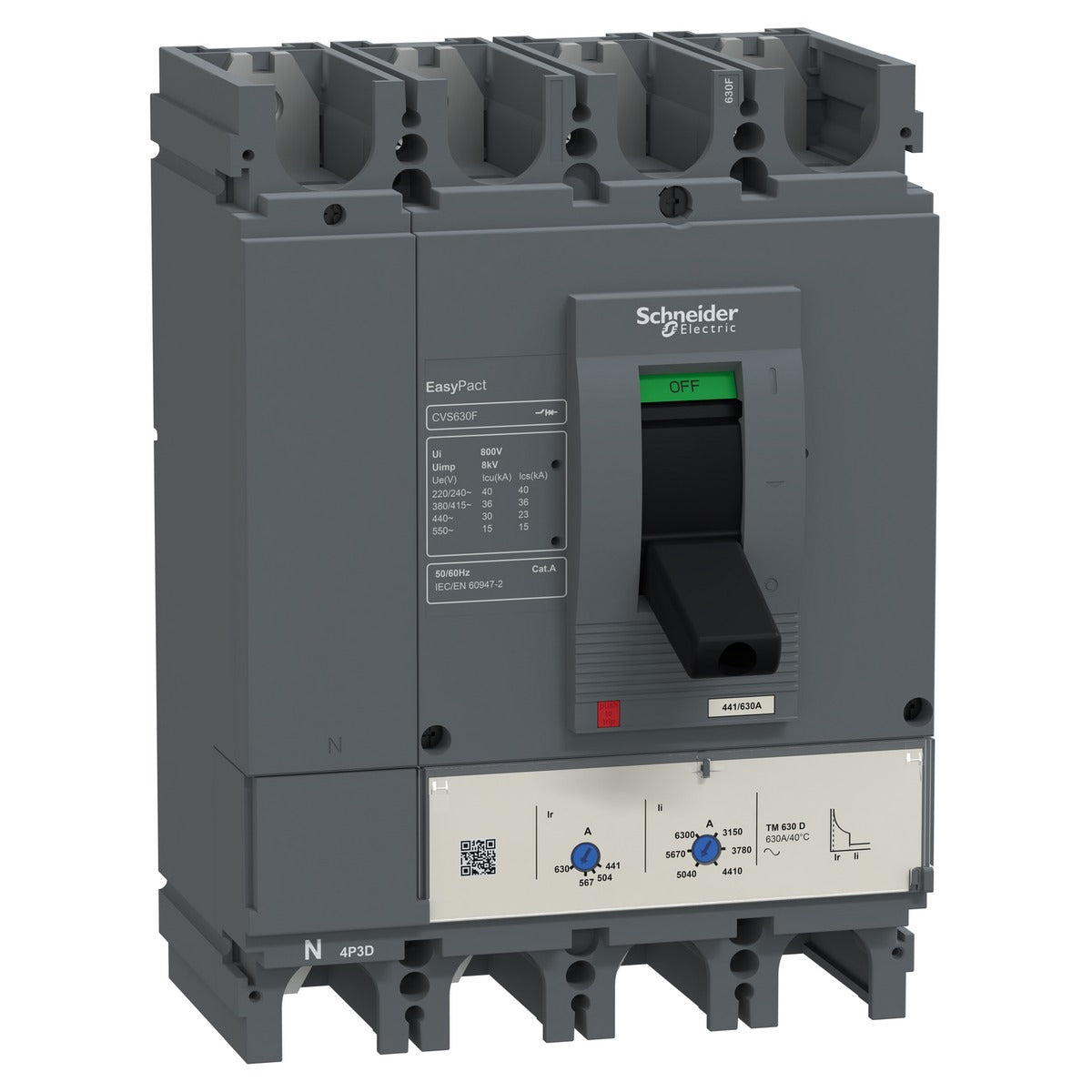

Schneider MCCB 630 amp, 4 pole 36ka, LV563310
Regular price
Rs. 48,575.00
Regular price
Rs. 97,180.00
Sale price
Rs. 48,575.00
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
Rs. 41,165.25
GST @ 18% included in above product price
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1D09, 9Amp Contactor
Rs. 1,421
Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac
Rs. 1,400
Schneider 20 ampere single pole mcb, c curve
Rs. 220
Schneider 40 amp, double pole mcb, C curve
Rs. 931
Description
LV563310 is a Schneider Electric EasyPact CVS moulded case circuit breaker (MCCB). Schneider lists it as: Circuit breaker, EasyPact CVS630F, 36kA at 415VAC, 630A, TMD trip unit, 4P 3d.
In rated current
630 A
Poles description
4P
Trip unit technology
Thermal-magnetic
Breaking capacity (Icu, 415V)
36 kA
Technical specifications
| Make | Schneider Electric |
| Model | LV563310 |
| Range of product | EasyPact CVS400...630 |
| Product name | EasyPact CVS |
| Product or component type | Circuit breaker |
| Device application | Distribution |
| Poles description | 4P |
| Protected poles description | 3D |
| Earth leakage protection (Vigi add on) | Without |
| In rated current | 630 A at 40 °C |
| Network type | AC |
| Utilisation category | Category A |
| Icu Breaking capacity | 40 kA Icu at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 36 kA Icu at 380/415 V AC 50/60 Hz conforming to IEC 60947-2; 30 kA Icu at 440 V AC 50/60 Hz conforming to... |
| Trip unit name | TM-D |
| Trip unit technology | Thermal-magnetic |
| Trip unit rating | 630 A at 40 °C |
| Protection type | Short-circuit protection (magnetic); Overload protection (thermal) |
| Uimp rated impulse withstand voltage | 8 kV conforming to EN/IEC 60947-2 |
| Network frequency | 50/60 Hz |
| Breaking capacity code | F |
| Ics rated service breaking capacity | 40 kA at 220/240 V AC 50/60 Hz conforming to IEC 60947-2; 36 kA at 380/415 V AC 50/60 Hz conforming to IEC 60947-2 |
| Neutral position | Left |
| Mechanical durability | 15000 cycles |
| Electrical durability | 4000 cycles 415 V In conforming to IEC 60947-2 |
| Control type | Toggle |
| Thermal protection adjustment range | 441…630 A |
| Neutral protection setting | No protection (3D) |
| Long time pick-up adjustment type Ir | Adjustable |
| Long time pick-up adjustment range | 0.7...1 x In |
| Long time delay adjustment type | Fixed |
PDF
LV563310 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider LV563310
What is the in rated current of the LV563310?
630 A, as published by Schneider Electric.
What is the poles description of the LV563310?
4P, as published by Schneider Electric.
What is the trip unit technology of the LV563310?
Thermal-magnetic, as published by Schneider Electric.
Where can I download the LV563310 datasheet?
You can download the official PDF datasheet here: LV563310 datasheet (PDF).
Is the LV563310 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LV563310 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
