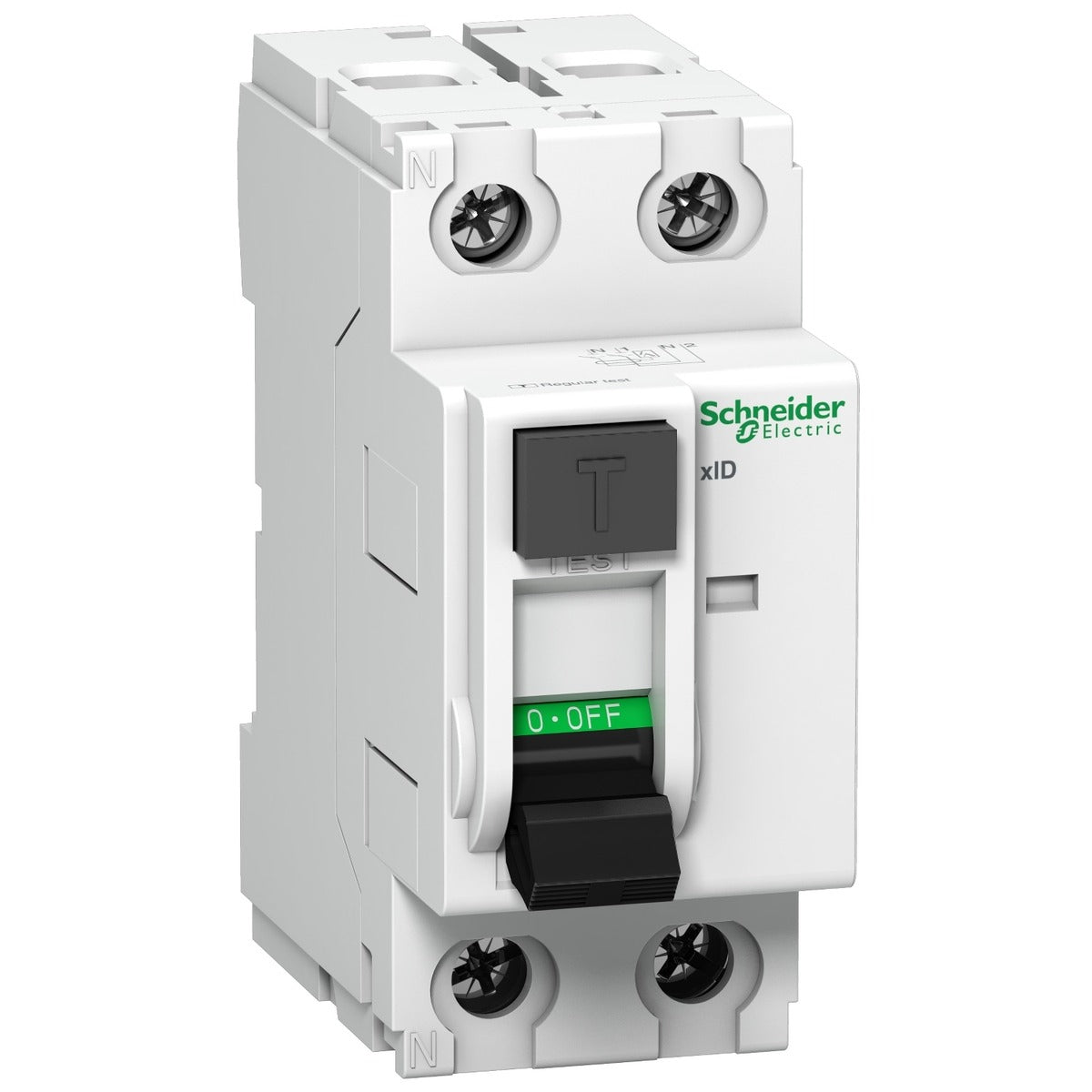

Schneider RCCB (ELCB) 25 Amp, 2 Pole, 30mA, A9N16201
No reviews
Regular price
₹2,958
Regular price
₹6,964
Sale price
₹2,958
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹2,506.78
GST @ 18% included in above product price
Couldn't load pickup availability
GST Invoice
PAN India Delivery
Fast Dispatch
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Description
A9N16201 is a Schneider Electric residual current circuit breaker (RCCB / ELCB). Schneider lists it as: Acti 9 xID residual circuit breaker - 25 A - 2P - 30mA class AC instantaneous.
In rated current
25 A
Poles description
2P
Earth-leakage sensitivity
30 mA
Earth-leakage protection class
Type AC
Technical specifications
| Make | Schneider Electric |
| Model | A9N16201 |
| Product name | Acti9 xID |
| Product or component type | Residual current circuit breaker (RCCB) |
| Poles description | 2P |
| Neutral position | Left |
| In rated current | 25 A |
| Network type | AC |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| Rated breaking and making capacity | 500 A conforming to EN/IEC 61008-1 |
| Suitability for isolation | Yes |
| Network frequency | 50 Hz |
| Ue rated operational voltage | 230...240 V AC 50 Hz |
| Ui rated insulation voltage | 500 V AC 50 Hz |
| Uimp rated impulse withstand voltage | 6 kV |
| Contact position indicator | Yes |
| Control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Connection pitch | 18 mm between phases |
| Height | 81 mm |
| Width | 36 mm |
| Depth | 75 mm |
| Net weight | 210 g |
| Colour | White |
| Standards | IEC 61008-2-1; EN 61008-2-1; EN/IEC 61008-1 |
| Product certifications | ISI |
| IP degree of protection | IP20 |
PDF
A9N16201 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider A9N16201
What is the in rated current of the A9N16201?
25 A, as published by Schneider Electric.
What is the poles description of the A9N16201?
2P, as published by Schneider Electric.
What is the earth-leakage sensitivity of the A9N16201?
30 mA, as published by Schneider Electric.
Where can I download the A9N16201 datasheet?
You can download the official PDF datasheet here: A9N16201 datasheet (PDF).
Is the A9N16201 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the A9N16201 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
