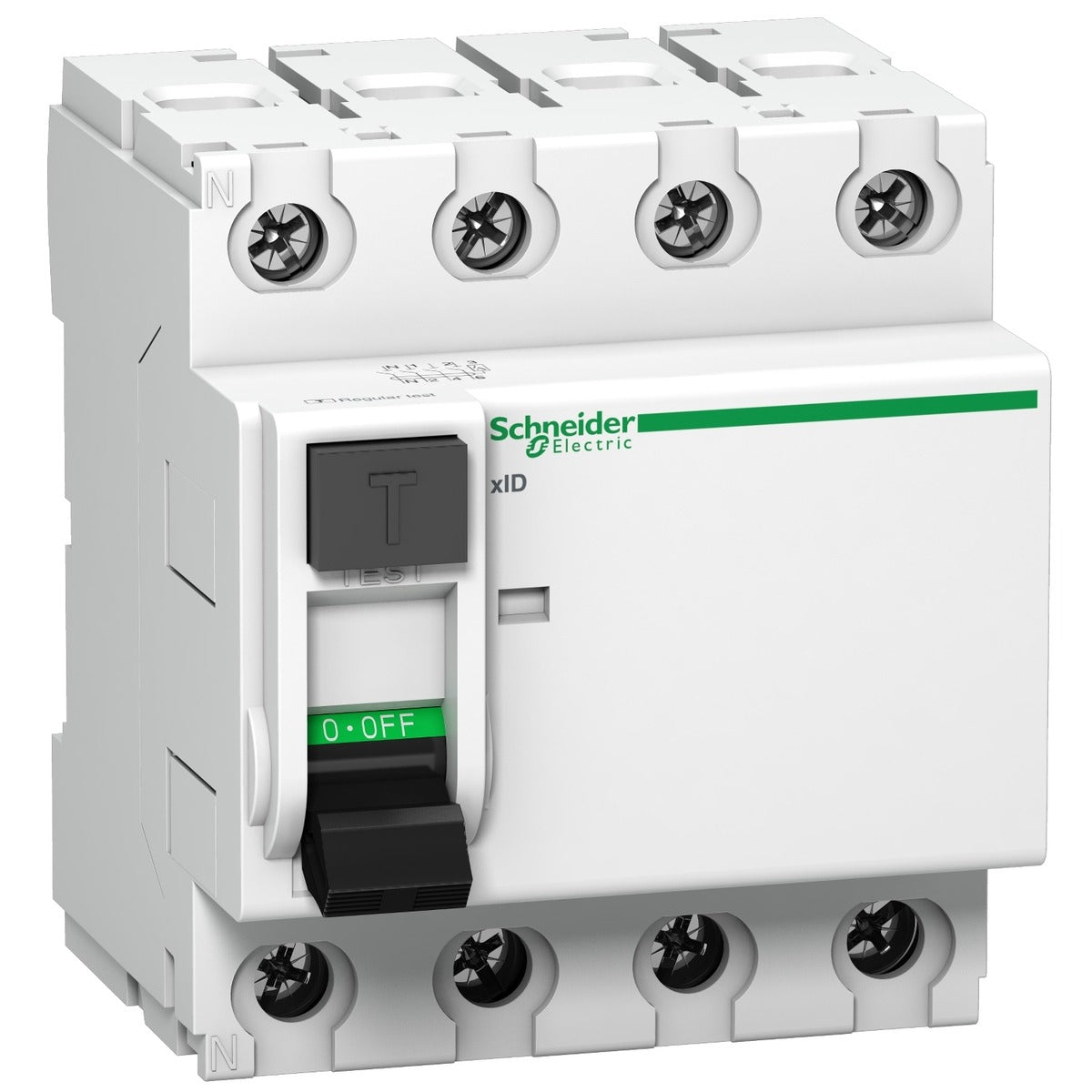

Schneider RCCB (ELCB) 63 amp, 4 pole, 100mA, A9N16259

Rs. 5,242.00

~~Rs. 12,340.00~~ Rs. 5,242.00

58% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 4,442.37

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Description

A9N16259 is a Schneider Electric residual current circuit breaker (RCCB / ELCB). Schneider lists it as: Acti 9 xID residual circuit breaker - 63 A - 4P - 100mA class AC instantaneous.

In rated current

63 A

Poles description

4P

Earth-leakage sensitivity

100 mA

Earth-leakage protection class

Type AC

Technical specifications

Make	Schneider Electric
Model	A9N16259
Product name	Acti9 xID
Product or component type	Residual current circuit breaker (RCCB)
Poles description	4P
Neutral position	Left
In rated current	63 A
Network type	AC
Earth-leakage sensitivity	100 mA
Earth-leakage protection time delay	Instantaneous
Earth-leakage protection class	Type AC
Rated breaking and making capacity	630 A conforming to EN/IEC 61008-1
Suitability for isolation	Yes
Network frequency	50 Hz
Ue rated operational voltage	400...415 V AC 50 Hz
Ui rated insulation voltage	500 V AC 50 Hz
Uimp rated impulse withstand voltage	6 kV
Contact position indicator	Yes
Control type	Toggle
Mounting mode	Clip-on
Mounting support	DIN rail
Connection pitch	18 mm between phases
Height	81 mm
Width	72 mm
Depth	75 mm
Net weight	370 g
Colour	White
Standards	EN 61008-2-1; EN/IEC 61008-1; IEC 61008-2-1
Product certifications	ISI
IP degree of protection	IP20
