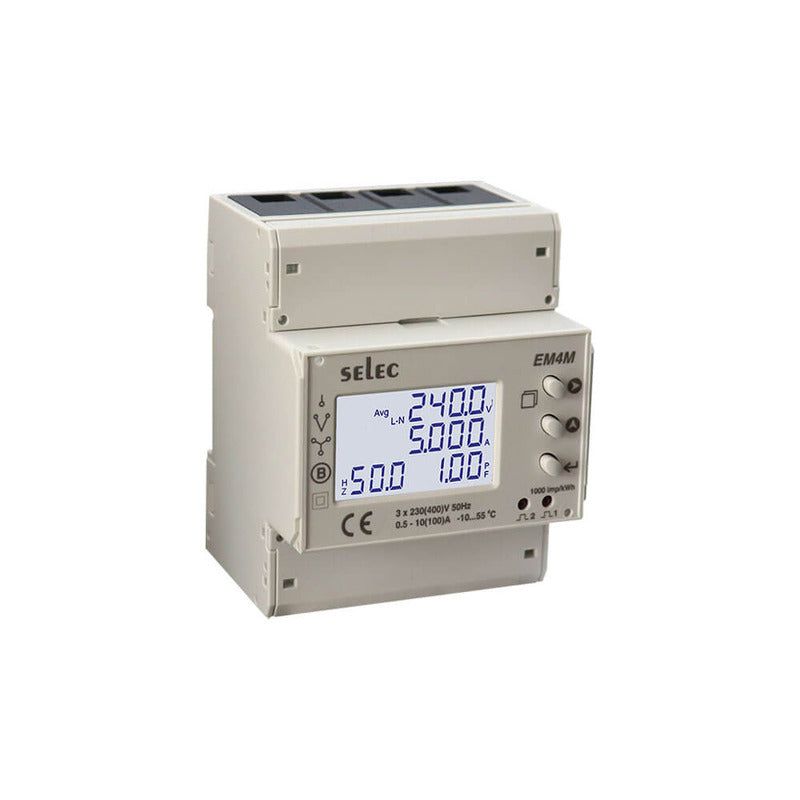

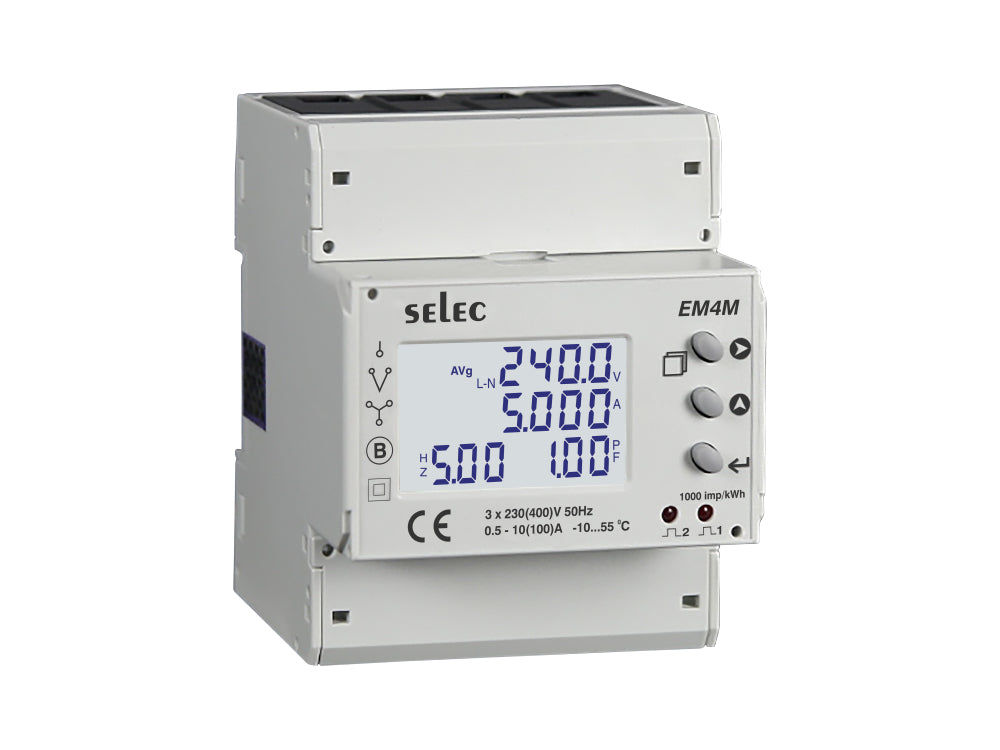

Selec EM4M-3P-C-100A, Digital Energy Meter, three phase DIN mounted
Regular price
₹5,636
Regular price
₹9,364
Sale price
₹5,636
Incl. GST
Free delivery across India · 2–3 days to Delhi NCR, UP and Haryana, 5–6 days elsewhere · Details
Price excl. GST
₹4,776.27
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Selec MFM384-C-CE, 96x96 Digital Multi function meter LCD
₹4,985
Selec MFM383A-C-CE, 96x96 Digital Multi function meter LCD, with communication
₹3,988
Selec MFM383A, 96x96 Digital Multi function meter LCD
₹3,390
Selec MFM376-CE, 96x96 Digital Multi function meter, LED
₹2,642
Selec EM2M-1P-C-100A, Digital Energy Meter, Single phase DIN mounted
₹2,238
Description
EM4M-3P-C-100A, a digital panel meter from Selec. 3Ø Direct 100A kWh meter, Self powered, 85 to 285V AC (L-N), 154 to 494V AC (L-L) with RS485 communication.
Type of Output
Two Pulse Outputs
Display Type
LCD with Backlight
Input Current Range
Ib: 10A (Min - 0.5A, Max - 100A)
Size
70 x 90mm
Technical specifications
| Make | Selec |
| Model | EM4M-3P-C-100A |
| Display Type | LCD with Backlight |
| Display Configuration | 1 Row of 4 Digits, 2 Rows of 7 Digits |
| Electrical Connection | 1Ø - 2W, 3Ø - 3W, 3Ø - 4W |
| Type of Output | Two Pulse Outputs |
| Communication Protocol | RS485 and MODBUS RTU |
| Power Consumption | 4VA Max |
| Input Current Range | Ib: 10A (Min - 0.5A, Max - 100A) |
| Mounting Type | Din Rail |
| Size | 70 x 90mm |
| Certification | CE |
Notable features
- Supply Voltage: 85 to 285V AC (L-N), 120 to 494V AC(L-L),45 to 65Hz (Self-Powered)
More about the EM4M-3P-C-100A
3Ø Direct 100A kWh meter, Self powered, 85 to 285V AC (L-N), 154 to 494V AC (L-L) with RS485 communication
Features: D.G Sensing, Self Powered, 100A Direct Connection, Multifunction parameter monitoring, Bi - directional Import / Export Energy measurement, Two Pulse Outputs, Power (Active / Reactive/Apparent), Max-Demand Power
Frequently asked questions about the Selec EM4M-3P-C-100A
What is the EM4M-3P-C-100A?
3Ø Direct 100A kWh meter, Self powered, 85 to 285V AC (L-N), 154 to 494V AC (L-L) with RS485 communication. It is a digital panel meter made by Selec.
What is the type of output of the EM4M-3P-C-100A?
The EM4M-3P-C-100A is listed with type of output of Two Pulse Outputs.
What is the display type of the EM4M-3P-C-100A?
The EM4M-3P-C-100A is listed with display type of LCD with Backlight.
What is the input current range of the EM4M-3P-C-100A?
The EM4M-3P-C-100A is listed with input current range of Ib: 10A (Min - 0.5A, Max - 100A).
Where can I download the EM4M-3P-C-100A datasheet?
You can download it from the datasheet section on this page: EM4M-3P-C-100A datasheet.
Is the EM4M-3P-C-100A genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the EM4M-3P-C-100A in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
