SELEC

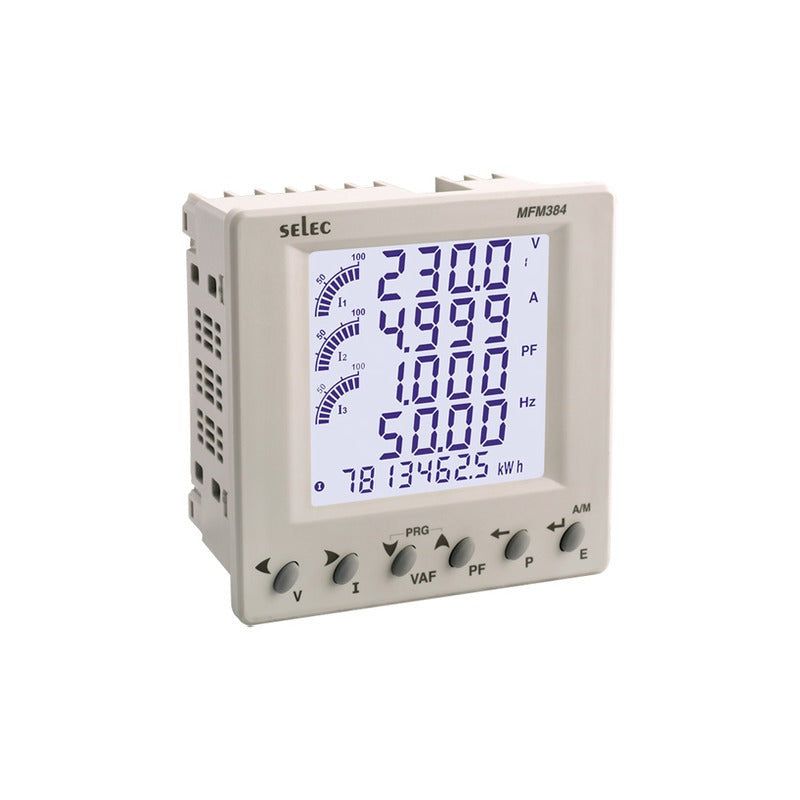

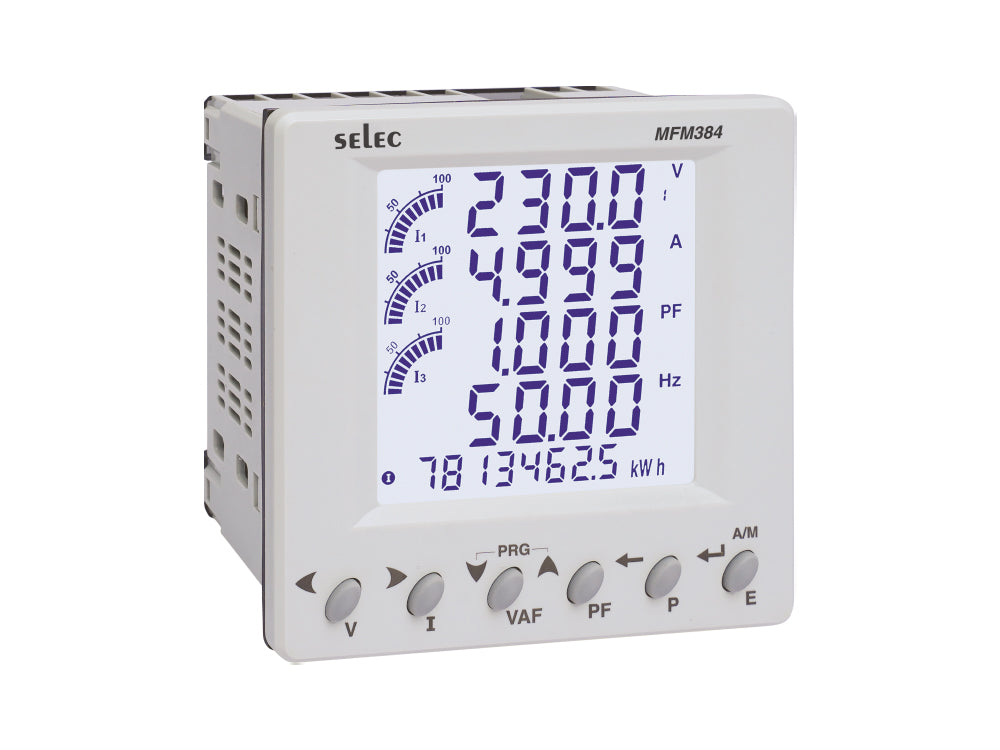

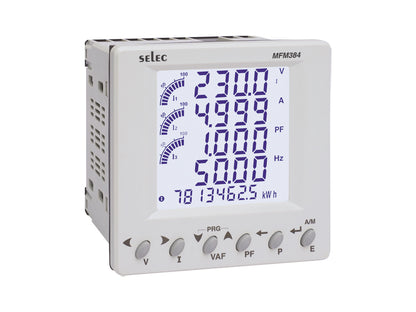

SELEC MFM384-C-CE , 96*96 Digital Multi function meter LCD
SELEC MFM384-C-CE , 96*96 Digital Multi function meter LCD
No reviews
Regular price
Rs. 4,259.00
Regular price
Rs. 7,680.00
Sale price
Rs. 4,259.00
Price (Exclusive of GST): Rs. 3,609.32
Unit price / perTaxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
LCD multifunction meter with RS485 communication, %THD up to 31st level, 85 to 300V AC
BRIEF SPECIFICATIONS
| Display Type | LCD with Backlight, Bargraph Representation for Current |
| Display Configuration | 4 Rows of 4 Digits, 1 Row of 8 Digits |
| Electrical Connection | 3Ø - 3W, 3Ø - 4W, 2Ø - 3W, 1Ø - 2W |
| Type of Output | Pulse Output |
| Features | %THD upto 31st Level, Max/Min Demand (Power), Max Demand Current, Phase Sequence Detection |
| Communication Protocol | RS485 and MODBUS RTU |
| CT Primary | 1 / 5A to 10kA (Programmable for Any Value) |
| CT Secondary | 1 / 5A ( Programmable ) |
| PT Primary | 100V to 500kV (Programmable for Any Value) |
| PT Secondary | 100V to 500V (Programmable for Any Value) |
| Rated Input Current | Nominal 5A AC (Min - 11mA Max - 6A) |
| Supply Voltage | 85 to 300V AC (45/65Hz) |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
| Certification | CE RoHS, UL & MID |
