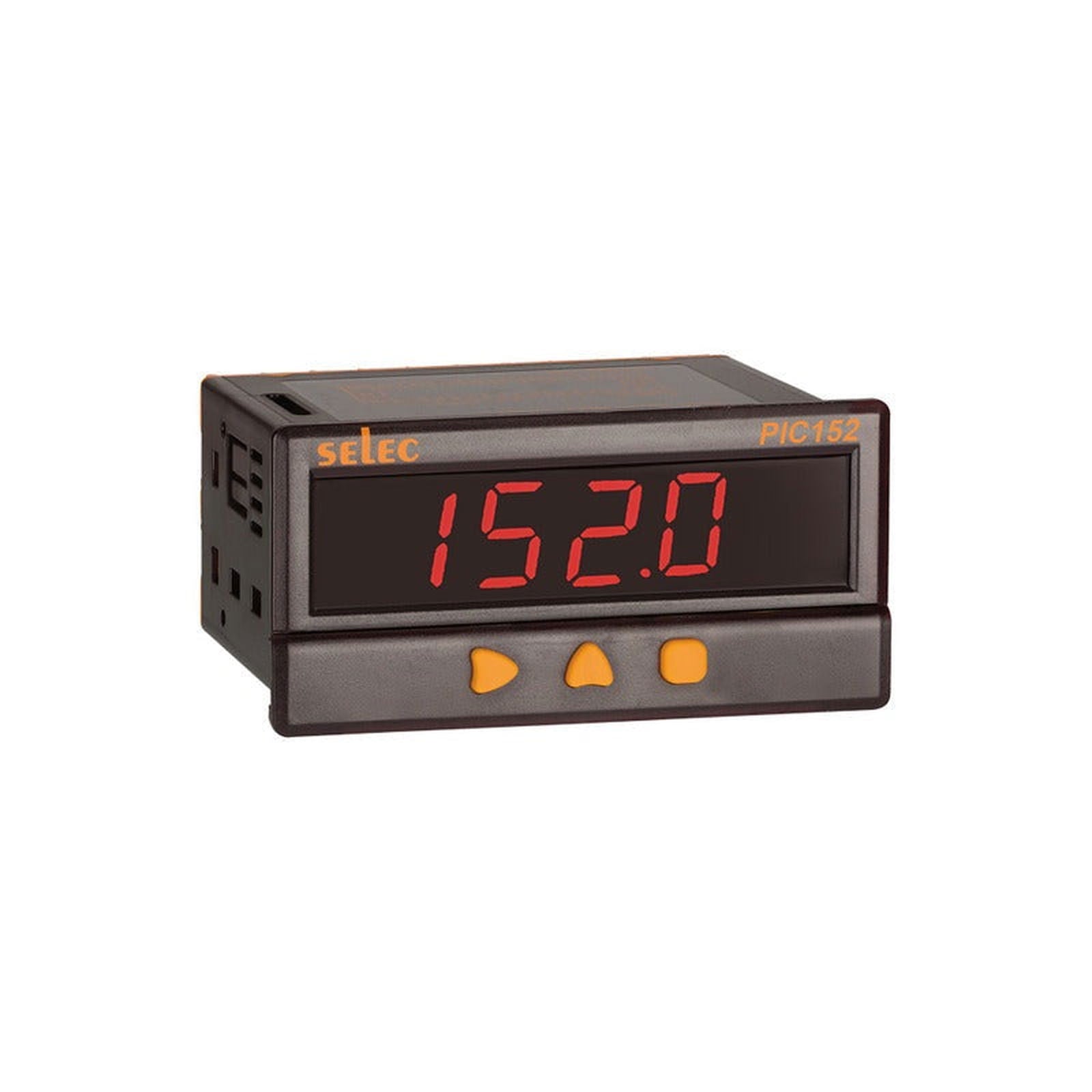

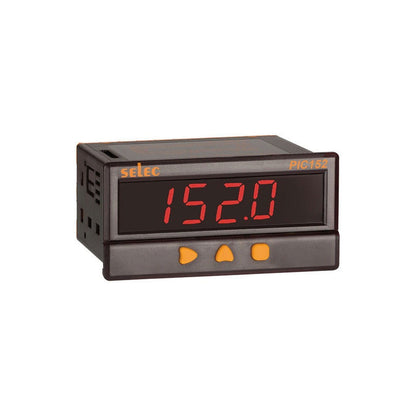

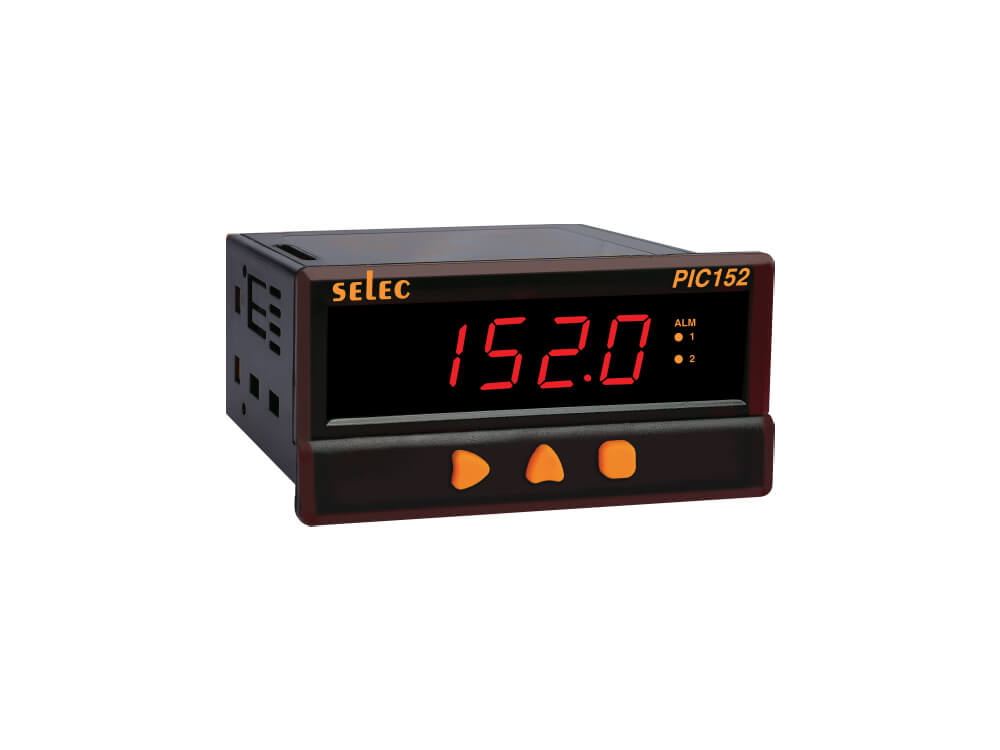

SELEC PIC152A-VI, 48x96 process controller

SELEC PIC152A-VI, 48x96 process controller

Regular price Rs. 2,733.00
Regular price Rs. 5,263.00 Sale price Rs. 2,733.00

Price (Exclusive of GST): Rs. 2,316.10

Sale Sold out
Taxes included. Shipping calculated at checkout.

4 Digit LED display Process indicator with universal input & retransmission output, 2x5A alarm relay output, 48 x 96mm, 90 to 270V AC / DC Supply

BRIEF SPECIFICATIONS

Display Type 7 Segment LED single display
Display Configuration 4 digits
Type of Input Thermocouple (J,K,T,R,S) / RTD (PT100) Single inputs (DC): -5 to 56mV, 0 to 10V, 0/4 to 20mA
Resolution TC/RTD: 1/0.1°, analog input 1/0.1/0.01/0.001
Accuracy For TC Inputs: 0.25% of F.S ±1º, For R & S inputs: 0.5% of F.S±2º (20mins of warm up time) For RTD inputs: 0.1% of F.S ±1º, Cold junction accuracy ± 5ºC, Signal input: ±0.5% of F.S, ±1º digit
Retransmission 0-20mA DC / 4-20mA DC / 0-10V DC / 0-5V DC
Communication RS485 MODBUS RTU protocol
Alarm Modes high,low,band,fail output,& fault diagnosis
Sensor Supply 24V DC, 30mA
Features High & Low alarm
Sensor Supply 90 to 270V AC/DC, 24V DC optional
Size 48 x 96mm
Mounting Type Panel Mount
