SELEC

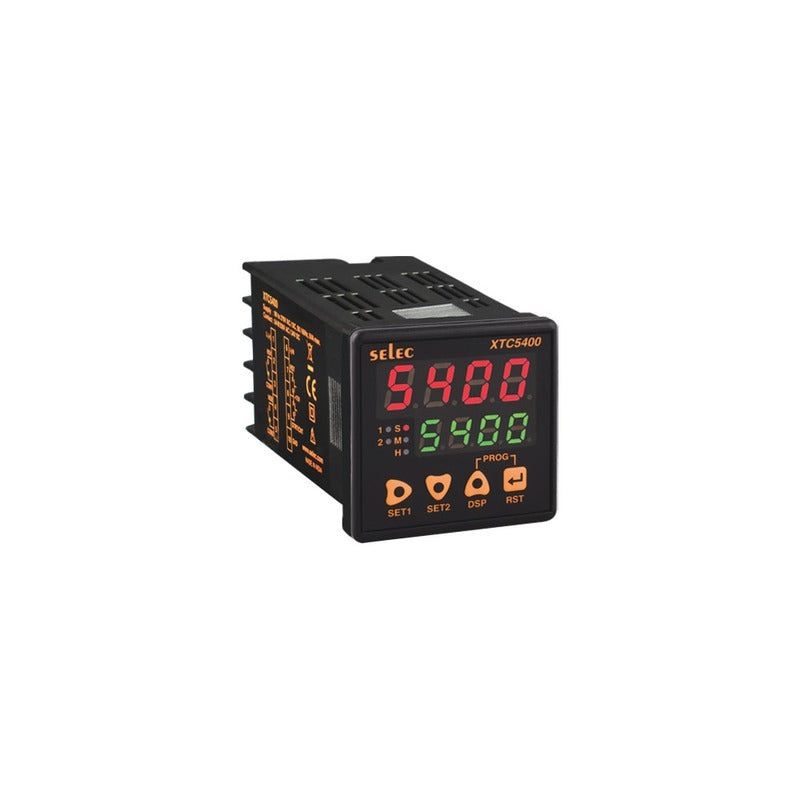

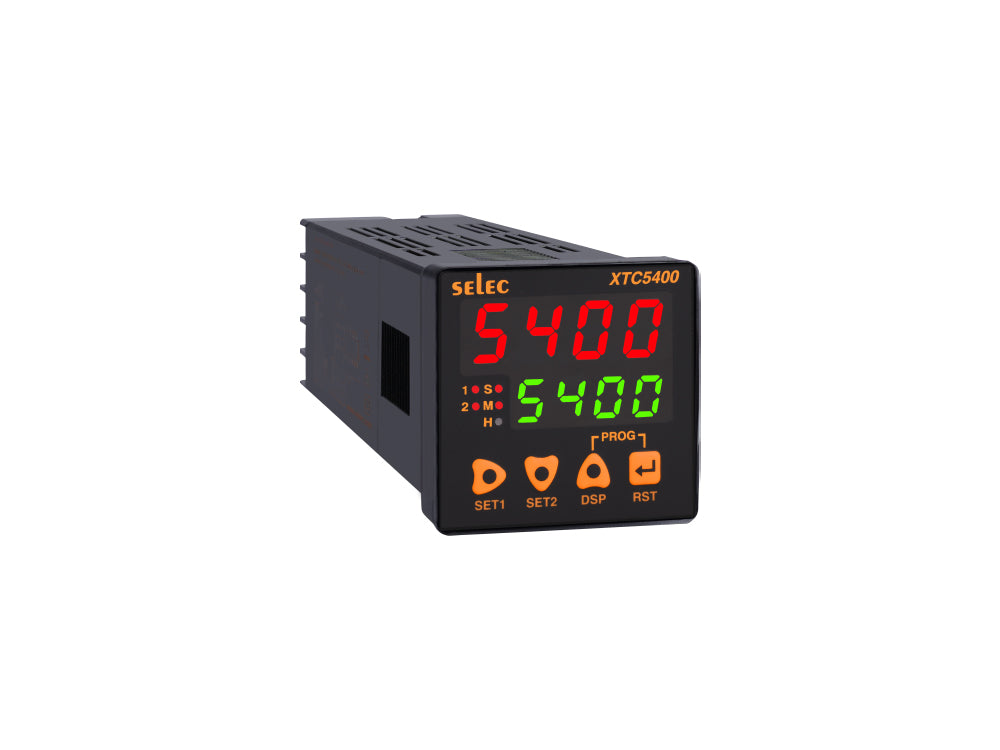

SELEC XTC5400, Digital Prigrammable Timer & Counter 48*48
No reviews
Regular price
Rs. 3,340.00
Regular price
Rs. 5,634.00
Sale price
Rs. 3,340.00
Incl. all taxes • Shipping calculated at checkout.
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
Price excl. GST
Rs. 2,830.51
GST @ 18% included in above product price
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Couldn't load pickup availability
Description
XTC5400, a digital counter from Selec. 4 Digit dual display Multifunctional and Multirange Timer+counter, 2 C/O SPDT relay output, memory retention, 48 x 48mm, 90 to 270V AC/DC.
Supply Voltage
90 to 270V AC / DC, 24V AC/DC
Display Type
LED
Relay Contact
2 C/O SPST
Size
48 x 48mm
Technical specifications
| Make | Selec |
| Model | XTC5400 |
| Display Type | LED |
| Display Configuration | 4 + 4 Digits |
| Relay Contact | 2 C/O SPST |
| Reset | Front, Remote, Power Interruption |
| Counting Direction | Timer: Down, Counter: Up / Down |
| Features | Memory Retention, Batch Counting |
| Sensor type | NPN, PNP, Potential Free Contacts |
| Supply Voltage | 90 to 270V AC / DC, 24V AC/DC |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
| Certification | CE & UL |
Notable features
- Range: 99.99 / 999.9 / 9999sec, 99.59 min:sec, 999.9 / 9999min, 99:59 hr:min,999.9 / 9999hr Counter:-999 to 9999 Counts
- Operating Modes: Timer: ON Delay / Interval / Cyclic (ON first) / Cyclic (Off first) / Batch Counter:ON Delay / Interval / Auto Reset,Time Pulse Repeat , Batch
More about the XTC5400
4 Digit dual display Multifunctional and Multirange Timer+counter, 2 C/O SPDT relay output, memory retention, 48 x 48mm, 90 to 270V AC/DC
Frequently asked questions about the Selec XTC5400
What is the XTC5400?
4 Digit dual display Multifunctional and Multirange Timer+counter, 2 C/O SPDT relay output, memory retention, 48 x 48mm, 90 to 270V AC/DC. It is a digital counter made by Selec.
What is the supply voltage of the XTC5400?
The XTC5400 is listed with supply voltage of 90 to 270V AC / DC, 24V AC/DC.
What is the display type of the XTC5400?
The XTC5400 is listed with display type of LED.
What is the relay contact of the XTC5400?
The XTC5400 is listed with relay contact of 2 C/O SPST.
Where can I download the XTC5400 datasheet?
You can download it from the datasheet section on this page: XTC5400 datasheet.
