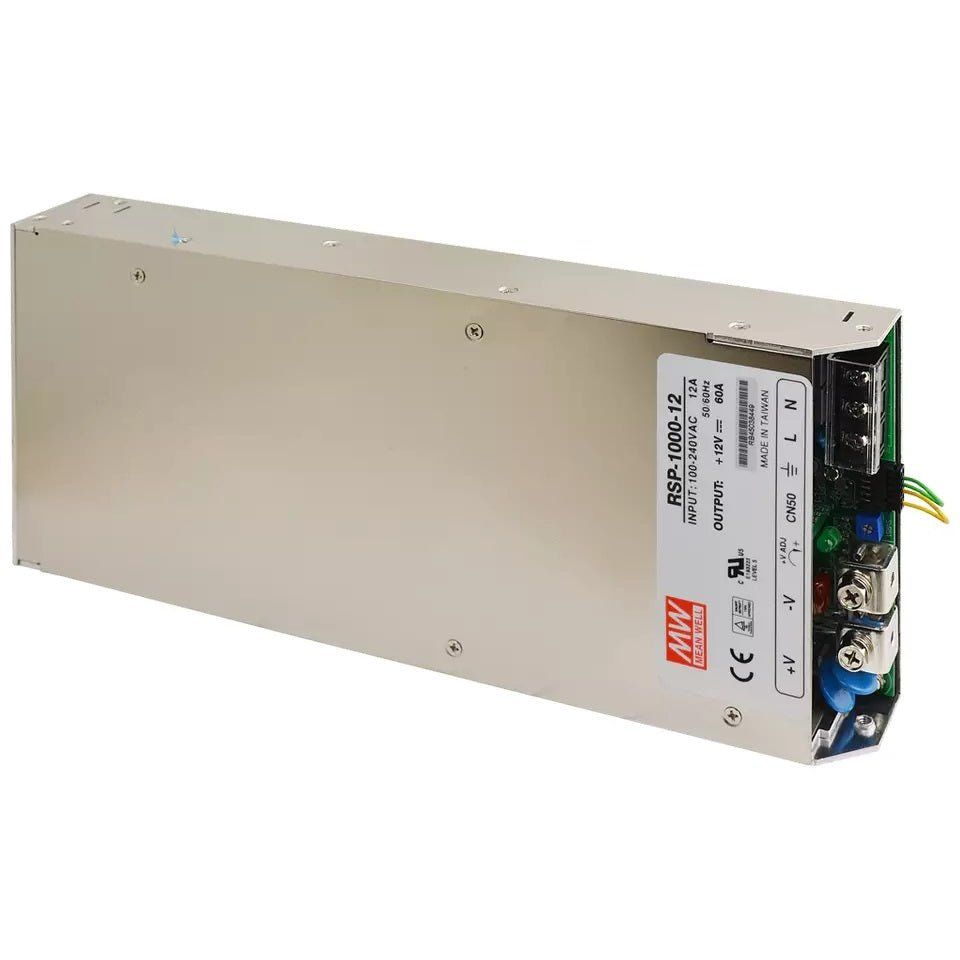

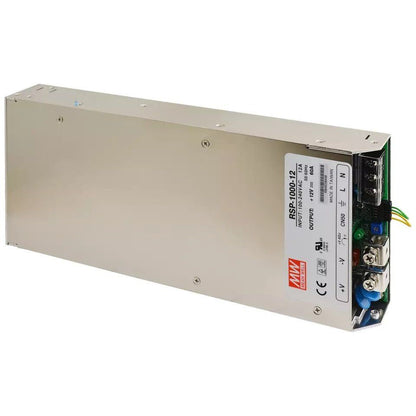

Mean Well RSP-1000-12 12V 60A 720W Enclosed SMPS Power Supply
Regular price
₹24,840
Regular price
₹40,000
Sale price
₹24,840
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹21,050.85
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well LRS-600-12 SMPS 12V 50A- 600W Industrial metal Power Supply
₹5,763
Mean Well LRS-450-12 SMPS 12V 37.5A- 450W Industrial metal Power Supply
₹5,076
Mean Well LRS-350-12 SMPS - 12V 29A - 348W Metal Power Supply
₹2,862
Unison 101 ZDA 48 25 01, SSR Dc to Ac, 25amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR Dc to Ac, 25amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
RSP-1000-12, an enclosed power supply from Mean Well, rated 12 VDC output at 60 AMP, 720W output power.
Output voltage
12 VDC
Output current
60 AMP
Power
720W
Input voltage
90 to 264V AC 127 to 370V DC
Technical specifications
| Make | Mean Well |
| Model | RSP-1000-12 |
| Output voltage | 12 VDC |
| Output current | 60 AMP |
| Input voltage | 90 to 264V AC 127 to 370V DC |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 12 VDC |
| Number of Outputs | 1 Output |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 60 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 295 mm |
| Width | 127 mm |
| Height | 41 mm |
| Approvals | EN60950-1, UL60950-1 |
| Packaging | Bulk |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 2 kg |
Frequently asked questions about the Mean Well RSP-1000-12
What is the output of the Mean Well RSP-1000-12?
The RSP-1000-12 is rated 12 VDC output, output current 60 AMP, 720W.
What input voltage does the RSP-1000-12 accept?
The RSP-1000-12 accepts an input of 90 to 264V AC 127 to 370V DC, as listed on this page.
What certifications does the RSP-1000-12 have?
Mean Well lists: EN60950-1, UL60950-1.
How is the RSP-1000-12 mounted?
Mounting style: Chassis.
Where can I download the RSP-1000-12 datasheet?
You can download it from the datasheet section on this page: RSP-1000-12 datasheet.
Is the RSP-1000-12 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RSP-1000-12 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RSP-1000-24 - 24 VDC at 40 AMP
- RSP-1000-48 - 48 VDC at 21 AMP
