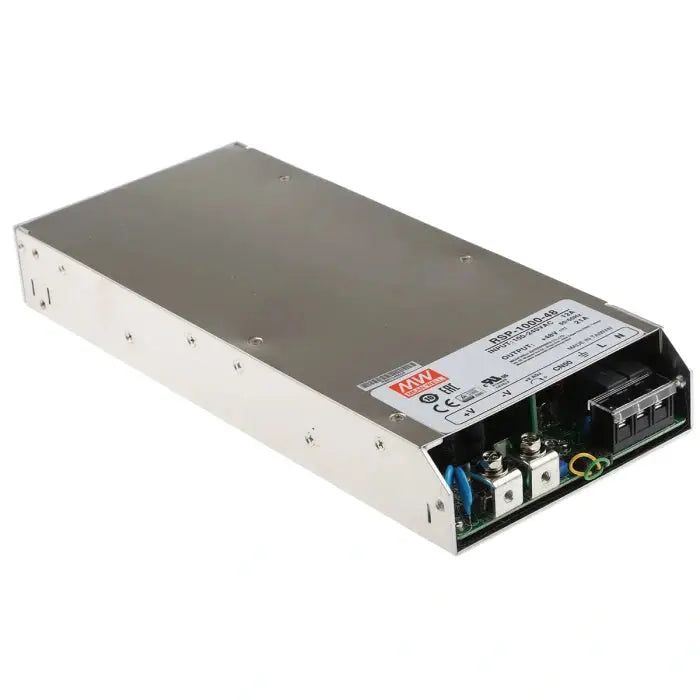

Mean Well RSP-1000-48 48V 21A 1008W Power Supply with PFC
Regular price
₹25,345
Regular price
Sale price
₹25,345
Incl. all taxes • Shipping calculated at checkout.
Need a different current rating? Compare all 48V SMPS models and prices.
Price excl. GST
₹21,478.81
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Mean Well LRS-600-48 SMPS 48V 12.5A 600W Industrial Metal Power Supply
₹5,894
Mean Well LRS-450-48 SMPS 48V 9.4A 450W Industrial Metal Power Supply
₹5,455
Mean Well LRS-350-48 SMPS - 48V 7.3A - 350.4W Metal Power Supply
₹2,851
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Selec UNIX-1-230V, PLC
₹4,490
Description
RSP-1000-48, an enclosed power supply from Mean Well, rated 48 VDC output at 21 AMP, 1008W output power.
Output voltage
48 VDC
Output current
21 AMP
Power
1008W
Input voltage
90 to 264V AC 127 to 370V DC
Technical specifications
| Make | Mean Well |
| Model | RSP-1000-48 |
| Output voltage | 48 VDC |
| Output current | 21 AMP |
| Input voltage | 90 to 264V AC 127 to 370V DC |
| Product Category | Switching Power Supplies |
| Output Voltage-Channel 1 | 48 VDC |
| Number of Outputs | 1 Output |
| Open Frame/Enclosed | Enclosed |
| Output Current-Channel 1 | 21 A |
| Industry | Industrial |
| Mounting Style | Chassis |
| Length | 295 mm |
| Width | 127 mm |
| Height | 41 mm |
| Approvals | EN60950-1, UL60950-1 |
| Subcategory | AC-DC Power Supply |
| Unit Weight | 2 kg |
Frequently asked questions about the Mean Well RSP-1000-48
What is the output of the Mean Well RSP-1000-48?
The RSP-1000-48 is rated 48 VDC output, output current 21 AMP, 1008W.
What input voltage does the RSP-1000-48 accept?
The RSP-1000-48 accepts an input of 90 to 264V AC 127 to 370V DC, as listed on this page.
What certifications does the RSP-1000-48 have?
Mean Well lists: EN60950-1, UL60950-1.
How is the RSP-1000-48 mounted?
Mounting style: Chassis.
Where can I download the RSP-1000-48 datasheet?
You can download it from the datasheet section on this page: RSP-1000-48 datasheet.
Is the RSP-1000-48 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Mean Well, so you receive genuine Mean Well products, and every order comes with a GST invoice.
Can I order the RSP-1000-48 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Compare and explore more Mean Well products
- RSP-1000-24 - 24 VDC at 40 AMP
- RSP-1000-12 - 12 VDC at 60 AMP
Need help choosing the right model?
Voltkart is an authorised dealer of Mean Well. Share your load details and we will help you pick the correct power supply.
All 48 V SMPS with watts, amps and prices →
Other Mean Well RSP models
The RSP series are enclosed AC-DC power supplies with built-in power factor correction (PFC), used for high-power 12, 24 and 48 V loads.
- Mean Well RSP-320-24: 24 V, 13.4 A, 321.6 W
- Mean Well RSP-1000-12: 12 V, 60 A, 720 W
- RSP-1000-48 (this model): 48 V, 21 A, 1008 W
- Mean Well RSP-2000-24: 24 V, 80 A, 1920 W
- Mean Well RSP-2400-12: 12 V, 166.7 A, 2000 W
- Mean Well RSP-2400-24: 24 V, 100 A, 2400 W
- Mean Well RSP-2400-48: 48 V, 50 A, 2400 W
- Mean Well RSP-3000-48: 48 V, 62.5 A, 3000 W
Compare every model and price in the Mean Well SMPS price list, or by output voltage: 12 V, 24 V, 48 V.
