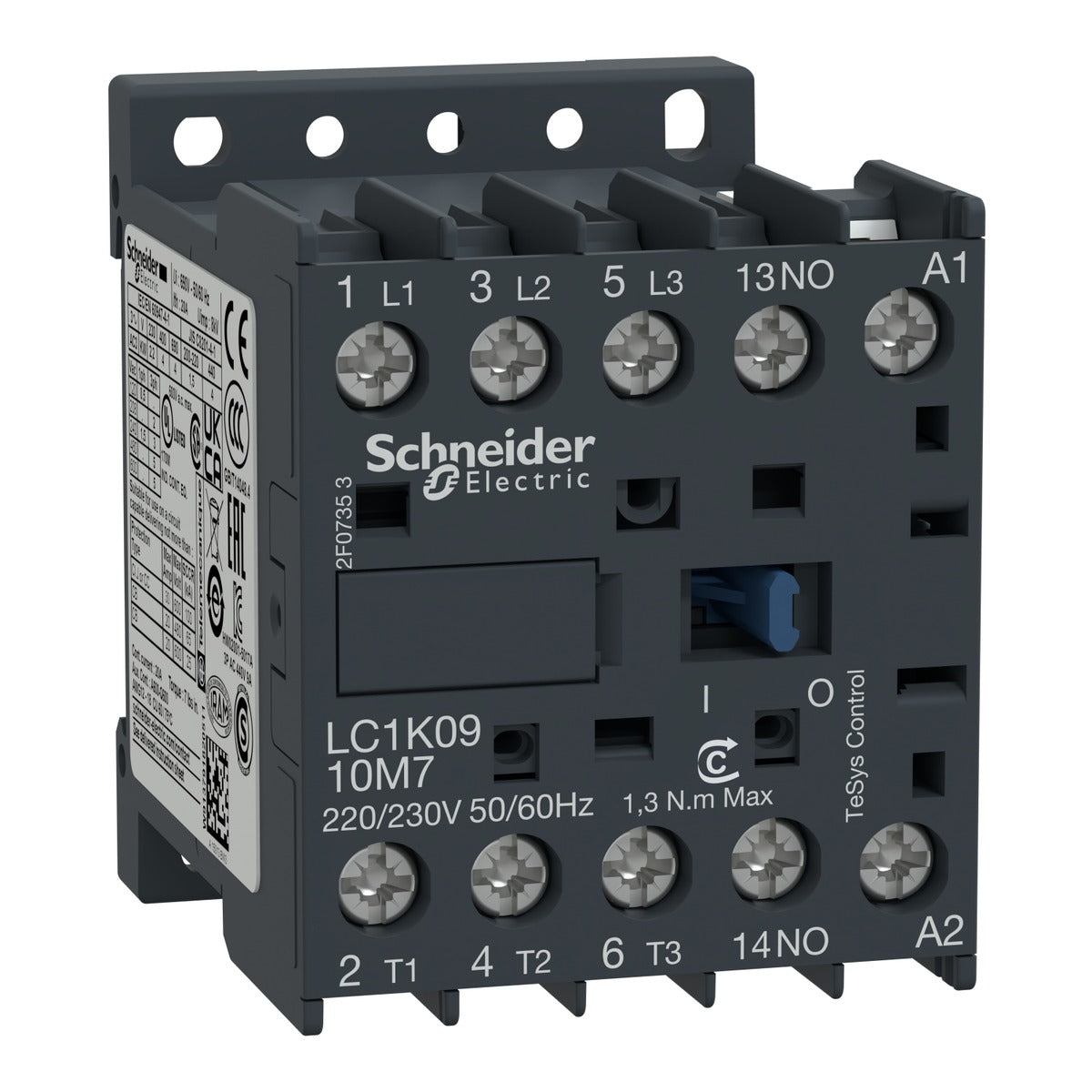

Schneider LC1K0910M7, 9 Amp Mini Contactor, coil voltage 220V AC
No reviews
Regular price
₹1,617
Regular price
₹2,855
Sale price
₹1,617
Incl. GST
Delivery ₹160 (₹99 in DL, UP, HR, HP) · free on orders of ₹3,001+ · Details
Price excl. GST
₹1,370.34
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LA1KN11 Auxiliary Contact Block 1NO+1NC, TeSys K
₹883
Schneider LA1KN22 Auxiliary Contact Block 2NO+2NC, TeSys K
₹1,485
Schneider XB5AA31N Push Button Green, 22mm, Spring Return
₹164
Schneider XB5AA41N Push Button Red, 22mm, Spring Return
₹164
Schneider XB7EV03 Pilot Light Green, 22mm LED
₹232
Schneider XB7EV04 Pilot Light Red, 22mm LED
₹232
Description
LC1K0910M7 is a Schneider Electric TeSys K mini contactor. Schneider lists it as: TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 220...230 V AC coil.
AC-3 rated current
9 A
Product or component type
Contactor
Device application
Control
Contactor application
Motor control; Resistive load
Technical specifications
| Make | Schneider Electric |
| Model | LC1K0910M7 |
| Product or component type | Contactor |
| Device application | Control |
| Contactor application | Motor control; Resistive load |
| Poles description | 3P |
| Ue rated operational voltage | Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz |
| Motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz AC-3; 4 kW at 380...415 V AC 50/60 Hz AC-3 |
| Auxiliary contact composition | 1 NO |
| Uimp rated impulse withstand voltage | 8 kV |
| Ith conventional free air thermal current | 20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit |
| Rated breaking capacity | 110 A at 220...230 V conforming to IEC 60947; 110 A at 380...400 V conforming to IEC 60947 |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid; Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end |
| Maximum operating rate | 3600 cyc/h |
| Operating time | 10...20 ms coil de-energisation and NO opening; 10...20 ms coil energisation and NO closing |
| Mechanical durability | 10 Mcycles |
| Electrical durability | 1.3 Mcycles 9 A AC-3 at Ue <= 440 V; 1.3 Mcycles 9 A AC-3e at Ue <= 440 V |
| Height | 58 mm |
| Width | 45 mm |
| Standards | EN/IEC 60947-4-1; GB/T 14048.4; UL 60947-4-1; CSA C22.2 No 60947-4-1 |
| Product certifications | CB Scheme; CCC; UL; CSA |
PDF
LC1K0910M7 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider LC1K0910M7
What is the ac-3 rated current of the LC1K0910M7?
9 A, as published by Schneider Electric.
What is the product or component type of the LC1K0910M7?
Contactor, as published by Schneider Electric.
What is the device application of the LC1K0910M7?
Control, as published by Schneider Electric.
Where can I download the LC1K0910M7 datasheet?
You can download the official PDF datasheet here: LC1K0910M7 datasheet (PDF).
Is the LC1K0910M7 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LC1K0910M7 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
