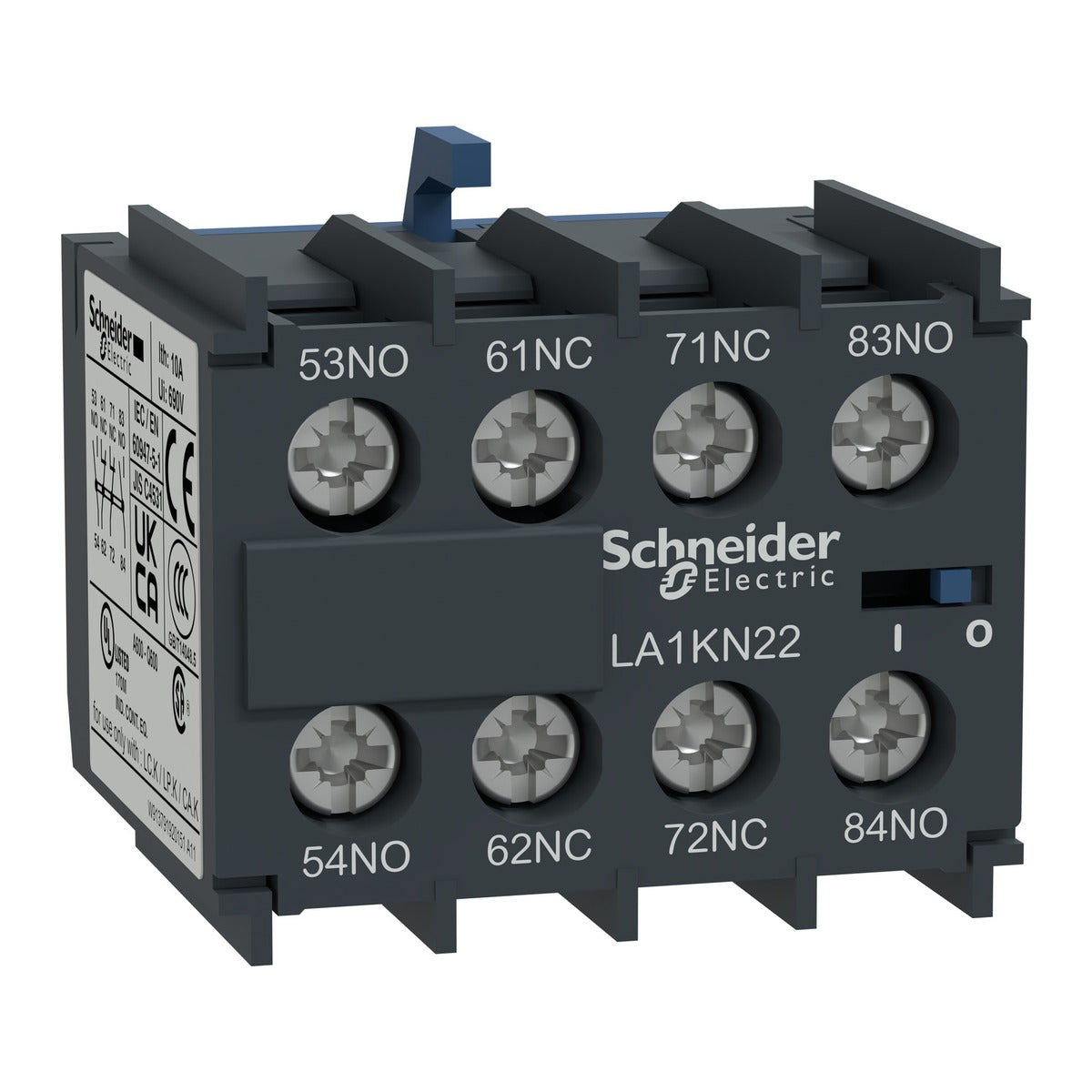

Schneider LA1KN22 Auxiliary Contact Block 2NO+2NC, TeSys K
Regular price
₹1,485
Regular price
₹2,330
Sale price
₹1,485
Incl. GST
Delivery ₹160 (₹99 in DL, UP, HR, HP) · free on orders of ₹3,001+ · Details
Price excl. GST
₹1,258.47
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1K0610M7, 6 Amp Mini Contactor, coil voltage 220V AC
₹1,546
Schneider LC1K0910M7, 9 Amp Mini Contactor, coil voltage 220V AC
₹1,617
Schneider LP1K0910BD, 9 Amp Mini Contactor, 24VDC coil
₹2,631
Schneider LC1K1210M7, 12 Amp Mini Contactor, coil voltage 220V AC
₹1,832
Schneider LP1K1210BD, 12 Amp Mini Contactor, 24VDC coil
₹3,047
Schneider LC1K1610M7, 16 Amp Mini Contactor, coil voltage 220V AC
₹2,166
Description
LA1KN22 is a Schneider Electric accessory. Schneider lists it as: TeSys K - Auxiliary contact block - 2 NO + 2 NC - screw-clamps terminals.
Product or component type
Auxiliary contact block
Range compatibility
TeSys K LC1K
Mounting location
Front
Net weight
0.045 kg
Technical specifications
| Make | Schneider Electric |
| Model | LA1KN22 |
| Product name | TeSys K |
| Product or component type | Auxiliary contact block |
| Range compatibility | TeSys K LC1K; TeSys K CA2K; TeSys K CA3K |
| Mounting location | Front |
| Pole contact composition | 2 NO + 2 NC |
| Contacts operation | Instantaneous |
| Ue rated operational voltage | 690 V AC 25...400 Hz |
| Ui rated insulation voltage | 690 V conforming to IEC 60947-5-1; 600 V conforming to UL 60947-5-1; 600 V conforming to CSA C22.2 No 60947-5-1 |
| Ith conventional free air thermal current | 10 A (at 50 °C) |
| Standards | EN/IEC 60947-5-1; UL 60947-5-1; CSA C22.2 No 60947-5-1 |
| Product certifications | CB Scheme; CCC; UL |
| Connections - terminals | Screw clamp terminals 1 cable(s) 0.34…1.5 mm²flexible with cable end; Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end |
| Height | 30 mm |
| Width | 38 mm |
| Depth | 35 mm |
| Net weight | 0.045 kg |
| IP degree of protection | IP20 conforming to IEC 60529 |
| Ambient air temperature for operation | -25…50 °C |
PDF
LA1KN22 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider LA1KN22
What is the product or component type of the LA1KN22?
Auxiliary contact block, as published by Schneider Electric.
What is the range compatibility of the LA1KN22?
TeSys K LC1K, as published by Schneider Electric.
What is the mounting location of the LA1KN22?
Front, as published by Schneider Electric.
Where can I download the LA1KN22 datasheet?
You can download the official PDF datasheet here: LA1KN22 datasheet (PDF).
Is the LA1KN22 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LA1KN22 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
