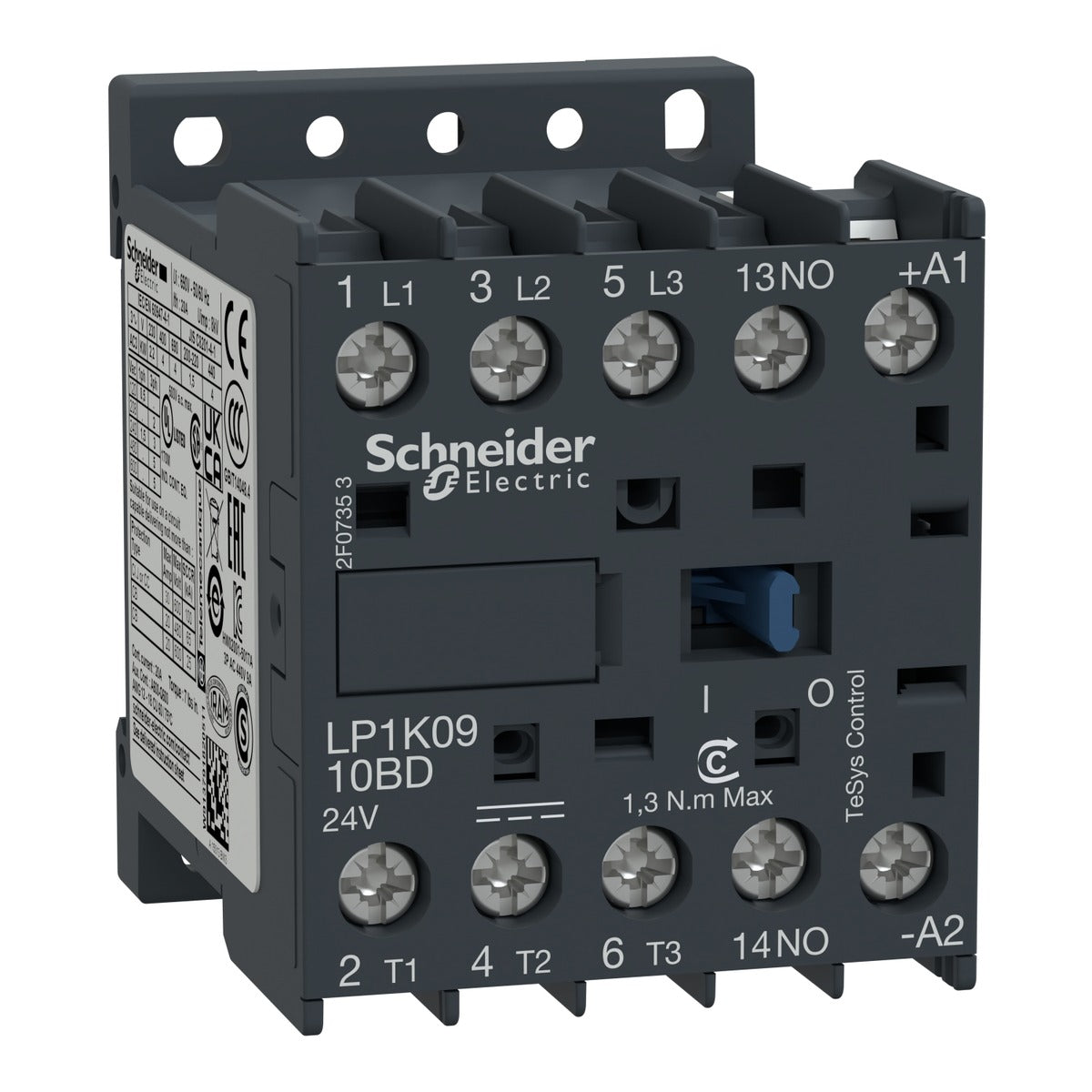

Schneider LP1K0910BD, 9 Amp Mini Contactor, 24VDC coil
No reviews
Regular price
₹2,631
Regular price
₹4,645
Sale price
₹2,631
Incl. GST
Delivery ₹160 (₹99 in DL, UP, HR, HP) · free on orders of ₹3,001+ · Details
Price excl. GST
₹2,229.66
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LA1KN11 Auxiliary Contact Block 1NO+1NC, TeSys K
₹883
Schneider LA1KN22 Auxiliary Contact Block 2NO+2NC, TeSys K
₹1,485
Schneider XB5AA31N Push Button Green, 22mm, Spring Return
₹164
Schneider XB5AA41N Push Button Red, 22mm, Spring Return
₹164
Schneider XB7EV03 Pilot Light Green, 22mm LED
₹232
Schneider XB7EV04 Pilot Light Red, 22mm LED
₹232
Description
LP1K0910BD is a Schneider Electric TeSys K mini contactor. Schneider lists it as: TeSys K contactor - 3P - AC-3 <= 440 V 9 A - 1 NO aux. - 24 V DC coil.
AC-3 rated current
9 A
Product or component type
Contactor
Contactor application
Motor control; Resistive load
Ue rated operational voltage
Power circuit: <= 690 V AC <= 400 Hz; Signalling
Technical specifications
| Make | Schneider Electric |
| Model | LP1K0910BD |
| Product or component type | Contactor |
| Contactor application | Motor control; Resistive load |
| Poles description | 3P |
| Ue rated operational voltage | Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz |
| Motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz AC-3; 4 kW at 380...415 V AC 50/60 Hz AC-3 |
| Auxiliary contact composition | 1 NO |
| Uimp rated impulse withstand voltage | 8 kV |
| Ith conventional free air thermal current | 20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit |
| Rated breaking capacity | 110 A at 220...230 V conforming to IEC 60947; 110 A at 380...400 V conforming to IEC 60947 |
| Ui rated insulation voltage | Power circuit: 600 V conforming to UL 508; Power circuit: 690 V conforming to IEC 60947-4-1 |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid; Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end |
| Maximum operating rate | 3600 cyc/h |
| Mounting support | Rail; Plate |
| Operating time | 30...40 ms coil energisation and NO closing; 10 ms coil de-energisation and NO opening |
| Mechanical durability | 10 Mcycles |
| Electrical durability | 1.3 Mcycles 9 A AC-3 at Ue <= 440 V; 1.3 Mcycles 9 A AC-3e at Ue <= 440 V |
| Standards | EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1 |
| Product certifications | CB Scheme; CCC; UL; CSA |
| IP degree of protection | IP2X |
| Ambient air temperature for operation | -25…50 °C |
PDF
LP1K0910BD product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider LP1K0910BD
What is the ac-3 rated current of the LP1K0910BD?
9 A, as published by Schneider Electric.
What is the product or component type of the LP1K0910BD?
Contactor, as published by Schneider Electric.
What is the contactor application of the LP1K0910BD?
Motor control; Resistive load, as published by Schneider Electric.
Where can I download the LP1K0910BD datasheet?
You can download the official PDF datasheet here: LP1K0910BD datasheet (PDF).
Is the LP1K0910BD genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LP1K0910BD in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
