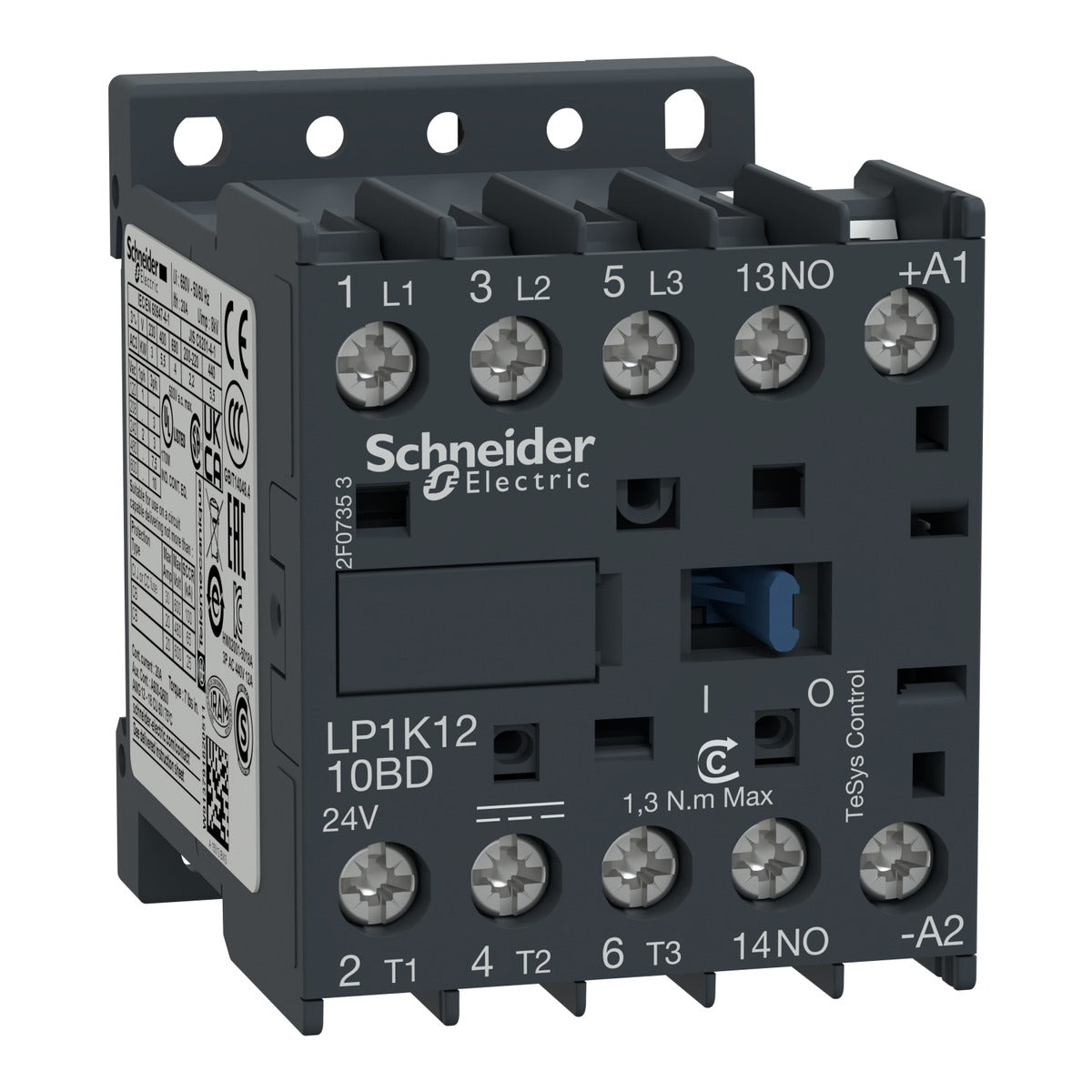

Schneider LP1K1210BD, 12Amp Mini Contactor, 24VDC coil

Q: What is the ac-3 rated current of the LP1K1210BD?

12 A, as published by Schneider Electric.

Q: What is the product or component type of the LP1K1210BD?

Contactor, as published by Schneider Electric.

Q: What is the contactor application of the LP1K1210BD?

Resistive load; Motor control, as published by Schneider Electric.

Q: Where can I download the LP1K1210BD datasheet?

You can download the official PDF datasheet here: LP1K1210BD datasheet (PDF) on this page.

Q: Is the LP1K1210BD genuine, and do you provide a GST invoice?

Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.

Q: Can I order the LP1K1210BD in bulk for OEM or panel-building use?

Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.

Rs. 3,047.00

~~Rs. 5,380.00~~ Rs. 3,047.00

43% off

Incl. all taxes • Shipping calculated at checkout.

Price excl. GST Rs. 2,582.20

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp Request a formal quote

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Works well with

Schneider LC1D09, 9Amp Contactor Rs. 1,421

Schneider LC1E1810, 18Amp Contactor, coil voltage 220vac Rs. 1,400

Schneider LRE22 Over Load Relay Rs. 2,030

Schneider LC1D40, 40Amp Contactor Rs. 6,830

Description

LP1K1210BD is a Schneider Electric TeSys K mini contactor. Schneider lists it as: TeSys K contactor - 3P - AC-3 <= 440 V 12 A - 1 NO aux. - 24 V DC coil.

AC-3 rated current

12 A

Product or component type

Contactor

Contactor application

Resistive load; Motor control

Ue rated operational voltage

Power circuit: <= 690 V AC <= 400 Hz; Signalling

Technical specifications

Make	Schneider Electric
Model	LP1K1210BD
Product or component type	Contactor
Contactor application	Resistive load; Motor control
Poles description	3P
Ue rated operational voltage	Power circuit: <= 690 V AC <= 400 Hz; Signalling circuit: <= 690 V AC <= 400 Hz
Motor power kW	3 kW at 220...230 V AC 50/60 Hz AC-3; 5.5 kW at 380...415 V AC 50/60 Hz AC-3
Auxiliary contact composition	1 NO
Uimp rated impulse withstand voltage	8 kV
Ith conventional free air thermal current	20 A (at 60 °C) for power circuit; 10 A (at 50 °C) for signalling circuit
Rated breaking capacity	110 A at 440 V conforming to IEC 60947; 80 A at 500 V conforming to IEC 60947
Ui rated insulation voltage	Power circuit: 600 V conforming to UL 508; Power circuit: 690 V conforming to IEC 60947-4-1
Connections - terminals	Screw clamp terminals 1 cable(s) 1.5…4 mm²solid; Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end
Maximum operating rate	3600 cyc/h
Mounting support	Plate; Rail
Operating time	30...40 ms coil energisation and NO closing; 10 ms coil de-energisation and NO opening
Mechanical durability	10 Mcycles
Electrical durability	1.3 Mcycles 12 A AC-3 at Ue <= 440 V; 1.3 Mcycles 12 A AC-3e at Ue <= 440 V
Standards	EN/IEC 60947-4-1; EN/IEC 60947-5-1; UL 60947-4-1; UL 60947-5-1
Product certifications	CB Scheme; CCC; UL; CSA
IP degree of protection	IP2X
Ambient air temperature for operation	-25…50 °C
Permissible ambient air temperature around the device	-40…70 °C at Uc
