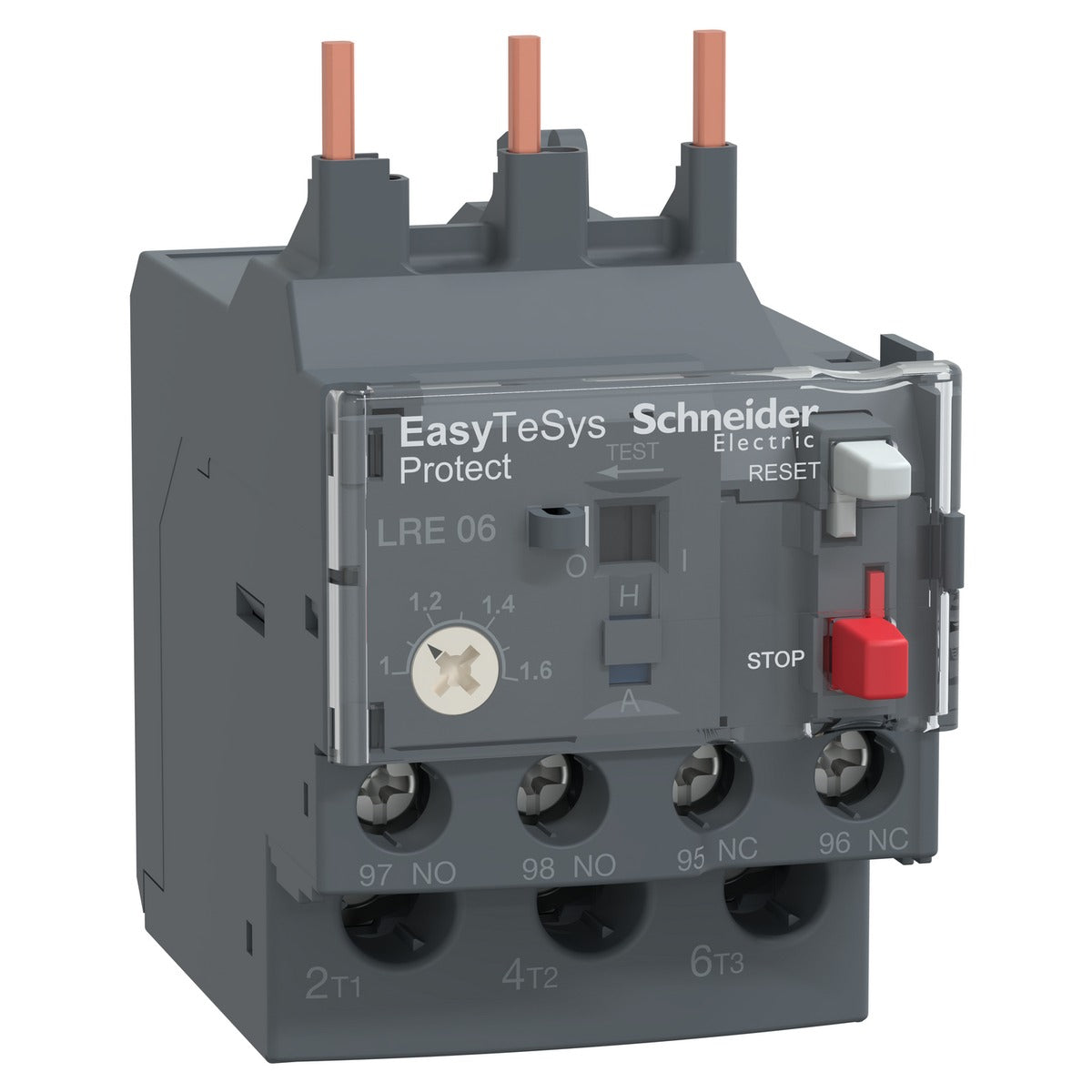

Schneider LRE06 Overload Relay 1-1.6A, for LC1E
Regular price
₹1,650
Regular price
₹3,755
Sale price
₹1,650
Incl. all taxes • Shipping calculated at checkout.
Delivery ₹160 (₹99 to Delhi, UP, Haryana and HP) · free on orders of ₹3,001+ · Details
Price excl. GST
₹1,398.31
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1E0610, 6 Amp Contactor, coil voltage 220V AC
₹1,029
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Schneider LC1E1210, 12 Amp Contactor, coil voltage 220V AC
₹1,210
Schneider LC1E1810, 18 Amp Contactor, coil voltage 220V AC
₹1,400
Schneider LC1E2510, 25 Amp Contactor, coil voltage 220V AC
₹1,900
Schneider LC1E3210, 32 Amp Contactor, coil voltage 220V AC
₹3,970
Description
LRE06 is a Schneider Electric thermal overload relay -- thermal overload protection for three-phase motors -- checked against Schneider’s own official product data.
Same range in the other series: LRD06 (for LC1D)
Next ranges in this frame: LRE07 (1.6-2.5 A)
Adjustment range
1-1.6A
Trip class
Class 10A
Reset mode
Manual or automatic (selectable)
Technical specifications
| Make | Schneider Electric |
| Model | LRE06 |
| Adjustment range | 1-1.6A |
| Trip class | Class 10A |
| Mounting | Direct mounting on a LC1E contactor |
| Reset mode | Manual or automatic (selectable) |
| Standards | IEC 60947-4-1 |
Before you order: Pick the relay whose setting range covers your motor's full-load current, then set the dial to the nameplate current. Not sure? WhatsApp us a photo of the motor nameplate and we will confirm the right relay.
SE
LRE06 on Schneider Electric’s official site
Look up the full datasheet directly from se.com
Frequently asked questions about the Schneider LRE06
What is the adjustment range of the LRE06?
1-1.6A, per Schneider Electric’s own product data.
What is the trip class of the LRE06?
Class 10A, per Schneider Electric’s own product data.
What is the reset mode of the LRE06?
Manual or automatic (selectable), per Schneider Electric’s own product data.
Where can I check the LRE06 specifications?
You can look it up directly on Schneider Electric’s official site: LRE06 on se.com.
Is the LRE06 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the LRE06 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
