SELEC

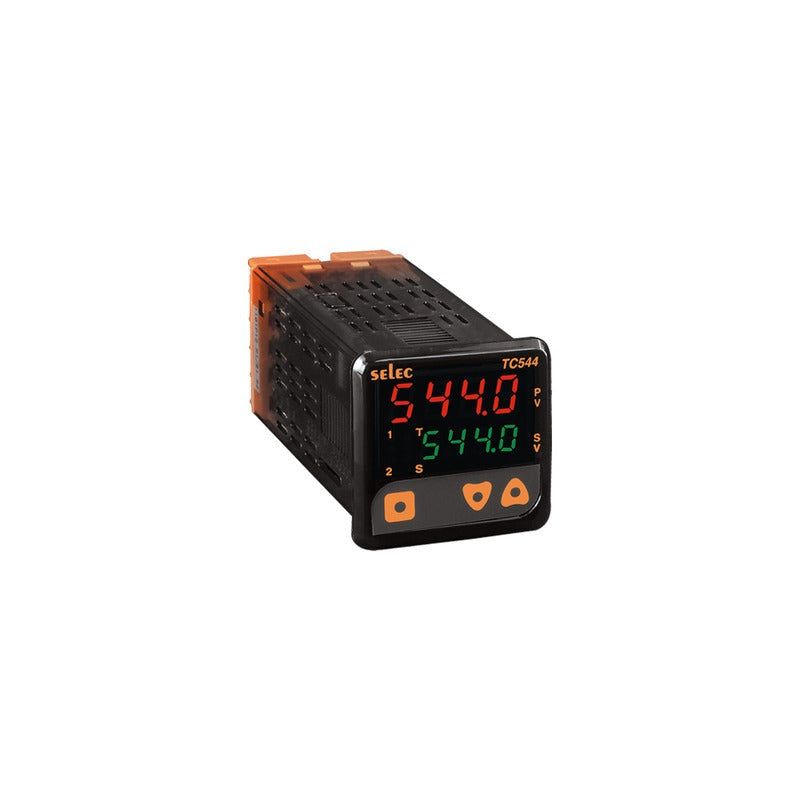

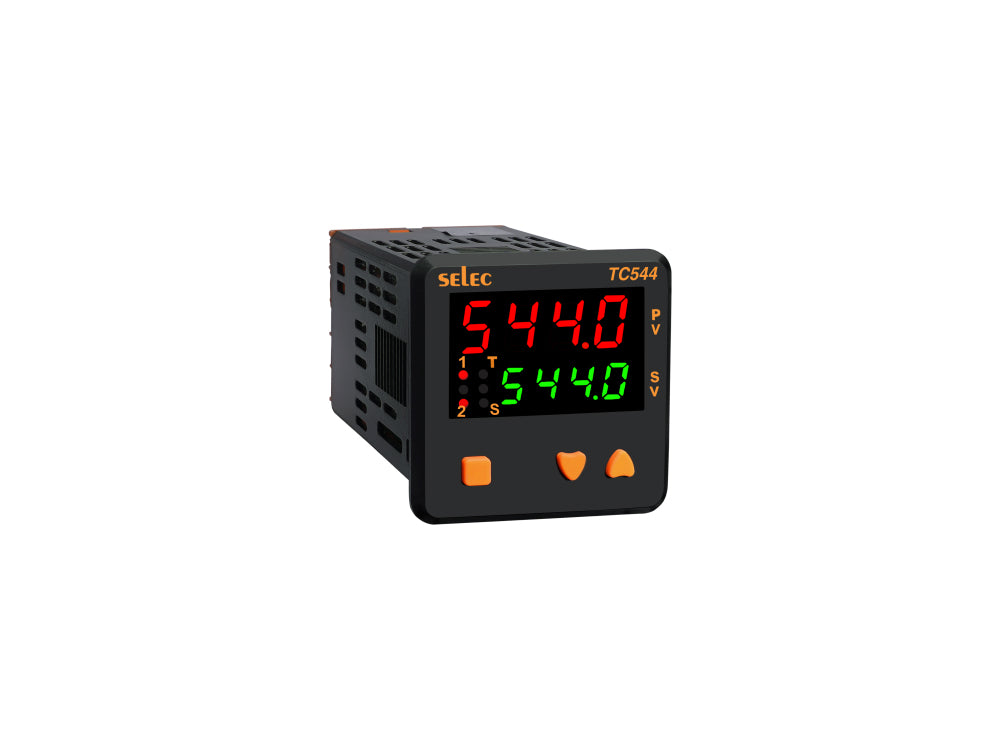

Selec TC544A, 48x48 Dual display temperature controller, 2 relay Output
Regular price
₹2,130
Regular price
₹3,605
Sale price
₹2,130
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹1,805.08
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Voltkart Type J Thermocouple windsor type
₹160
Voltkart Pt-100/ RTD 6mm thickness, 6 inch height
₹280
Unison 101 ZDA 48 25 01, SSR Dc to Ac, 25amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR Dc to Ac, 25amp
₹450
Schneider LC1D09, 9Amp Contactor
₹1,421
Schneider LC1E0910, 9Amp Contactor, coil voltage 220vac
₹1,056
Description
TC544A, a temperature controller from Selec. 4-Digit dual (Red+Green) display, Dual set point, Temperature controller with Relay / SSR & Relay output, 48 x 48mm size, 90 to 270V AC / DC.
Supply Voltage
90 to 270V AC/DC
Control Output
RELAY or SSR.
Display Type
7 Segment LED Dual Display
Size
48 x 48mm
Technical specifications
| Make | Selec |
| Model | TC544A |
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4 + 4 Digits |
| Type of Input | Thermocouple (J,K,T,R,S) / RTD (PT100) |
| Resolution | 0.1/1° for TC/RTD , (fixed 1° for R and S TC) |
| Control Output | RELAY or SSR. |
| Auxiliary Output | RELAY |
| Control Mode | Auto Tune PID / ON-OFF |
| Feature | Heat Cool PID , Dwell Timer |
| Supply Voltage | 90 to 270V AC/DC |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
| Certification | CE & UL |
Notable features
- Accuracy: For TC (J, K, T) inputs: 0.25% of F.S. ± 1 °For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
More about the TC544A
4-Digit dual (Red+Green) display, Dual set point, Temperature controller with Relay / SSR & Relay output, 48 x 48mm size, 90 to 270V AC / DC
Frequently asked questions about the Selec TC544A
What is the TC544A?
4-Digit dual (Red+Green) display, Dual set point, Temperature controller with Relay / SSR & Relay output, 48 x 48mm size, 90 to 270V AC / DC. It is a temperature controller made by Selec.
What is the supply voltage of the TC544A?
The TC544A is listed with supply voltage of 90 to 270V AC/DC.
What is the control output of the TC544A?
The TC544A is listed with control output of RELAY or SSR..
What is the display type of the TC544A?
The TC544A is listed with display type of 7 Segment LED Dual Display.
Where can I download the TC544A datasheet?
You can download it from the datasheet section on this page: TC544A datasheet.
Is the TC544A genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the TC544A in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Explore more Selec products
Need help choosing the right model?
Voltkart is an authorised dealer of Selec. Share your application details and we will help you pick the correct model.
