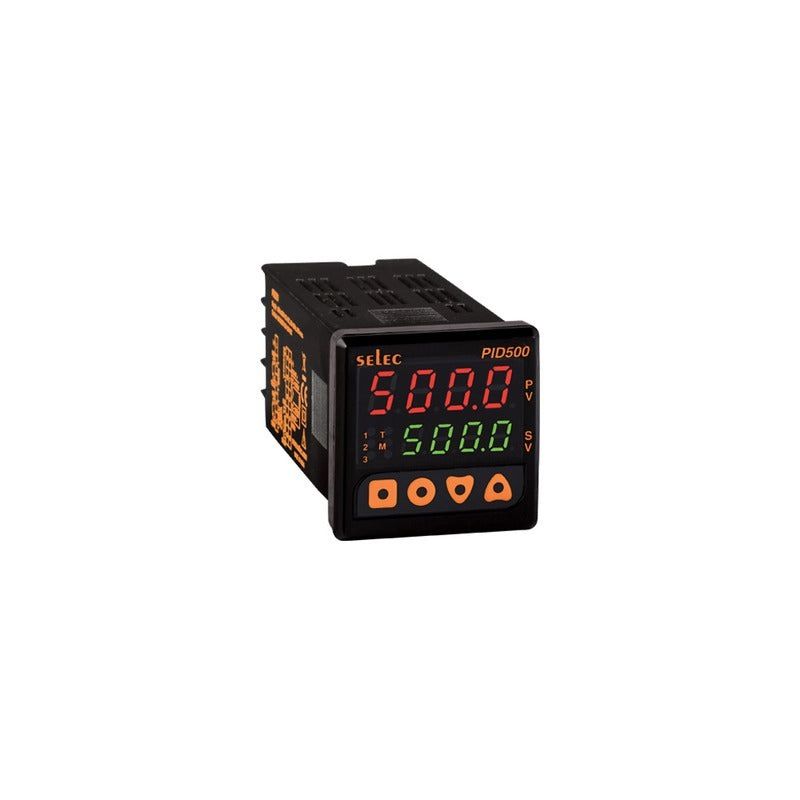

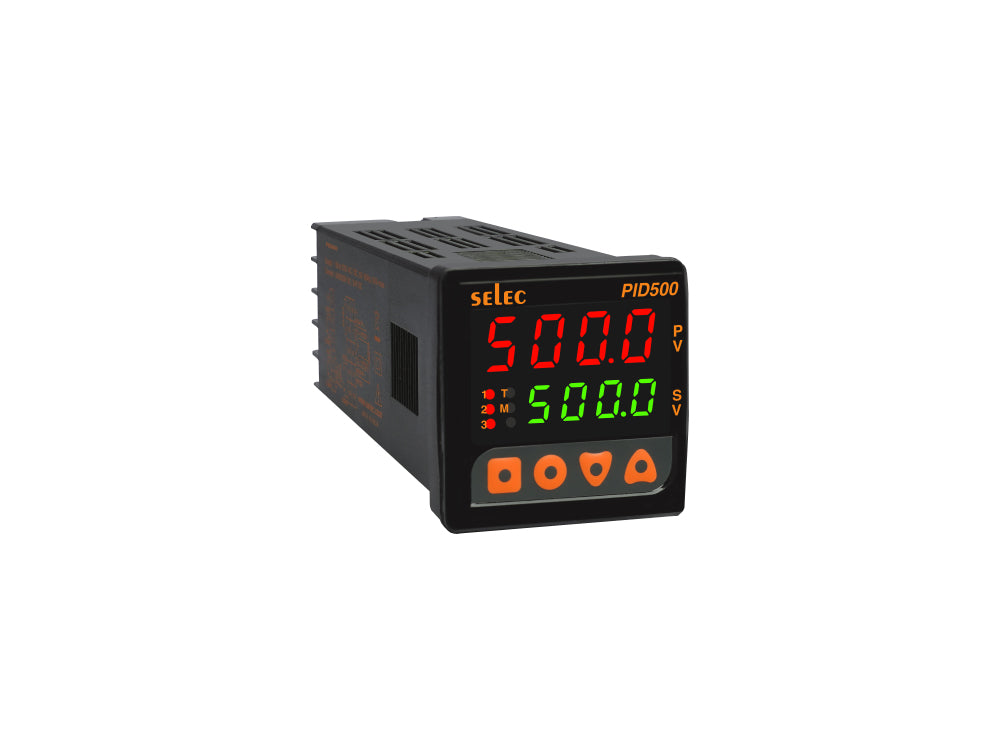

SELEC PID500-0-0-01, Selec 48*48 PID, 3 relay output

SELEC PID500-0-0-01, Selec 48*48 PID, 3 relay output

Regular price Rs. 2,092.00
Regular price Rs. 4,183.00 Sale price Rs. 2,092.00
Sale Sold out
Shipping calculated at checkout.

4-Digit dual (Red+Green) display PID controller with Universal Input and 3 relay outputs, 48 x 48mm size, 90 to 270V AC / DC

BRIEF SPECIFICATIONS

Display Type 7 Segment LED Dual Display
Display Configuration 4+4 digits
Type of Inputs Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100, Signal Inputs: (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable)
Resolution TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001
Accuracy For TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
Control Output Relay
Auxiliary Output Relay
Control Mode Autotune PID / ON-OFF
Feature Single step ramp soak
Communication RS485 MODBUS communication (optional)
Supply Voltage 90V to 270V AC/DC
Size 48 x 48mm
Mounting Type Panel Mount
Certification CE
