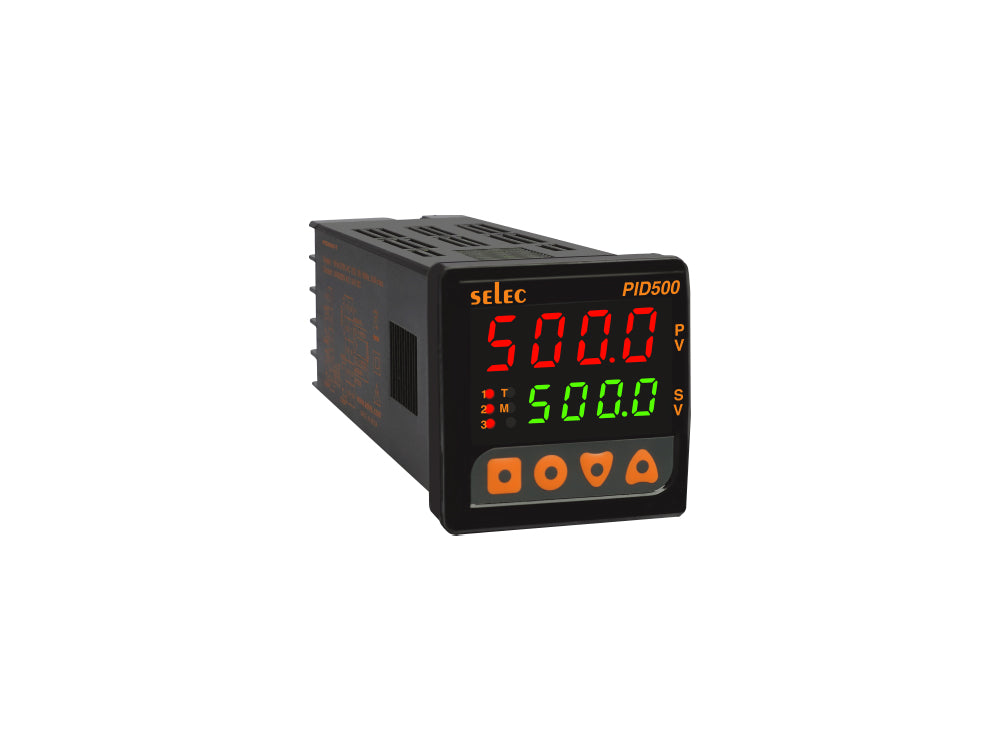

Selec PID500-T-0-0-01, 48*48 PID, 3 relay output
Regular price
₹2,300
Regular price
₹3,892
Sale price
₹2,300
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹1,949.15
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Voltkart Type J Thermocouple windsor type
₹160
Voltkart Pt-100/ RTD 6mm thickness, 6 inch height
₹280
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Description

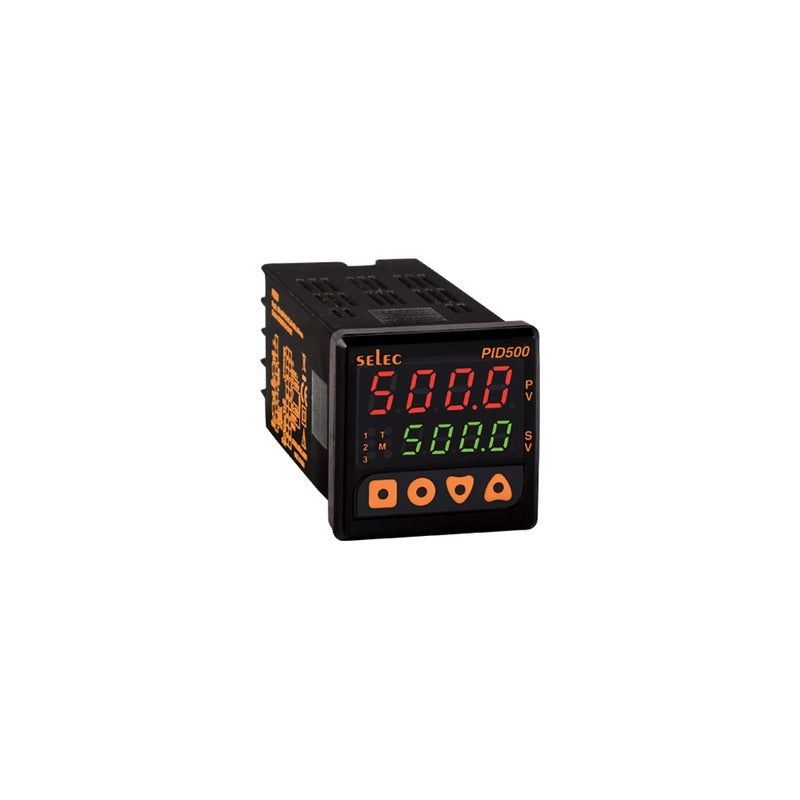

PID500-T-0-0-01, a temperature controller from Selec. 4-Digit dual (Red+Green) display PID controller with TC / RTD input and 3 relay outputs, 48 x 48mm size, 90 to 270V AC / DC.
Supply Voltage
90 to 270V AC/DC
Auxiliary Output
Maximum 2 Relay (Mode:Set Point or Alarm mode)
Display Type
7 Segment LED Dual Display
Size
48 x 48mm
Technical specifications
| Make | Selec |
| Model | PID500-T-0-0-01 |
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4+4 digits |
| Resolution | 1/0.1° |
| Auxiliary Output | Maximum 2 Relay (Mode:Set Point or Alarm mode) |
| Control Mode | Autotune PID / ON-OFF |
| Feature | Extra alarm output , Retransmission output |
| Supply Voltage | 90 to 270V AC/DC |
| Size | 48 x 48mm |
| Mounting Type | Panel Mount |
Notable features
- Type of Inputs: Thermocouple: J, K, T, R, S, C,E, B, N, L, U, W, Platinel II. RTD: PT100
- Control Output: Relay or SSR(12V DC) or Current : 4 to 20mA DC (max load 500E)
More about the PID500-T-0-0-01
4-Digit dual (Red+Green) display PID controller with TC / RTD input and 3 relay outputs, 48 x 48mm size, 90 to 270V AC / DC
Frequently asked questions about the Selec PID500-T-0-0-01
What is the PID500-T-0-0-01?
4-Digit dual (Red+Green) display PID controller with TC / RTD input and 3 relay outputs, 48 x 48mm size, 90 to 270V AC / DC. It is a temperature controller made by Selec.
What is the supply voltage of the PID500-T-0-0-01?
The PID500-T-0-0-01 is listed with supply voltage of 90 to 270V AC/DC.
What is the auxiliary output of the PID500-T-0-0-01?
The PID500-T-0-0-01 is listed with auxiliary output of Maximum 2 Relay (Mode:Set Point or Alarm mode).
What is the display type of the PID500-T-0-0-01?
The PID500-T-0-0-01 is listed with display type of 7 Segment LED Dual Display.
Where can I download the PID500-T-0-0-01 datasheet?
You can download it from the datasheet section on this page: PID500-T-0-0-01 datasheet.
Is the PID500-T-0-0-01 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the PID500-T-0-0-01 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
Explore more Selec products
Need help choosing the right model?
Voltkart is an authorised dealer of Selec. Share your application details and we will help you pick the correct model.
