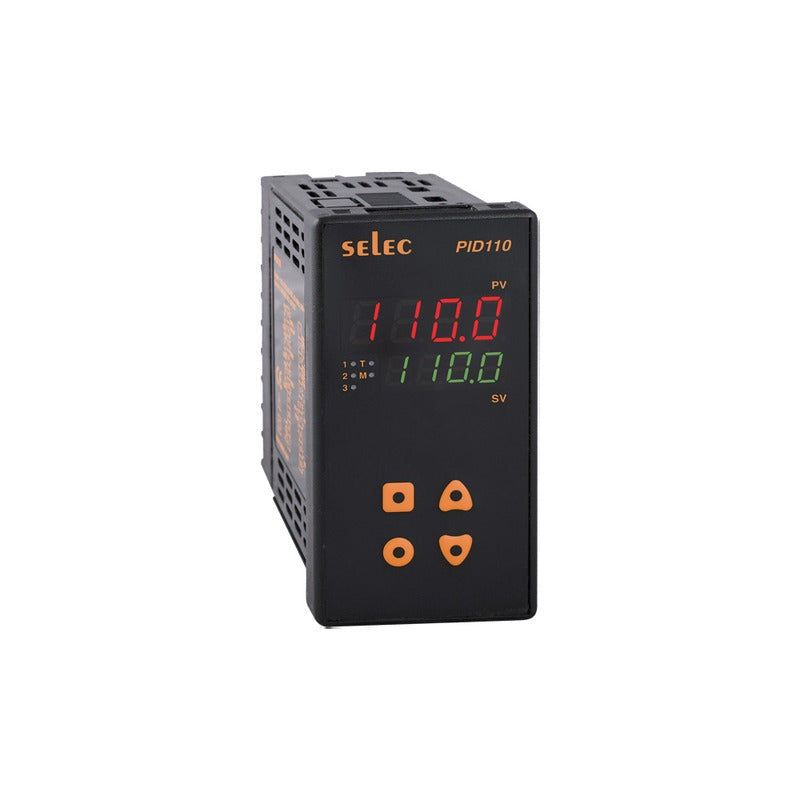

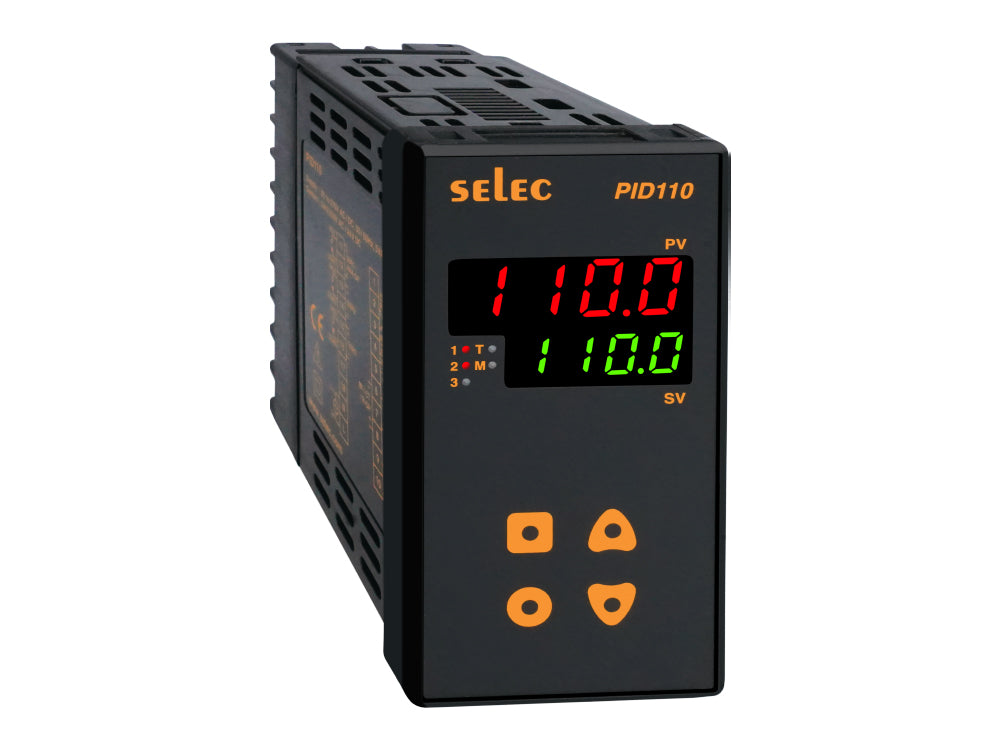

Selec PID110-0-0-01, 48*96 PID, 3 relay output
Regular price
₹3,260
Regular price
₹5,521
Sale price
₹3,260
Incl. all taxes • Shipping calculated at checkout.
Price excl. GST
₹2,762.71
GST @ 18% included in above product price
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Voltkart Type J Thermocouple windsor type
₹160
Voltkart Pt-100/ RTD 6mm thickness, 6 inch height
₹280
Unison 101 ZDA 48 25 01, SSR DC to AC, 25 Amp
₹302
Unison 901 ZDA 48 25 01 AL5, SSR DC to AC, 25 Amp
₹450
Schneider LC1D09, 9 Amp Contactor
₹1,421
Schneider LC1E0910, 9 Amp Contactor, coil voltage 220V AC
₹1,056
Description
PID110-0-0-01, a temperature controller from Selec. 4-Digit dual (Red+Green) display PID controller with Universal Input and 3 relay outputs, 96 x 48mm size, 90 to 270V AC / DC.
Supply Voltage
90V to 270V AC/DC
Control Output
3 Relay
Display Type
7 Segment LED Dual Display
Size
96 x 48mm
Technical specifications
| Make | Selec |
| Model | PID110-0-0-01 |
| Display Type | 7 Segment LED Dual Display |
| Display Configuration | 4+4 digits |
| Resolution | TC / RTD : 1/ 0.1 Analog input : 1 /0.1/ 0.01/ 0.001 |
| Control Output | 3 Relay |
| Auxiliary Output | Relay |
| Control Mode | Autotune PID / ON-OFF |
| Feature | Single step ramp soak |
| Supply Voltage | 90V to 270V AC/DC |
| Size | 96 x 48mm |
| Mounting Type | Panel Mount |
Notable features
- Type of Inputs: Thermocouple: J, K, T, R, S, C, B, N, L, U, W, Platinel II RTD: pt100, Single Input (DC) -5 to 56mV, 0 to 10V, 0 to 20mA (Selectable)
- Accuracy: For TC (J, K, T) inputs: 0.25% of F.S. ±1 For R & S inputs: 0.5% of F.S. ±2 (20min of warm up time) For RTD inputs: 0.1% of F.S ±1
More about the PID110-0-0-01
4-Digit dual (Red+Green) display PID controller with Universal Input and 3 relay outputs, 96 x 48mm size, 90 to 270V AC / DC
Frequently asked questions about the Selec PID110-0-0-01
What is the PID110-0-0-01?
4-Digit dual (Red+Green) display PID controller with Universal Input and 3 relay outputs, 96 x 48mm size, 90 to 270V AC / DC. It is a temperature controller made by Selec.
What is the supply voltage of the PID110-0-0-01?
The PID110-0-0-01 is listed with supply voltage of 90V to 270V AC/DC.
What is the control output of the PID110-0-0-01?
The PID110-0-0-01 is listed with control output of 3 Relay.
What is the display type of the PID110-0-0-01?
The PID110-0-0-01 is listed with display type of 7 Segment LED Dual Display.
Where can I download the PID110-0-0-01 datasheet?
You can download it from the datasheet section on this page: PID110-0-0-01 datasheet.
Is the PID110-0-0-01 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the PID110-0-0-01 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
