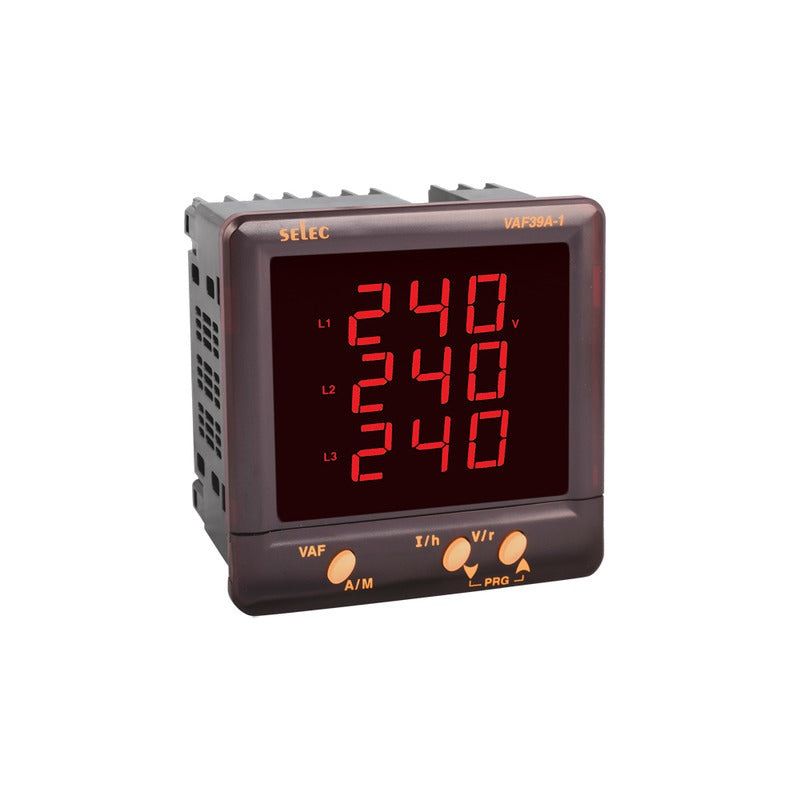

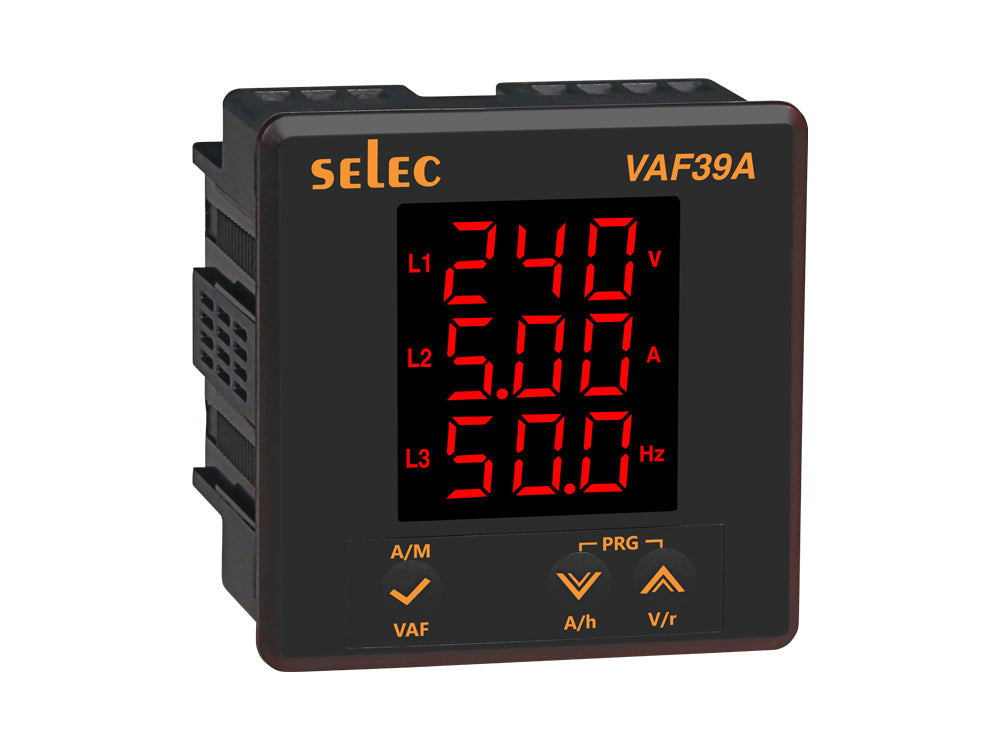

Selec VAF39A-1-230V, Digital Panel meter-voltage, ampere & frequency
Regular price
₹1,323
Regular price
₹2,244
Sale price
₹1,323
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders of ₹3,001+. Below that, delivery is ₹160 (₹99 to Delhi, UP, Haryana and HP on orders of ₹1,000+).
Price excl. GST
₹1,121.19
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Selec VAF391, 96*96 Digital panel meter- Voltage, Ampere & frequency
₹1,245
Selec MV305, 96*96 Digital Volt meter
₹550
Selec MV205, 72*72 Digital Volt meter
₹550
Selec MV15, 48*96 Digital Volt meter
₹550
Selec MA302, 96*96 Digital Panel Ampere amp meter
₹526
Description
VAF39A-1-230V, a digital panel meter from Selec. 3Ø Digital meter with LED display, Built in RPM / RUN hour measurement, 230V AC, 96 x 96 mm size.
Supply Voltage
230V AC ±20% , 110V AC ±20%
Display Type
7 segment LED, Integrated with Parameter Units
Size
96 x 96mm
Mounting Type
Panel Mount
Technical specifications
| Make | Selec |
| Model | VAF39A-1-230V |
| Display Type | 7 segment LED, Integrated with Parameter Units |
| Display Configuration | 3 Rows of 3 Digits |
| Electrical Connection | 3Ø – 4W, 3Ø -3W, 2Ø-3W, 1Ø - 2W |
| CT Primary | 5A to 10kA |
| CT Secondary | 5A Fixed |
| PT Primary | 100V to 500kV (Programmable for Any Aalue) |
| PT Secondary | 100 to 500V AC (L-L) (Programmable for Any Value) |
| Supply Voltage | 230V AC ±20% , 110V AC ±20% |
| Size | 96 x 96mm |
| Mounting Type | Panel Mount |
| Certification | CE, RoHS & UL |
Notable features
- Measuring Parameter: Voltage (L-N/L-L) (Individual/Average), Current (I1,I2,I3) (Individual/Average), Frequency, RPM, Run Hour
More about the VAF39A-1-230V
3Ø Digital meter with LED display, Built in RPM / RUN hour measurement, 230V AC, 96 x 96 mm size
Frequently asked questions about the Selec VAF39A-1-230V
What is the VAF39A-1-230V?
3Ø Digital meter with LED display, Built in RPM / RUN hour measurement, 230V AC, 96 x 96 mm size. It is a digital panel meter made by Selec.
What is the supply voltage of the VAF39A-1-230V?
The VAF39A-1-230V is listed with supply voltage of 230V AC ±20% , 110V AC ±20%.
What is the display type of the VAF39A-1-230V?
The VAF39A-1-230V is listed with display type of 7 segment LED, Integrated with Parameter Units.
What is the size of the VAF39A-1-230V?
The VAF39A-1-230V is listed with size of 96 x 96mm.
Where can I download the VAF39A-1-230V datasheet?
You can download it from the datasheet section on this page: VAF39A-1-230V datasheet.
Is the VAF39A-1-230V genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised dealer of Selec, so you receive genuine Selec products, and every order comes with a GST invoice.
Can I order the VAF39A-1-230V in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
