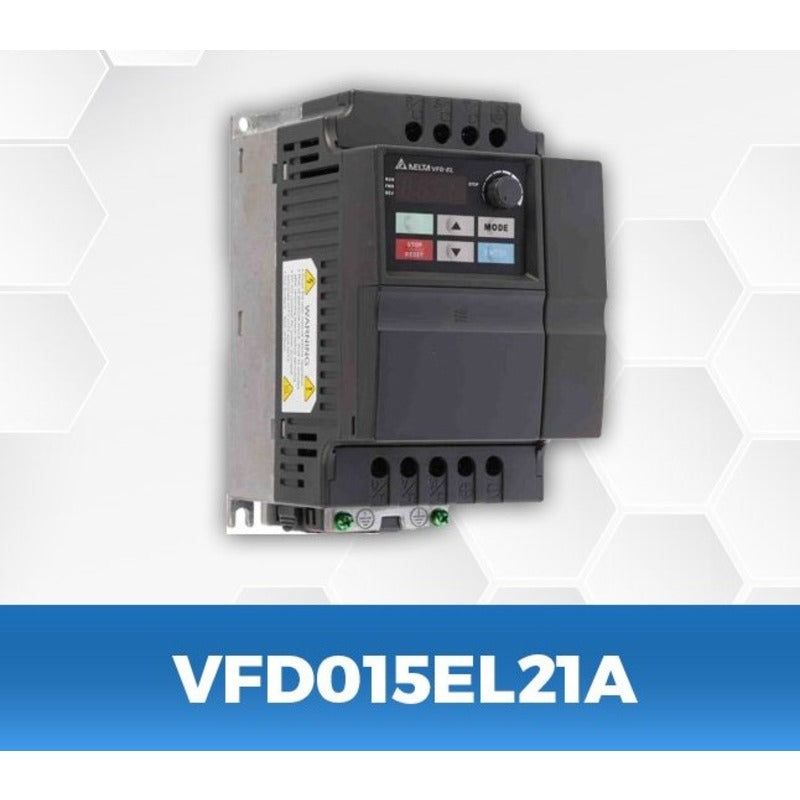

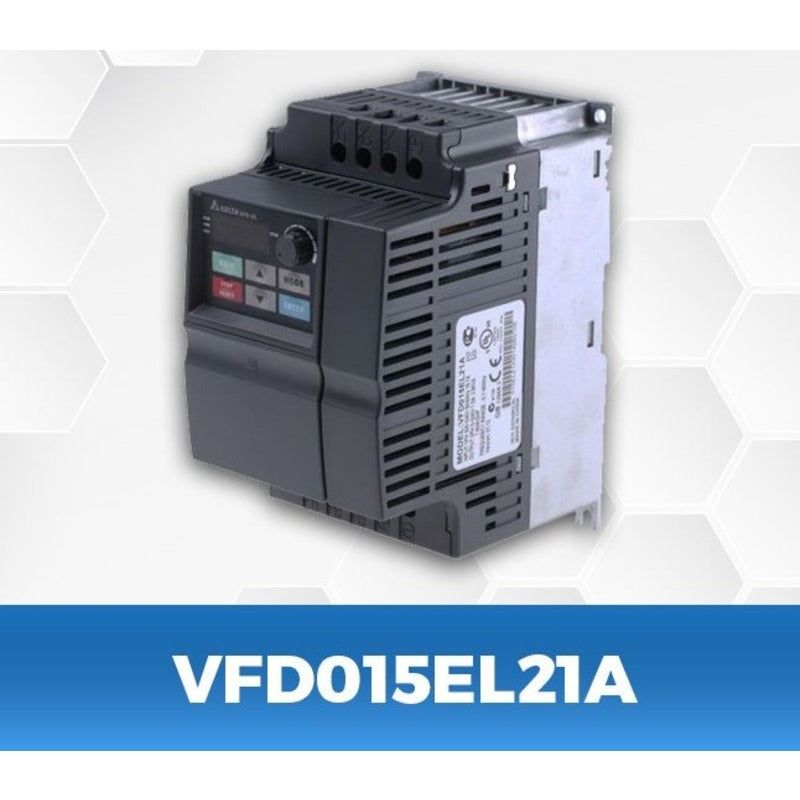

DELTA VFD015EL21A 2Hp/1.5Kw Single to three Phase AC Drive

1.5KW / 2HP, Inbuilt EMC filter, Non detachable display unit

The VFD-EL series is multiple function new generation micro type AC drive. It has built in EMI filter, RFI switch, easy DC bus sharing for side-by-side installation, high precision current detection, overload protection, and a built in keypad.

Delta VFD015EL21A – Multiple Functions – Micro Type Drives

Delta Products
AC Drives, VFD-EL Series

ITEM # VFD015EL21A
MFG # VFD015EL21A
Series VFD-EL

Drive, AC, 2HP, 230V 1-Phase Input/ 3-Phase Output

Specifications
Item Number: VFD015EL21A
Brand: Delta Products
Item Category: Drives
Subcategory: AC
Series: VFD-EL
Nominal Input VAC: 208;240 Volts AC
Input Range VAC: 200 to 240 Volts AC
Input Phase: 1
Application: Industrial
HP (CT): 2 Horsepower
Amps (CT): 7.5 Amps
Max. Frequency: 600 Hertz
Braking Type: DC Injection;Dynamic Braking Transistor Included
AC Line Regenerative?: No
Closed Loop: No
Motor Control-Max Level: V/Hz (Scalar)
Operator Controls: Built In
Enclosure Rating: IP20
Frame Size: B
Height: 6.85 Inches
Width: 3.94 Inches
Depth: 5.35 Inches
