0.75KW / 0.1HP, Non detachable display unit

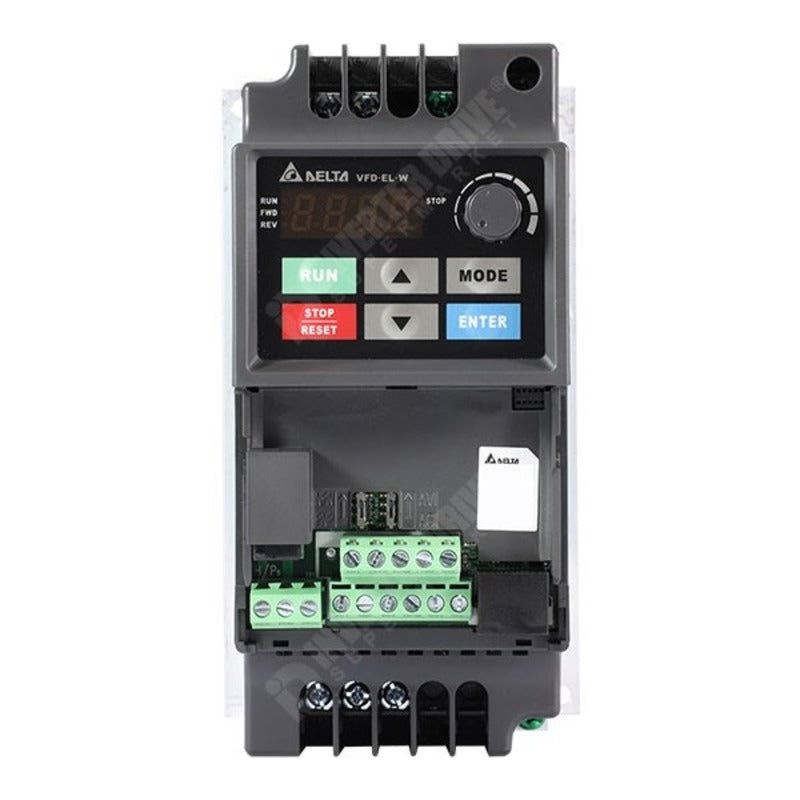

Delta Electronics VFD-EL-W Series AC Inverter for 0.75kW (1.0HP) 230V 3 Ph motor in VxF control or Sensorless Vector Control to 4.2A. Converts fixed frequency 1 phase 230V input to variable frequency three phase 230V, to control the speed of a standard AC induction motor.
W: Minimal and economic.
Dimensions: Frame A1 92mm Wide x 128.7mm Deep x 162mm High.
Enclosure Rating: IP20.
Weight: 1.0kg.
Overload: 150% x 60 seconds.
Speed Control Range: 0-400Hz.
Braking: No provision.
Keypad: Fixed on board with potentiometer (see options linked below for remote mounting additional keypad).
Features: 4 Digital Inputs NPN/PNP (3 programmable ), 1 Analogue Input, 1 Change-Over Relay Contact, 10V x 3mA Power Supply, 24V x 20mA Power Supply and RS485 Communications port and terminal.
Input Current: 9.3A.
Input Voltage: 200V-240V One Phase +/-10% at 50-60Hz (47-63Hz).
EMC Filter: None
Mounting: Cubicle mount via 35mm DIN rail, or surface mount via 4 x M5 screws on 82mm x 152mm centres.
Ambient: Rated -10°C to 50°C (not condensing) below 90% RH, or 40°C for multiple side by side mounting.
Ventilation Space: 50mm at sides, 120mm above and below (30mm between for multiple side by side mounting, refer to manual for further details.)
Cooling: Fanless design.
Part Number: VFD007EL21W-1.
