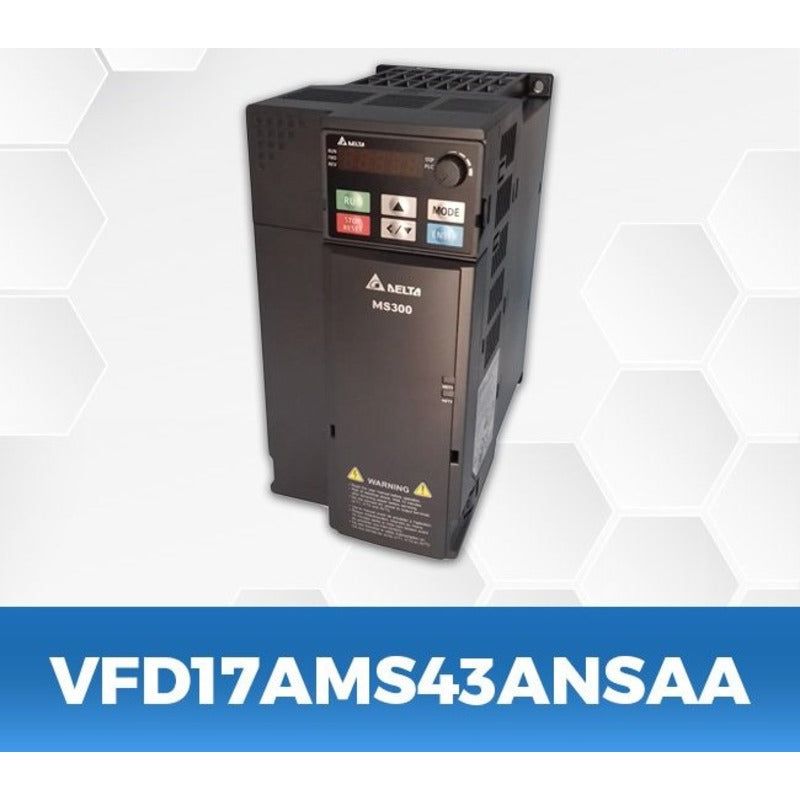

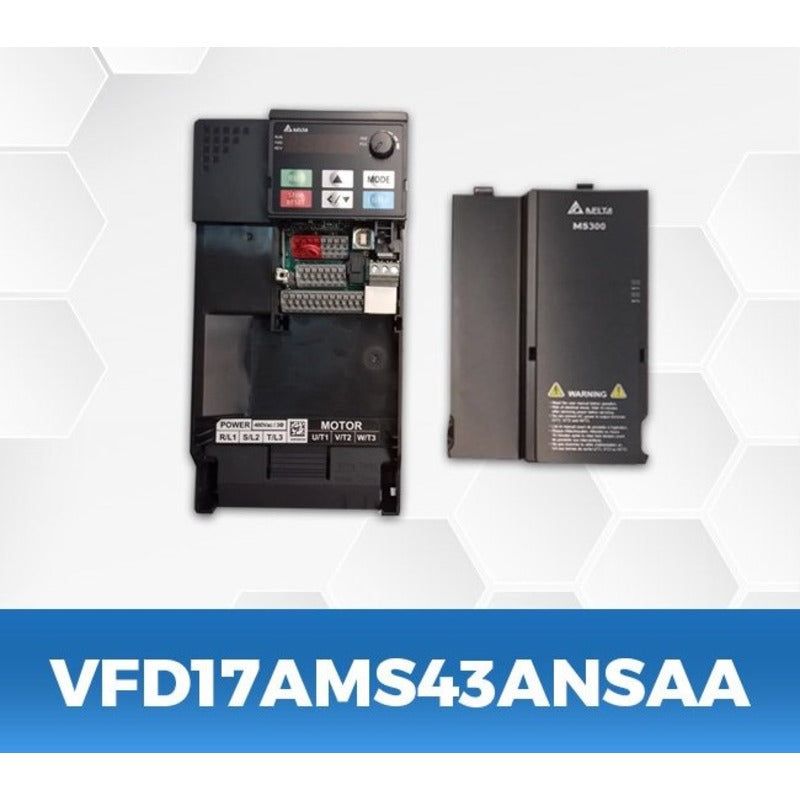

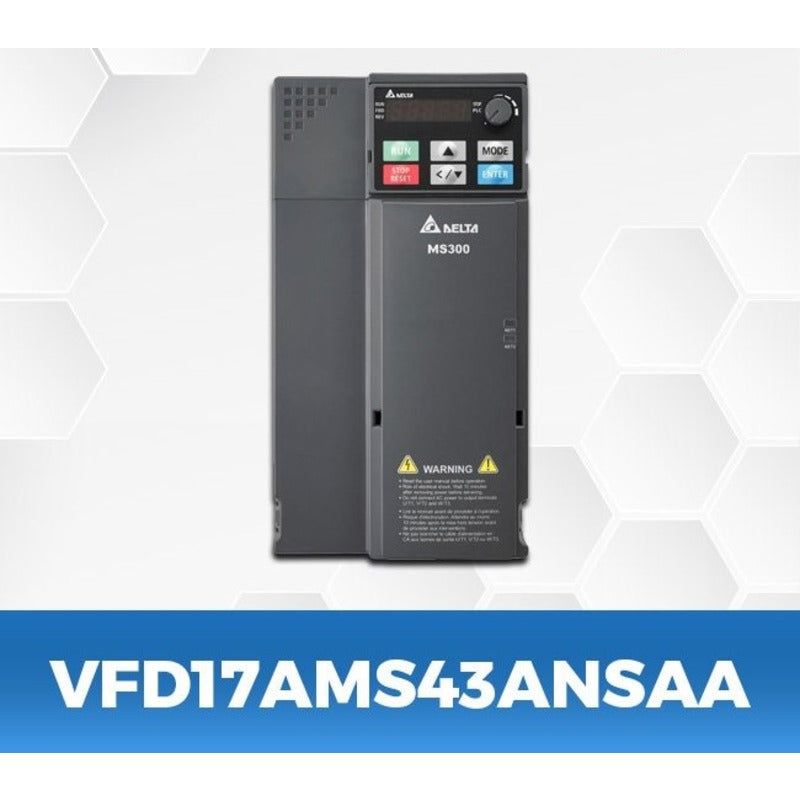

DELTA VFD17AMS43ANSAA 10Hp/7.5Kw three phase to three phase Ac Drive

7.5KW / 10HP, Detachable display unit

Standard Models (0-599 Hz) Without EMC Filter

Part Number: Delta VFD17AMS43ANSAA
Nominal Input VAC: 480 Volts AC
Input Range VAC: 380 to 480 Volts AC
HP: 10 HP
Amps (HD): 17A
Amps (ND): 20.5A
Input Phase: 3PH
Operator Controls : Sold Seperately, See Accessories
Brake Type: DC Injection; Dynamic Braking
Motor Control-Max Level: Open Loop Vector-(Sensorless Vector)
Closed Loop: NO
AC Line Regenerative: NO
Dynamic Braking Trans: Included
Enclosure Rating: IP20
Frame Size: D1
Height: 8.15 Inches
Width: 4.29 Inches
Depth: 6.06 Inches
Net Weight: 8 Lbs.

Delta’s MS300 series is a standard compact vector control drive that inherits Delta’s superior drive technology. It supports both IM and PM motor control for application flexibility and provides STO safety mechanism. Also built-in various essential functions, including PLC capacity for simple programming needs, a communication slot for various communication cards, and a USB port to make data uploads and downloads fast and easy. Saving space, reducing setup and wiring time, while providing high efficiency and stability system, all included in the MS300 series with drive size reduced up to 40%.
