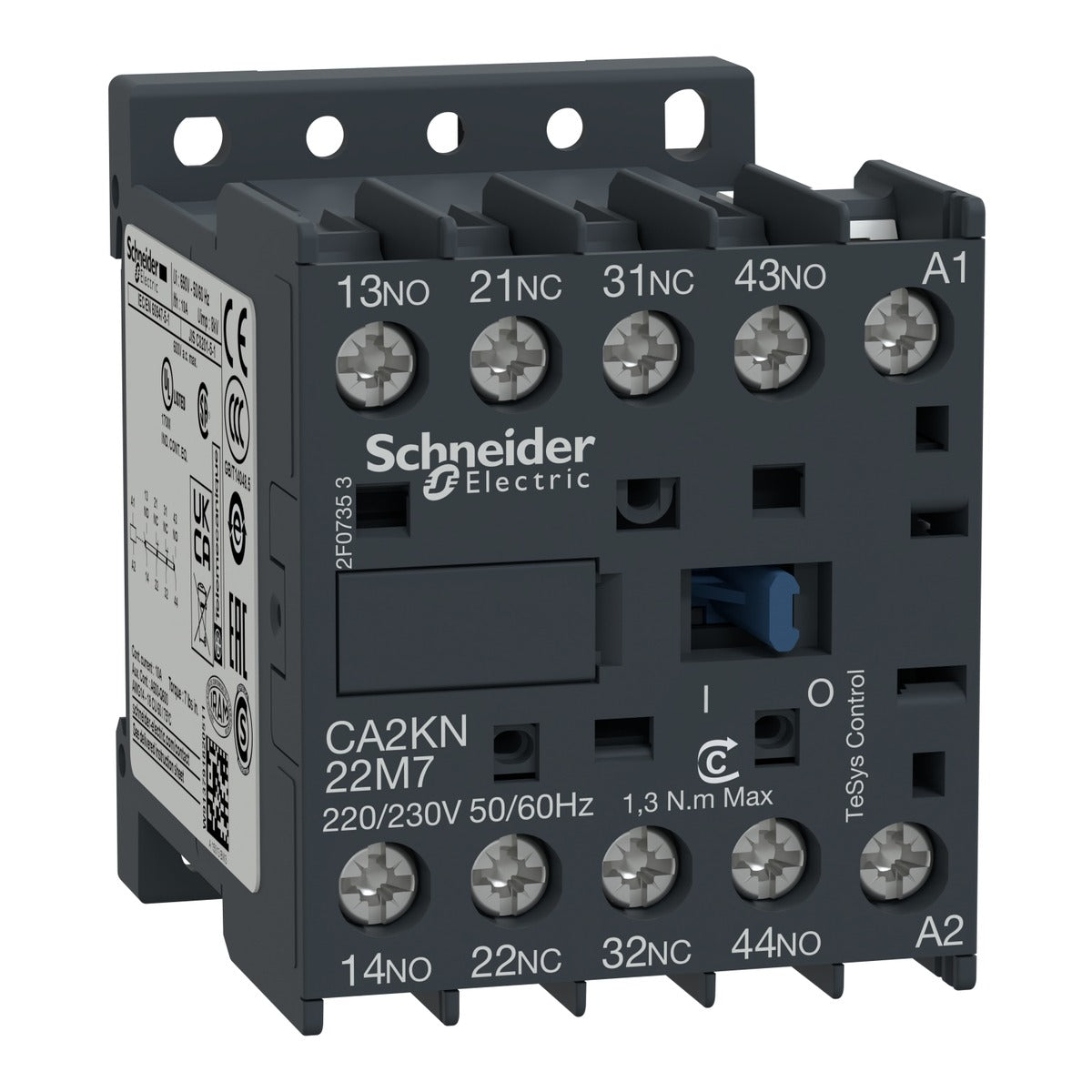

Schneider CA2KN22M7 Control Relay 2NO+2NC, coil voltage 220V AC, TeSys K
No reviews
Regular price
₹1,969
Regular price
₹3,090
Sale price
₹1,969
Incl. GST
Delivery ₹160 (₹99 in DL, UP, HR, HP) · free on orders of ₹3,001+ · Details
Price excl. GST
₹1,668.64
GST @ 18% included in above product price
Couldn't load pickup availability
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider LC1K0610M7, 6 Amp Mini Contactor, coil voltage 220V AC
₹1,546
Schneider LC1K0910M7, 9 Amp Mini Contactor, coil voltage 220V AC
₹1,617
Schneider LP1K0910BD, 9 Amp Mini Contactor, 24VDC coil
₹2,631
Schneider LC1K1210M7, 12 Amp Mini Contactor, coil voltage 220V AC
₹1,832
Schneider LP1K1210BD, 12 Amp Mini Contactor, 24VDC coil
₹3,047
Schneider LC1K1610M7, 16 Amp Mini Contactor, coil voltage 220V AC
₹2,166
Description
CA2KN22M7 is a Schneider Electric TeSys K control relay. Schneider lists it as: TeSys K control relay - 2 NO + 2 NC - <= 690 V - 220...230 V AC coil.
Contactor application
Control circuit
Uc control circuit voltage
220...230 V AC 50/60 Hz
Pole contact composition
2 NO + 2 NC
Utilisation category
AC-15
Technical specifications
| Make | Schneider Electric |
| Model | CA2KN22M7 |
| Product name | TeSys CAK |
| Product or component type | Control relay |
| Contactor application | Control circuit |
| Utilisation category | AC-15; DC-13 |
| Pole contact composition | 2 NO + 2 NC |
| Ue rated operational voltage | <= 690 V <= 400 Hz |
| Control circuit type | AC at 50/60 Hz |
| Uc control circuit voltage | 220...230 V AC 50/60 Hz |
| Ith conventional free air thermal current | 10 A (at 50 °C) |
| Ui rated insulation voltage | 690 V conforming to IEC 60947; 750 V conforming to VDE 0110 group C |
| Mounting support | Rail; Plate |
| Connections - terminals | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid; Screw clamp terminals 2 cable(s) 1.5…4 mm²solid |
| Operating time | 10...20 ms coil de-energisation and NO opening; 10...20 ms coil energisation and NO closing |
| Mechanical durability | 10 Mcycles |
| Maximum operating rate | 10000 cyc/h |
| Height | 58 mm |
| Width | 45 mm |
| Depth | 57 mm |
| Net weight | 0.18 kg |
| Standards | EN/IEC 60947-5-1; GB/T 14048.5; UL 60947-5-1; CSA C22.2 No 60947-5-1 |
| Product certifications | CB Scheme; CCC; UL; CSA |
| IP degree of protection | IP2X |
| Ambient air temperature for operation | -25…50 °C |
PDF
CA2KN22M7 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider CA2KN22M7
What is the contactor application of the CA2KN22M7?
Control circuit, as published by Schneider Electric.
What is the uc control circuit voltage of the CA2KN22M7?
220...230 V AC 50/60 Hz, as published by Schneider Electric.
What is the pole contact composition of the CA2KN22M7?
2 NO + 2 NC, as published by Schneider Electric.
Where can I download the CA2KN22M7 datasheet?
You can download the official PDF datasheet here: CA2KN22M7 datasheet (PDF).
Is the CA2KN22M7 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the CA2KN22M7 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
