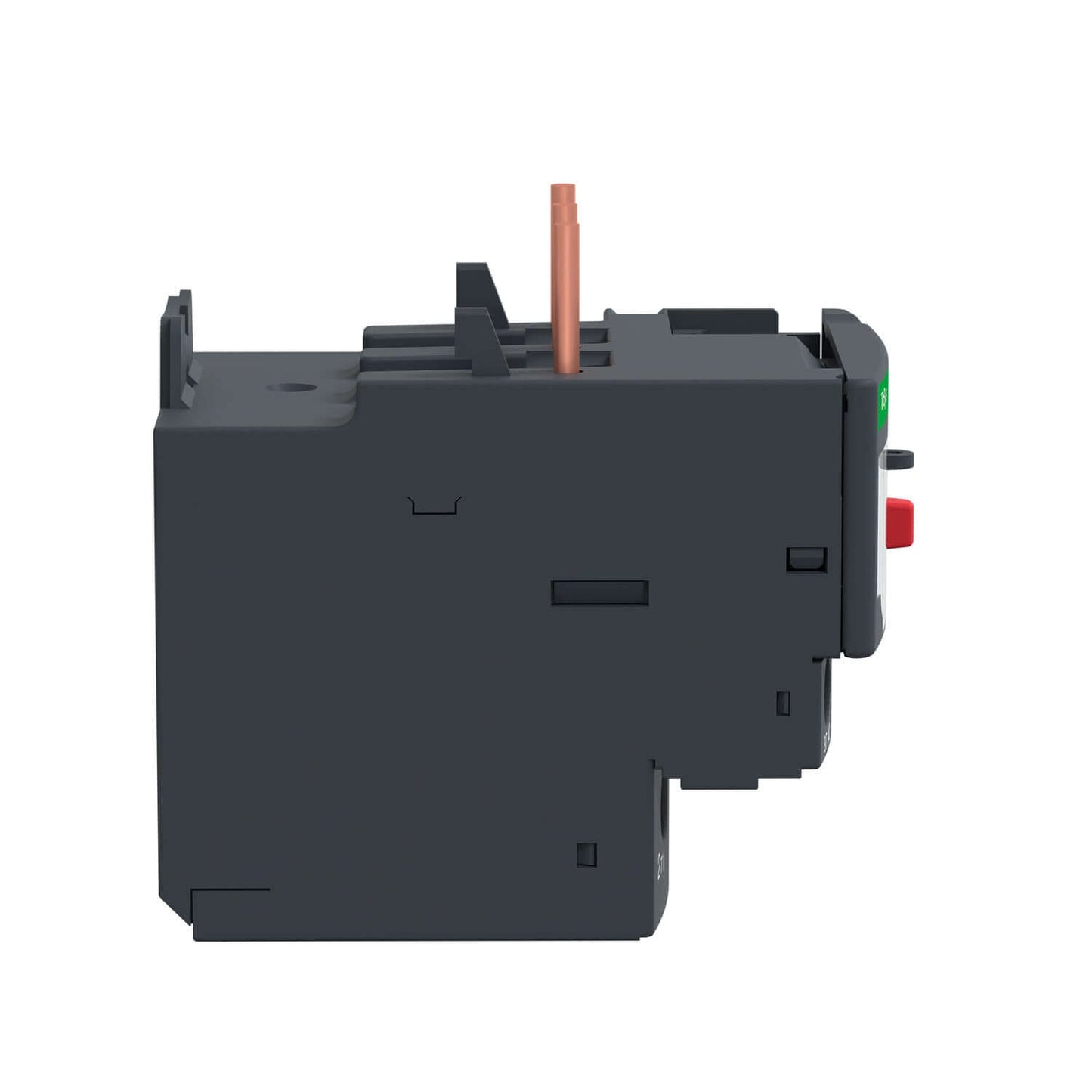

Schneider Over Load Relay LRD05 0.63-1.0 Amp

Name: Schneider Over Load Relay LRD05 0.63-1.0 Amp
Brand: SCHNEIDER
Price: 1890.00 INR
Availability: InStock

Rs. 1,890.00

~~Rs. 4,305.00~~ Rs. 1,890.00

Sale Sold out

Incl. all taxes • Shipping calculated at checkout.

Authorized Dealer GST Invoice PAN India Delivery Fast Dispatch

🚚 Delivered within 5 to 7 Days

Quantity

Need bulk pricing? Get exclusive rates for large orders

Chat on WhatsApp

TeSys LRD thermal overload relay, 1A/690V, thermal setting range 0.63-1A, tripping class 10A, for protection of 3-phase motors 0.25-0.37kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Range	TeSys TeSys Deca
product name	TeSys LRD TeSys Deca
Product or component type	Differential thermal overload relay
Device short name	LRD
Relay application	Motor protection
Product compatibility	LC1D25 LC1D38 LC1D12 LC1D32 LC1D18 LC1D09
Network type	AC DC
Thermal overload class	Class 10A conforming to IEC 60947-4-1
Thermal protection adjustment range	0.63…1 A
[Ui] rated insulation voltage	Power circuit: 600 V conforming to CSA Power circuit: 600 V conforming to UL Power circuit: 690 V conforming to IEC 60947-4-1

Complementary
Network frequency	0...400 Hz
Mounting support	Plate, with specific accessories Rail, with specific accessories Under contactor
Tripping threshold	1.14 +/- 0.06 Ir conforming to IEC 60947-4-1
Auxiliary contact composition	1 NO + 1 NC
[Ith] conventional free air thermal current	5 A for signalling circuit
Permissible current	3 A at 120 V AC-15 for signalling circuit 0.22 A at 125 V DC-13 for signalling circuit
[Ue] rated operational voltage	690 V AC 0...400 Hz for power circuit conforming to IEC 60947-4-1
Associated fuse rating	4 A gG for signalling circuit 4 A BS for signalling circuit
[Uimp] rated impulse withstand voltage	6 kV
Phase failure sensitivity	Tripping current 130 % of Ir on two phase, the last one at 0
Control type	Red push-button: stop Blue push-button: reset
Temperature compensation	-20…60 °C
Connections - terminals	Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible without cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² flexible with cable end Control circuit: screw clamp terminals 2 cable(s) 1…2.5 mm² solid without cable end Power circuit: screw clamp terminals 1 cable(s) 1.5…10 mm² flexible without cable end Power circuit: screw clamp terminals 1 cable(s) 1…4 mm² flexible with cable end Power circuit: screw clamp terminals 1 cable(s) 1…6 mm² solid without cable end
Tightening torque	Control circuit: 1.7 N.m - on screw clamp terminals Power circuit: 1.7 N.m - on screw clamp terminals
Height	66 mm
Width	45 mm
Depth	70 mm
Net weight	0.124 kg

Schneider Electric LRD05 Thermal Overload Relay 0.63–1.0A | TeSys D Motor Protection Relay

The Schneider Electric LRD05 Thermal Overload Relay is a high-quality motor protection relay designed to safeguard three-phase motors against overload, phase failure, and prolonged overcurrent conditions. Part of the renowned TeSys D series, the LRD05 features an adjustable current setting of 0.63–1.0 Amp, making it ideal for protecting low-current motors in industrial automation and motor control applications.

Engineered for seamless compatibility with Schneider Electric TeSys D contactors (LC1D09 to LC1D38), the LRD05 forms a dependable motor starter combination that enhances equipment safety and minimizes downtime. Its Class 10A tripping characteristic allows motors to withstand normal starting currents while providing fast and accurate protection during sustained overload conditions. The relay also offers phase-loss sensitivity, helping prevent costly motor damage caused by single-phasing or unbalanced loads.

Designed for industrial environments, the Schneider LRD05 is widely used by panel builders, machine manufacturers, OEMs, and maintenance engineers in motor control centers, automation panels, pumping systems, and manufacturing facilities. Its compact design, adjustable current settings, and manual or automatic reset options make it a reliable choice for protecting valuable electrical equipment.

Key Features

• Adjustable overload setting from 0.63A to 1.0A
• Genuine Schneider Electric TeSys D Series relay
• Class 10A thermal overload protection
• Protects against motor overload and phase failure
• Compatible with LC1D09 to LC1D38 contactors
• Manual and automatic reset options
• Built-in trip indication for easy fault diagnosis
• Compact and easy-to-install design
• Long service life with dependable performance

Technical Specifications

• Model: LRD05
• Brand: Schneider Electric
• Series: TeSys D (LRD Series)
• Product Type: Thermal Overload Relay
• Adjustable Current Range: 0.63–1.0A
• Tripping Class: Class 10A
• Number of Poles: 3 Pole
• Reset Type: Manual / Automatic
• Mounting: Direct Mount on TeSys D Contactors
• Compatible Contactors: LC1D09, LC1D12, LC1D18, LC1D25, LC1D32 & LC1D38

Applications

• Motor control centers (MCC Panels)
• Industrial control panels
• Three-phase motor protection
• Water pump control systems
• Compressors and HVAC equipment
• Conveyor systems
• Packaging and processing machinery
• Manufacturing plants
• PLC-based automation systems
• OEM machine panels

Why Buy From Voltkart?

• Genuine Schneider Electric products
• GST invoice provided with every order
• Pan India delivery in 5–7 days
• Bulk pricing available on WhatsApp
• Expert technical support for product selection

Frequently Asked Questions

Q: What motors can the Schneider LRD05 protect?

A: The LRD05 is designed for three-phase motors with a full-load current adjustable between 0.63A and 1.0A, making it ideal for low-power industrial motor applications.

Q: Is the Schneider LRD05 compatible with TeSys D contactors?

A: Yes. The LRD05 is designed for direct mounting with Schneider Electric LC1D09 to LC1D38 TeSys D contactors, creating a complete motor starter solution.
