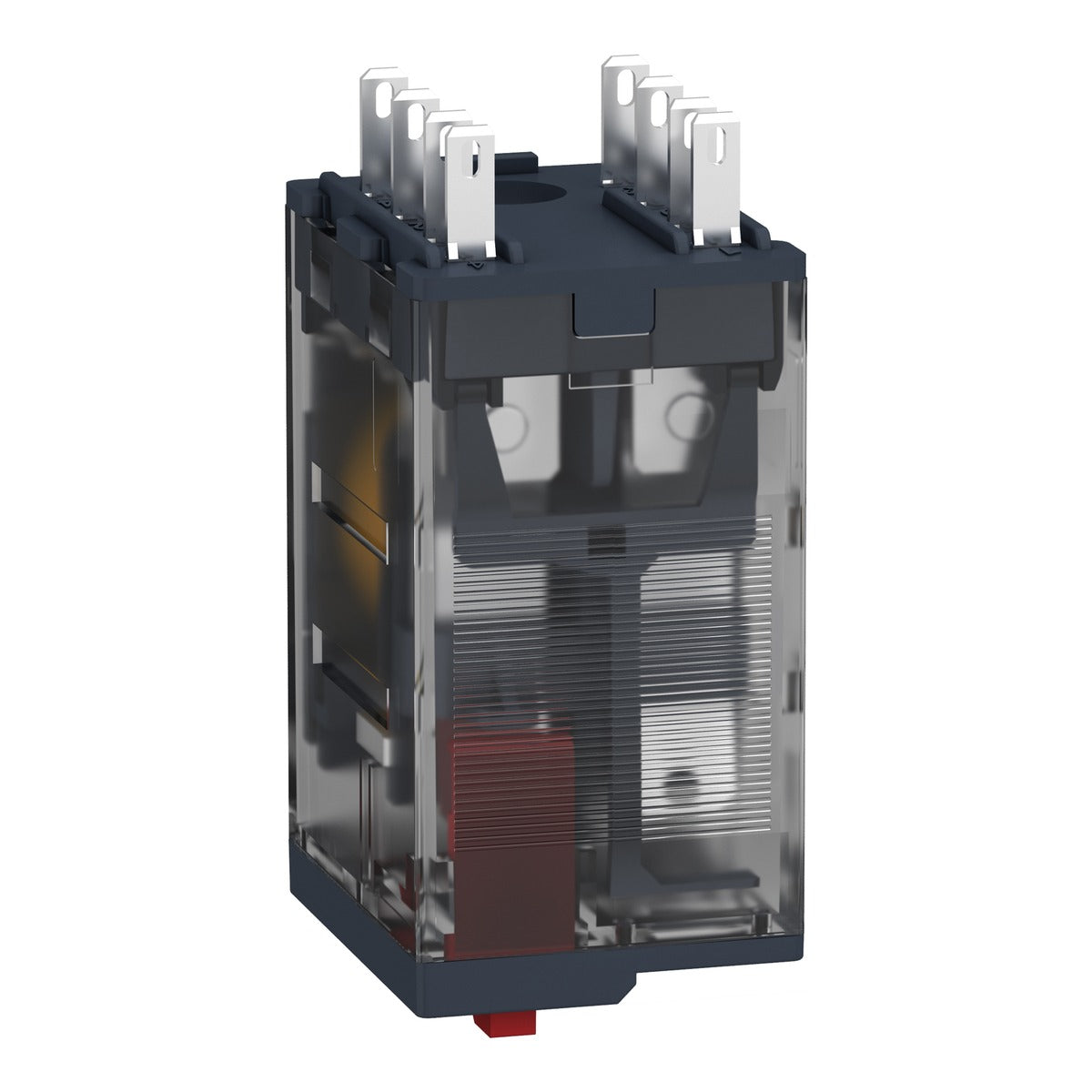

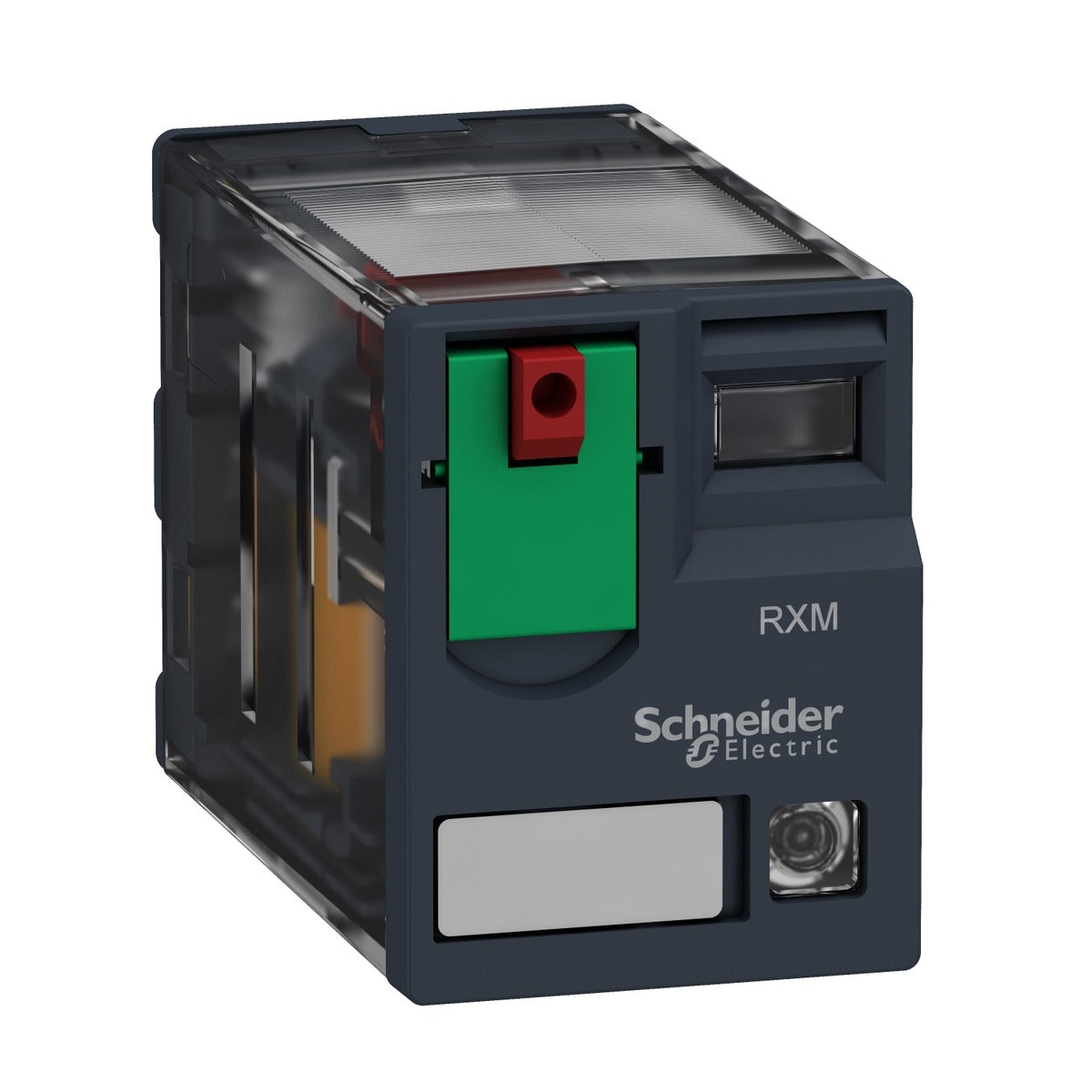

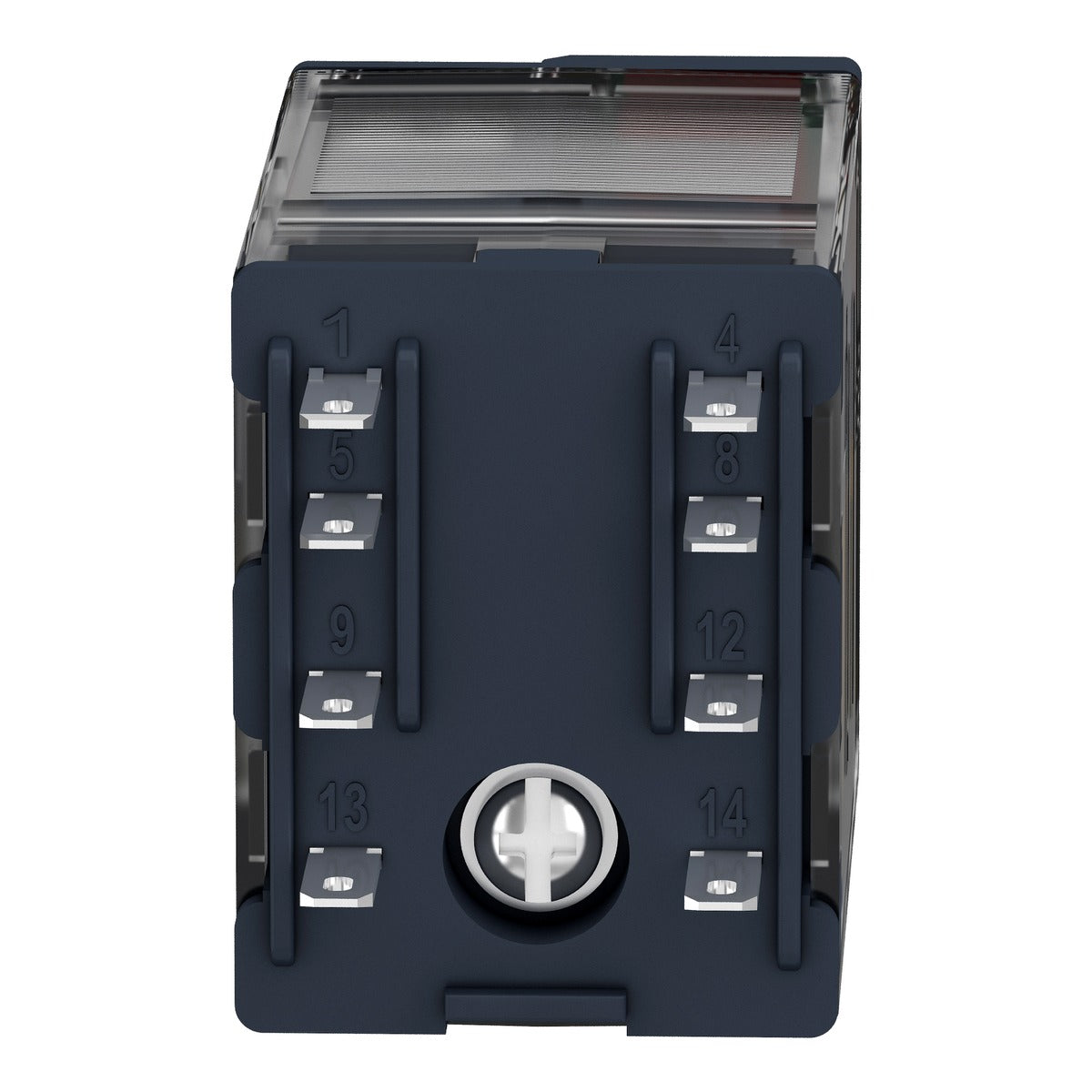

Schneider RXM2AB2P7 Miniature Plug-in Relay 2 C/O, 12A, 230V AC, 8 Pin

Rs. 530.00

~~Rs. 936.00~~ Rs. 530.00

43% off

Incl. all taxes • Shipping calculated at checkout.

Minimum order value is Rs 1,001. Add other items to reach it.

Price excl. GST Rs. 449.15

GST @ 18% included in above product price

Quantity

GST Invoice PAN India Delivery Fast Dispatch

Need bulk pricing? Get exclusive rates for large orders

🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere

Check delivery date

Description

RXM2AB2P7 is a Schneider Electric Harmony RXM miniature plug-in relay. Schneider lists it as: Miniature plug-in relay, 12 A, 2 CO, LED, 230 V AC.

Contacts type and composition

2 C/O

Uc control circuit voltage

230 V AC 50/60 Hz

Ithe conventional enclosed thermal current

12 A

Make	Schneider Electric
Model	RXM2AB2P7
Range of product	Harmony Electromechanical Relays
Series name	RXM series
Product or component type	Plug-in relay
Relay type	Miniature relay
Contacts type and composition	2 C/O
status LED	With
Control type	Lockable test button
Uc control circuit voltage	230 V AC 50/60 Hz
Ithe conventional enclosed thermal current	12 A
Continuous output current	10 A
Uimp rated impulse withstand voltage	4 kV during 1.2/50 µs
Electrical durability	100000 cycles for resistive load
Rated operational voltage limits	184...253 V AC
Ui rated insulation voltage	250 V conforming to IEC; 300 V conforming to CSA
Maximum switching voltage	250 V conforming to IEC
Operating time	20 ms
Maximum switching capacity	3000 VA/336 W
Mechanical durability	10000000 cycles
Compatibility code	RXM
Protection category	RT I
Contacts material	AgNi
Net weight	0.037 kg
Ambient air temperature for operation	-40…55 °C
IP degree of protection	IP40 conforming to IEC 60529
Standards	IEC 61810-1; UL 508; CSA C22.2 No 14
Product certifications	UL; Lloyd's; CE; CSA
