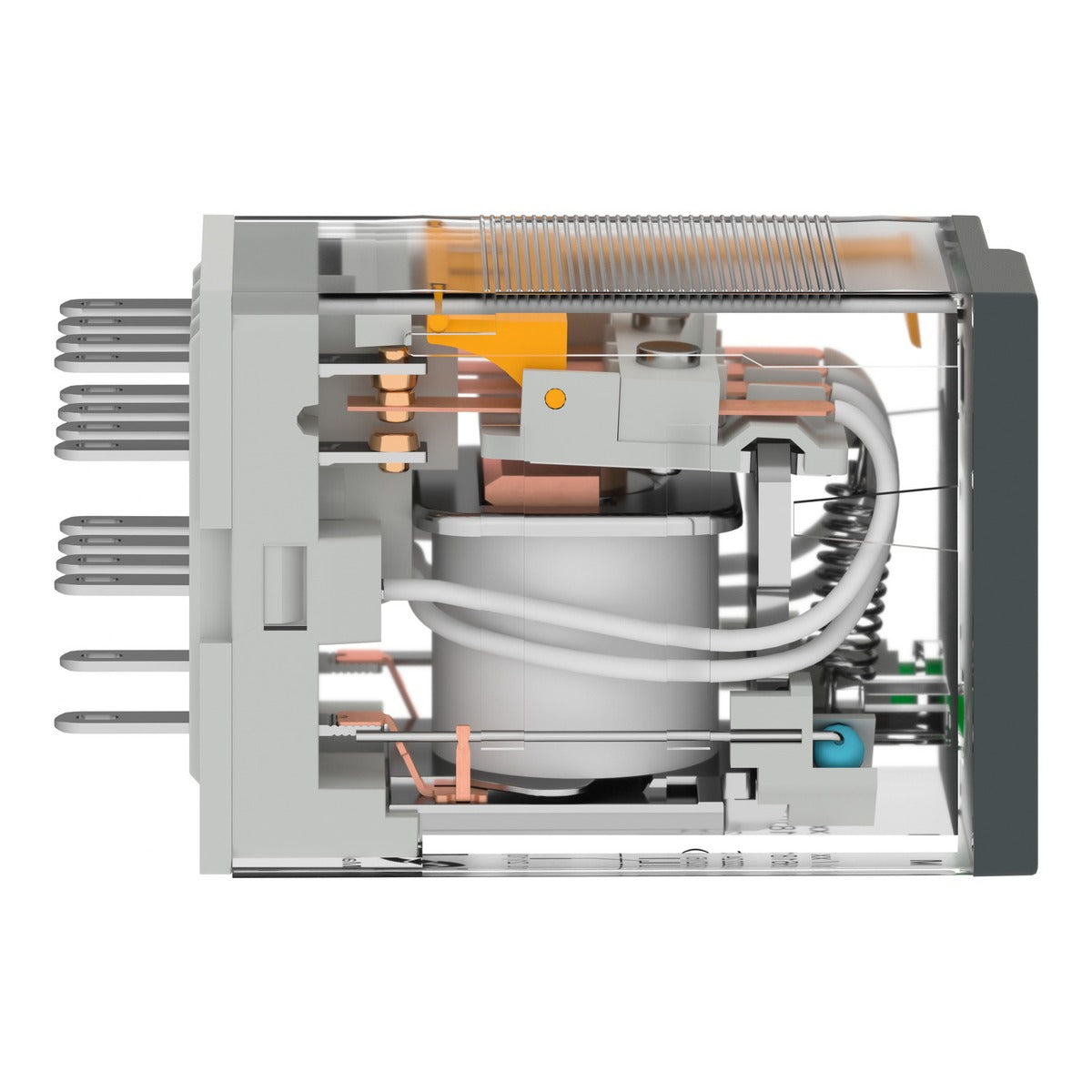

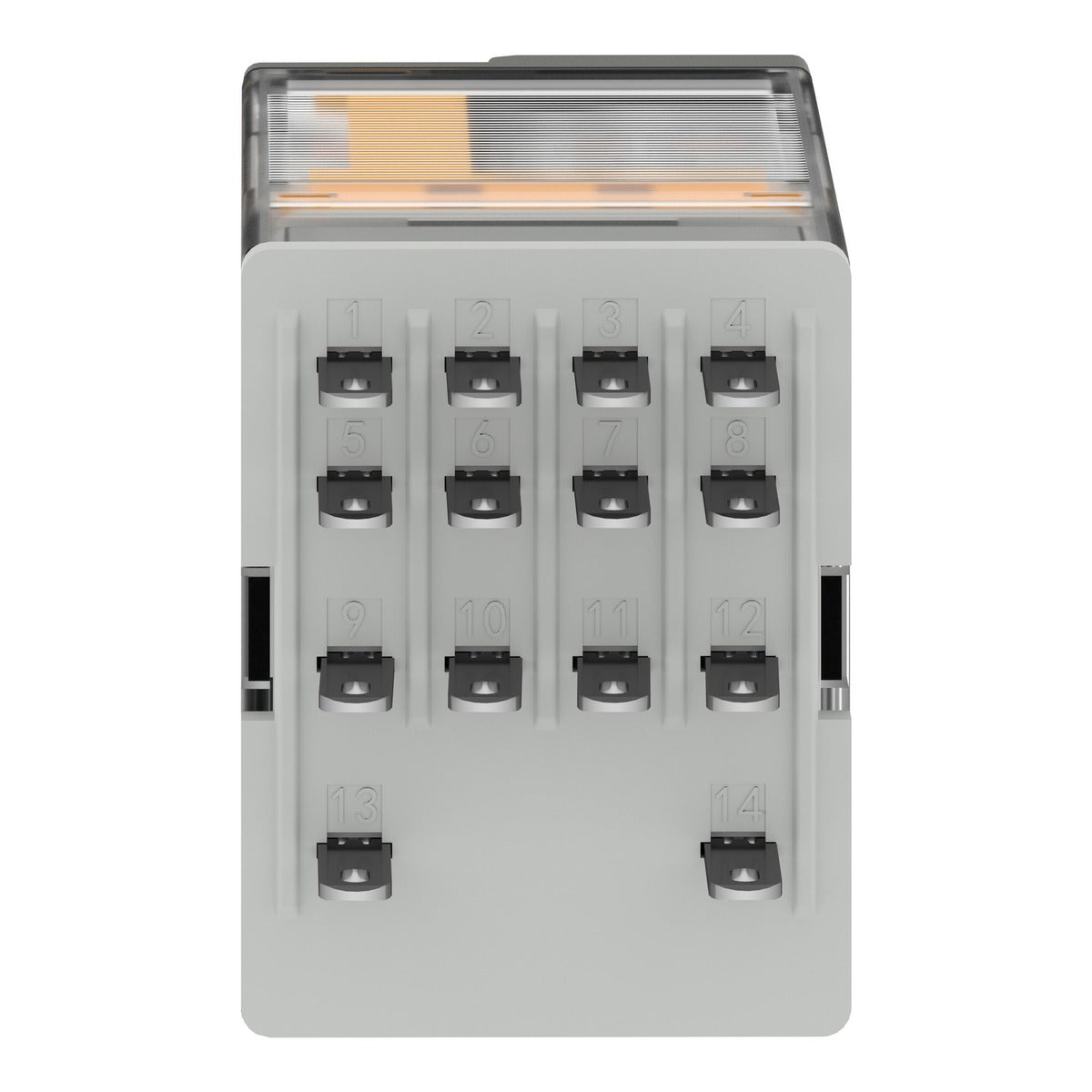

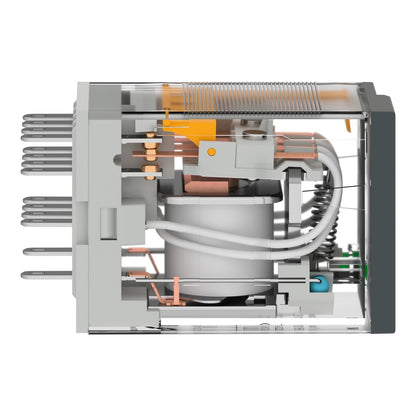

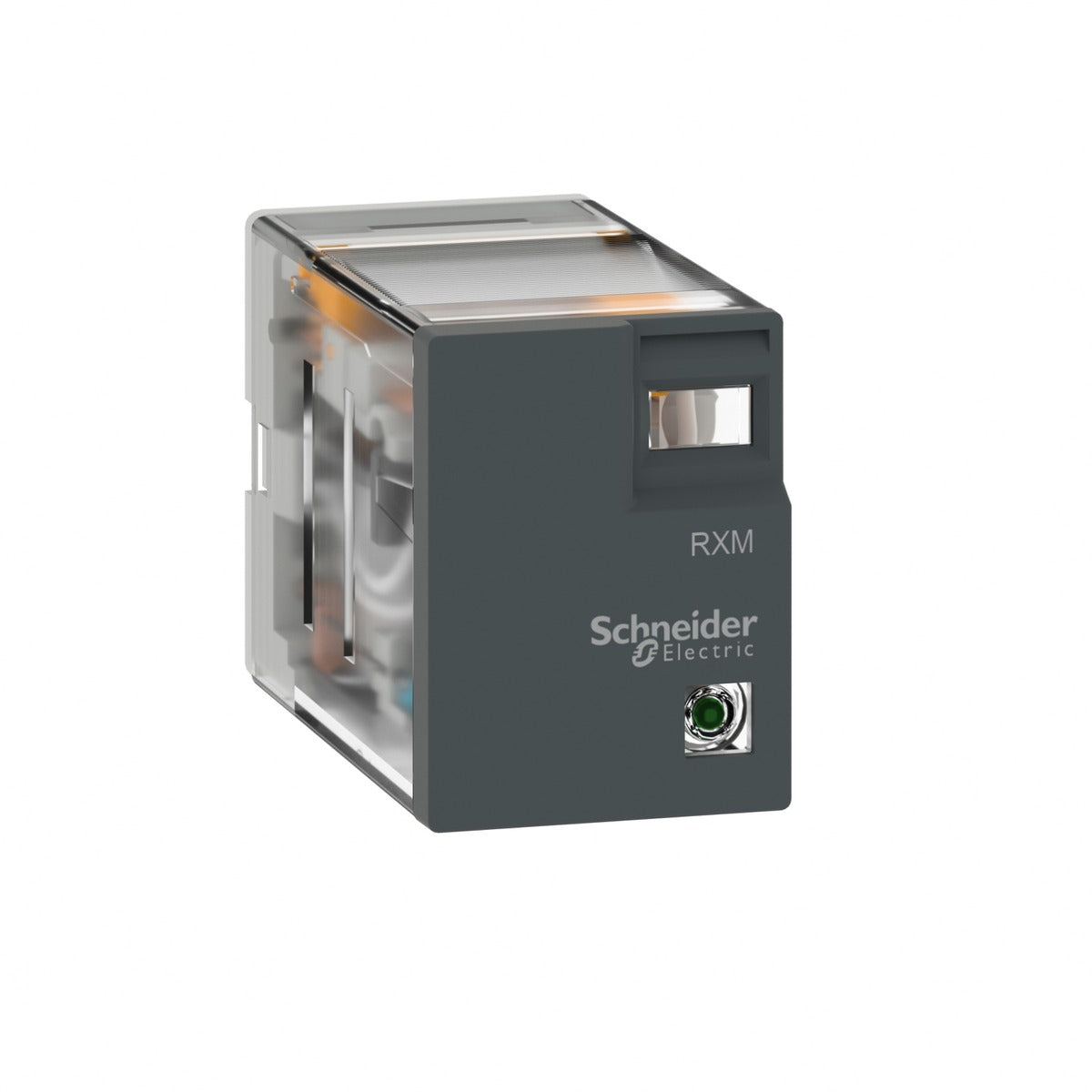

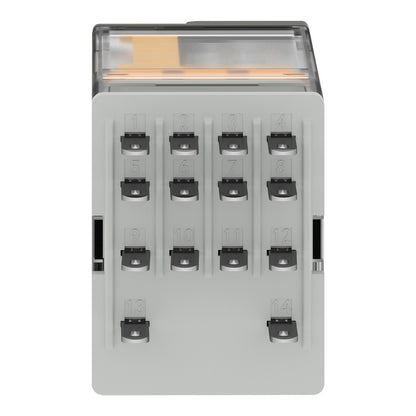

Schneider RXM4LB2P7 Miniature Plug-in Relay 4 C/O, 3A, 230V AC, 14 Pin
Regular price
₹410
Regular price
₹723
Sale price
₹410
Incl. all taxes • Shipping calculated at checkout.
Free delivery on orders above ₹3,000 · Delivery charges
Price excl. GST
₹347.46
GST @ 18% included in above product price
GST Invoice
PAN India Delivery
Fast Dispatch
1-year manufacturer warranty · Burnt or wiring damage not covered · Warranty terms
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
Schneider RXZE2M114M Socket for RXM2 / RXM4 Relays
₹238
Trinity Touch TT-IMRB-04024D1S-C-RL, 4 channel relay card, 24V DC
₹720
Trinity Touch TT-IMRB-08024D1S-C-RL, 8 channel relay card, 24V DC
₹1,030
Schneider RXM2LB2P7 Miniature Plug-in Relay 2 C/O, 5A, 230V AC, 8 Pin
₹360
Schneider RXM2AB2P7 Miniature Plug-in Relay 2 C/O, 12A, 230V AC, 8 Pin
₹530
Schneider RXM4AB2P7 Miniature Plug-in Relay 4 C/O, 6A, 230V AC, 14 Pin
₹716
Description
RXM4LB2P7 is a Schneider Electric Harmony RXM miniature plug-in relay. Schneider lists it as: Miniature plug-in relay - Harmony RXM2L - 4 C/O - 230 V AC - 3 A - with LED.
Contacts type and composition
4 C/O
Uc control circuit voltage
230 V AC 50/60 Hz
Ithe conventional enclosed thermal current
3 A
Technical specifications
| Make | Schneider Electric |
| Model | RXM4LB2P7 |
| Range of product | Harmony Electromechanical Relays |
| Series name | RXM series |
| Product or component type | Plug-in relay |
| Relay type | Miniature relay |
| Contacts type and composition | 4 C/O |
| Uc control circuit voltage | 230 V AC 50/60 Hz |
| Ithe conventional enclosed thermal current | 3 A at -40…55 °C |
| Control type | Without lockable test button |
| Rated operational voltage limits | 184...253 V AC |
| Ui rated insulation voltage | 250 V conforming to IEC |
| Maximum switching voltage | 250 V AC; 28 V DC |
| Maximum switching capacity | 750 VA AC; 84 W DC |
| Mechanical durability | 20000000 cycles |
| Electrical durability | 200000 cycles resistive load 23 °C; 100000 cycles resistive load at 55 °C |
| Protection category | RT I |
| Contacts material | Silver alloy (Ag/Ni) |
| Net weight | 0.032 kg |
| Standards | CE; IEC 61810-1 (iss. 2); UL 508 |
PDF
RXM4LB2P7 product datasheet
Official Schneider Electric datasheet (PDF) from se.com
Frequently asked questions about the Schneider RXM4LB2P7
What is the contacts type and composition of the RXM4LB2P7?
4 C/O, as published by Schneider Electric.
What is the uc control circuit voltage of the RXM4LB2P7?
230 V AC 50/60 Hz, as published by Schneider Electric.
What is the ithe conventional enclosed thermal current of the RXM4LB2P7?
3 A, as published by Schneider Electric.
Where can I download the RXM4LB2P7 datasheet?
You can download the official PDF datasheet here: RXM4LB2P7 datasheet (PDF).
Is the RXM4LB2P7 genuine, and do you provide a GST invoice?
Yes. Voltkart stocks genuine Schneider Electric products, and every order comes with a GST invoice.
Can I order the RXM4LB2P7 in bulk for OEM or panel-building use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
