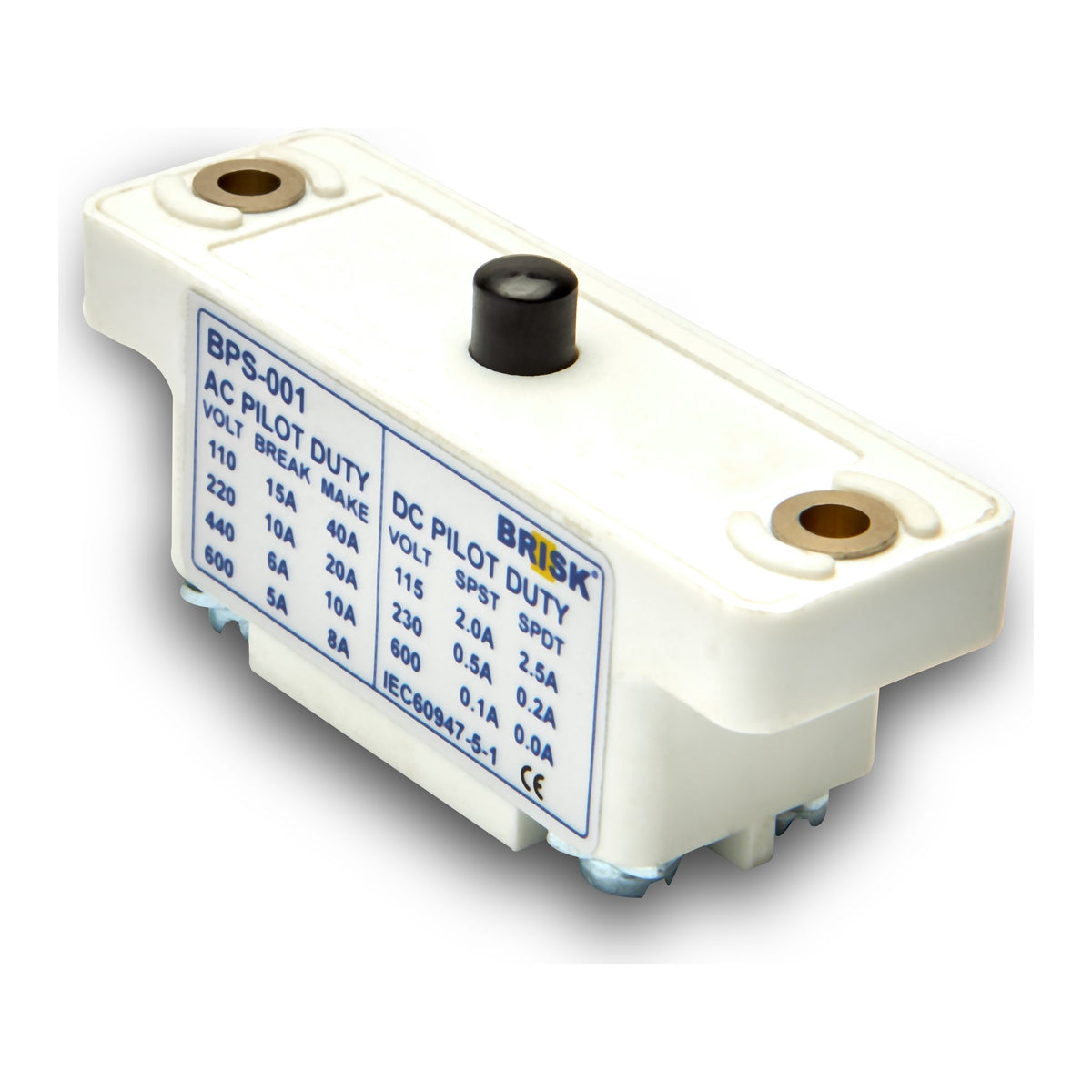

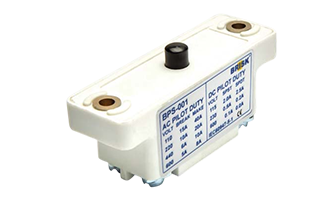

Brisk BPS-001 Precision Limit Switch with Pin Plunger (Basic)
Regular price
₹441.03
Regular price
₹575
Sale price
₹441.03
Incl. all taxes • Shipping calculated at checkout.
Minimum order is ₹1,001. Buy 3 of this item, or add other items to reach it.
Price excl. GST
₹373.75
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
I-Tech Micro Switch IT-03 (replacement for z15gw22b cm1704)
₹195
I-Tech Micro Switch IT-10(replacement for z15gqb & cm1307)
₹239
Brisk BFS-17/C2.2 Mini Foot Switch with wire
₹560.68
Brisk BFS-22/X Heavy Duty Foot Switch
₹2,448.26
I-Tech Limit Switch CZ7311
₹431
Limit Switch CZ7310
₹431
Description
BPS-001, Brisk Precision Limit Switch with Pin Plunger (Basic) – a precision limit switch with quick make-and-break action and silver contacts in a rugged PBT (FR grade) body, rated 10A at 500V AC. Made by Brisk Industries Pvt Ltd, India.
Download the BPS-001 datasheet (PDF) | Supplied by Voltkart, authorised distributor of Brisk, with GST invoice. Browse more limit switches or all Brisk products.
Rating
10A at 500V AC, 0.5A at 230V DC
Contacts
SPDT-DB (1 NO + 1 NC)
Actuator
Pin plunger (basic, without operator)
Mechanical life
1 million operations
Technical specifications
| Make | Brisk (Brisk Industries Pvt Ltd, India) |
| Model | BPS-001 |
| Rating | 10A at 500V AC, 0.5A at 230V DC |
| Contacts | SPDT-DB (1 NO + 1 NC) |
| Actuator | Pin plunger (basic, without operator) |
| Operating force | 500 gms |
| Contact material | Silver |
| Spring | Beryllium copper |
| Terminals | Brass |
| Body material | PBT, FR grade |
| Contact resistance | 10 mΩ |
| Insulation resistance | 100 MΩ |
| High voltage test | 1 kV AC between open contacts |
| Electrical life | 1 lakh operations |
| Mechanical life | 1 million operations |
| Standard | Complies with IEC 60947-5-1 |
PDF
Brisk BPS-001 datasheet
Official Brisk datasheet with dimensions, wiring and full specifications. PDF, 568 KB
Typical applications
- Limit and position detection on machine tools and presses
- Conveyors and material-handling lines
- General industrial machinery that needs a rugged 10A, 500V AC switch
- OEM machine building and panel retrofits
Frequently asked questions about the Brisk BPS-001
What is the rating of the Brisk BPS-001?
The BPS-001 is rated 10A at 500V AC, 0.5A at 230V DC. Contacts: SPDT-DB (1 NO + 1 NC). Brisk states that it complies with IEC 60947-5-1.
What contact configuration does the BPS-001 have?
The BPS-001 has SPDT-DB (1 NO + 1 NC) contacts. SPDT-DB means single-pole double-throw with double-break contacts: one normally open (NO) and one normally closed (NC) contact, so you can wire it as NO or NC.
Where is the Brisk BPS-001 used?
The BPS-001 is a Brisk limit switch with a pin plunger (basic, without operator) actuator. Typical uses: limit and position detection on machine tools and presses; conveyors and material-handling lines; general industrial machinery that needs a rugged 10A, 500V AC switch.
What is the difference between the BPS-001 and the BPS-002?
Both are Brisk limit switches. Comparing the datasheets: the BPS-001 has SPDT-DB (1 NO + 1 NC) contacts and the BPS-002 has DPDT-DB (2 NO + 2 NC). You can see the BPS-002 here: Brisk BPS-002 Precision Limit Switch with Pin Plunger (Basic). If you are unsure which one suits your machine, message us on WhatsApp 8800754881.
What is the operating life of the BPS-001?
The Brisk datasheet lists a mechanical life of 1 million operations and an electrical life of 1 lakh operations.
Can the BPS-001 switch DC loads?
Brisk lists 0.5A at 230V DC alongside the 10A at 500V AC rating. For DC loads, size the load to the DC rating.
Where can I download the BPS-001 datasheet?
You can download the official Brisk BPS-001 datasheet (PDF, 568 KB) from the datasheet section on this page: BPS-001 datasheet. It has the dimensions, wiring and full specifications.
Is the BPS-001 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised distributor of Brisk, so you receive genuine Brisk products, and every order comes with a GST invoice.
Can I order the BPS-001 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
