Brisk

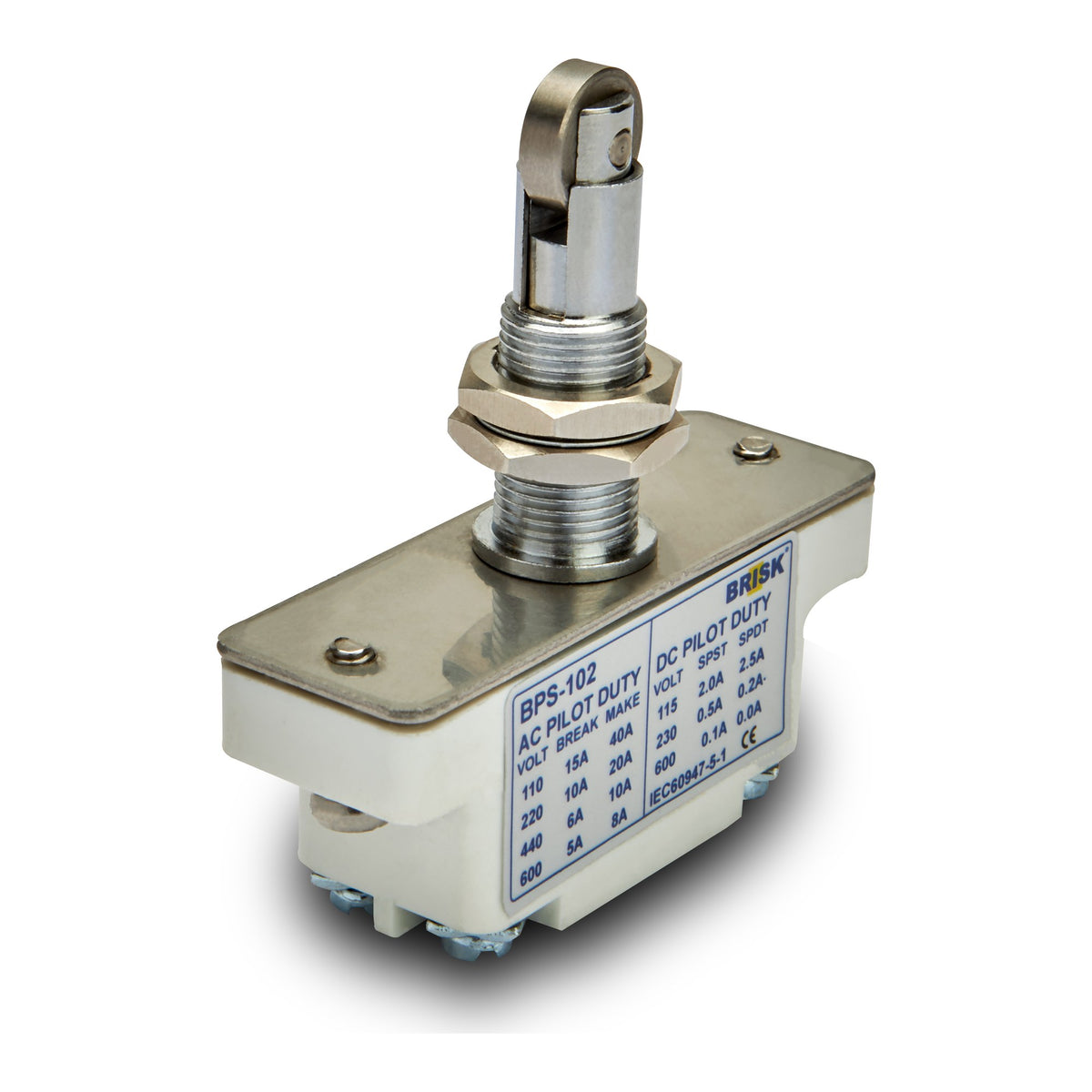

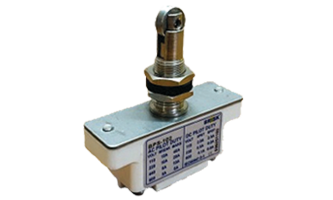

Brisk BPS-102 Precision Limit Switch with Panel Mount Roller Plunger (Cross)
Regular price
₹564.51
Regular price
₹736
Sale price
₹564.51
Incl. all taxes • Shipping calculated at checkout.
Minimum order is ₹1,001. Buy 2 of this item, or add other items to reach it.
Price excl. GST
₹478.40
GST @ 18% included in above product price
Authorized Dealer
GST Invoice
PAN India Delivery
Fast Dispatch
🚚 Delivery in 2-3 days (Delhi NCR, UP & Haryana), 5-6 days elsewhere
Works well with
I-Tech Micro Switch IT-03 (replacement for z15gw22b cm1704)
₹195
I-Tech Micro Switch IT-10(replacement for z15gqb & cm1307)
₹239
Brisk BFS-17/C2.2 Mini Foot Switch with wire
₹560.68
Brisk BFS-22/X Heavy Duty Foot Switch
₹2,448.26
I-Tech Limit Switch CZ7311
₹431
Limit Switch CZ7310
₹431
Description
BPS-102, Brisk Precision Limit Switch with Panel Mount Roller Plunger (Cross) – a precision limit switch with quick make-and-break action and silver contacts in a rugged PBT (FR grade) body, rated 10A at 500V AC. Made by Brisk Industries Pvt Ltd, India.
Download the BPS-102 datasheet (PDF) | Supplied by Voltkart, authorised distributor of Brisk, with GST invoice. Browse more limit switches or all Brisk products.
Rating
10A at 500V AC, 0.5A at 230V DC
Contacts
SPDT-DB (1 NO + 1 NC)
Actuator
Panel mount roller plunger, cross roller (top push roller operator)
Mechanical life
1 million operations
Technical specifications
| Make | Brisk (Brisk Industries Pvt Ltd, India) |
| Model | BPS-102 |
| Rating | 10A at 500V AC, 0.5A at 230V DC |
| Contacts | SPDT-DB (1 NO + 1 NC) |
| Actuator | Panel mount roller plunger, cross roller (top push roller operator) |
| Operating force | 500 gms |
| Contact material | Silver |
| Spring | Beryllium copper |
| Terminals | Brass |
| Body material | PBT, FR grade |
| Contact resistance | 10 mΩ |
| Insulation resistance | 100 MΩ |
| High voltage test | 1 kV AC between open contacts |
| Electrical life | 1 lakh operations |
| Mechanical life | 1 million operations |
| Standard | Complies with IEC 60947-5-1 |
PDF
Brisk BPS-102 datasheet
Official Brisk datasheet with dimensions, wiring and full specifications. PDF, 755 KB
Typical applications
- Limit and position detection on machine tools and presses
- Conveyors and material-handling lines
- General industrial machinery that needs a rugged 10A, 500V AC switch
- OEM machine building and panel retrofits
Frequently asked questions about the Brisk BPS-102
What is the rating of the Brisk BPS-102?
The BPS-102 is rated 10A at 500V AC, 0.5A at 230V DC. Contacts: SPDT-DB (1 NO + 1 NC). Brisk states that it complies with IEC 60947-5-1.
What contact configuration does the BPS-102 have?
The BPS-102 has SPDT-DB (1 NO + 1 NC) contacts. SPDT-DB means single-pole double-throw with double-break contacts: one normally open (NO) and one normally closed (NC) contact, so you can wire it as NO or NC.
Where is the Brisk BPS-102 used?
The BPS-102 is a Brisk limit switch with a panel mount roller plunger, cross roller (top push roller operator) actuator. Typical uses: limit and position detection on machine tools and presses; conveyors and material-handling lines; general industrial machinery that needs a rugged 10A, 500V AC switch.
What is the difference between the BPS-102 and the BPS-202?
Both are Brisk limit switches. Comparing the datasheets: the BPS-102 has SPDT-DB (1 NO + 1 NC) contacts and the BPS-202 has DPDT-DB (2 NO + 2 NC). You can see the BPS-202 here: Brisk BPS-202 Precision Limit Switch with Panel Mount Roller Plunger (Cross). If you are unsure which one suits your machine, message us on WhatsApp 8800754881.
What is the operating life of the BPS-102?
The Brisk datasheet lists a mechanical life of 1 million operations and an electrical life of 1 lakh operations.
Can the BPS-102 switch DC loads?
Brisk lists 0.5A at 230V DC alongside the 10A at 500V AC rating. For DC loads, size the load to the DC rating.
Where can I download the BPS-102 datasheet?
You can download the official Brisk BPS-102 datasheet (PDF, 755 KB) from the datasheet section on this page: BPS-102 datasheet. It has the dimensions, wiring and full specifications.
Is the BPS-102 genuine, and do you provide a GST invoice?
Yes. Voltkart is an authorised distributor of Brisk, so you receive genuine Brisk products, and every order comes with a GST invoice.
Can I order the BPS-102 in bulk for OEM or wholesale use?
Yes, please send your quantity through our wholesale enquiry page or message us on WhatsApp 8800754881, and our team will help with a quote.
