SMPS/ Power Supply

SMPS power supplies on Voltkart: 100 Mean Well models across 15 series plus Selec, from ₹508 including GST. Use the table to pick the right series, then open the model, or see every price in the Mean Well SMPS price list.

Switch-mode power supplies (SMPS) turn 230 V AC (or a three-phase supply) into a regulated DC voltage, usually 24 V DC for PLCs, sensors and relays, or 12 V for CCTV and LED. Voltkart is an authorised distributor of Mean Well and Selec. Prices checked 6 October 2026. Reviewed by Amit, Voltkart.

Which SMPS series for what (live prices)

Series	Type	Power	Outputs stocked	Price (incl. GST)	Start with

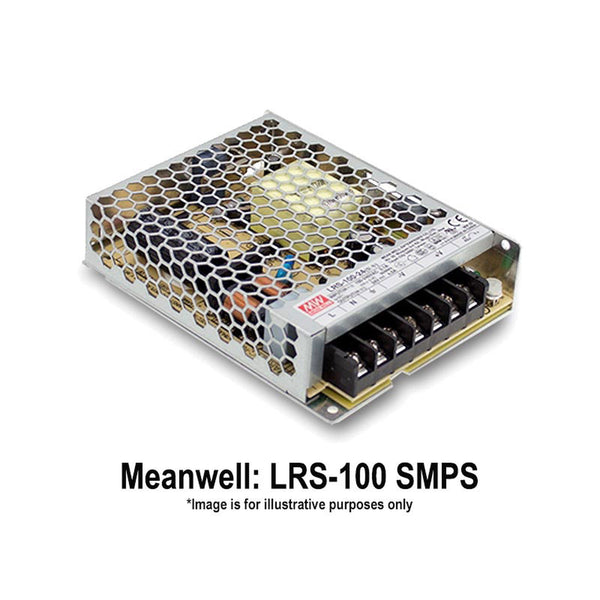

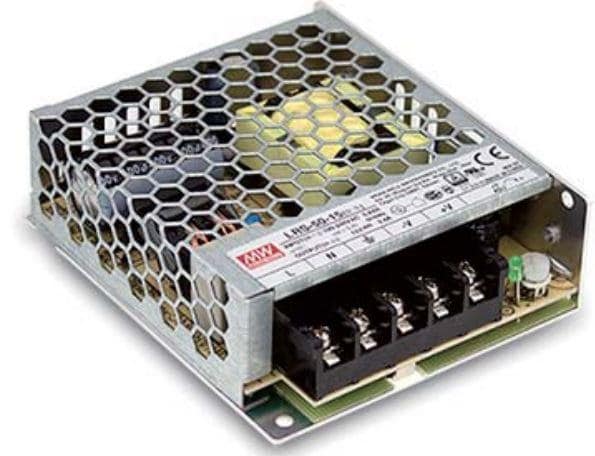

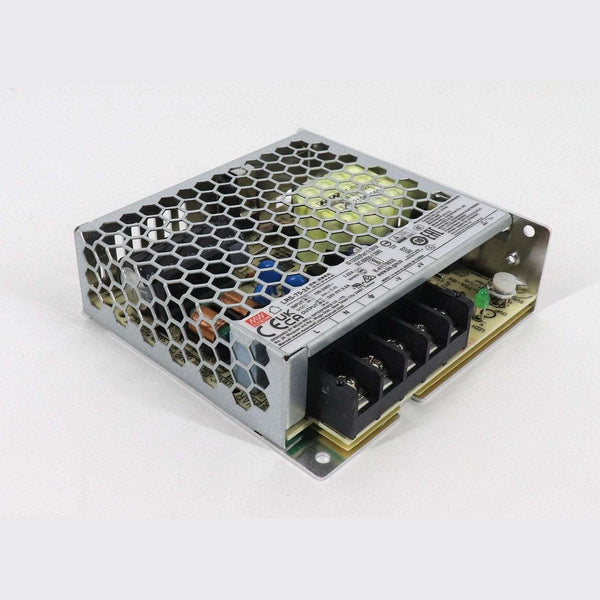

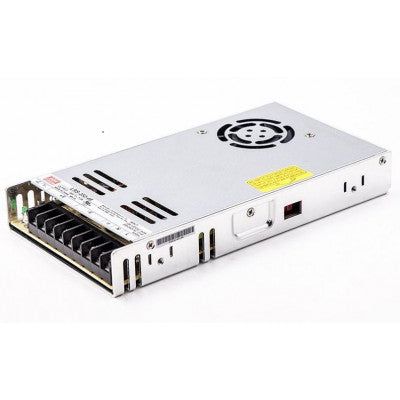

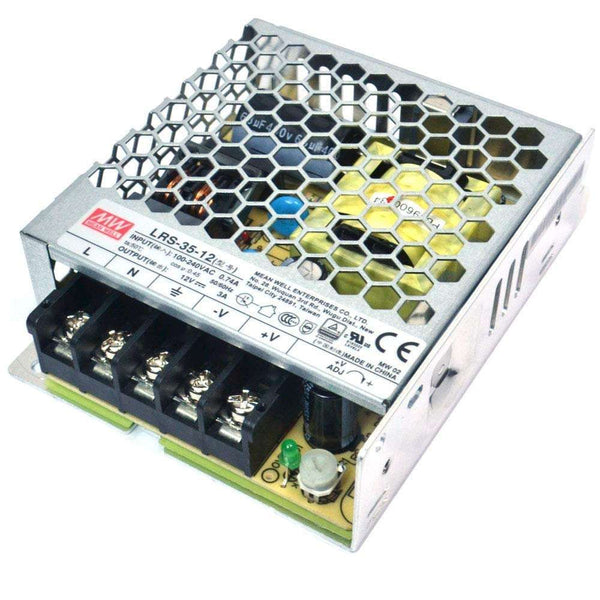

Mean Well LRS	Enclosed (metal)	35–600 W	5 V, 12 V, 15 V, 24 V, 36 V, 48 V	₹788–₹5,894	LRS-50-24 (36 models)

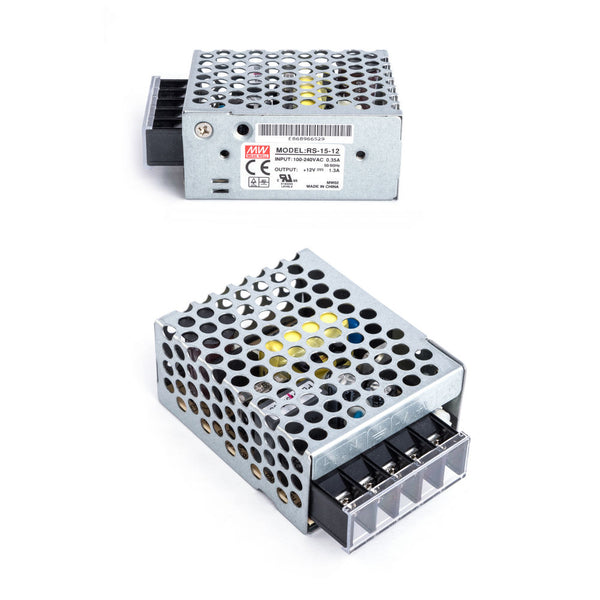

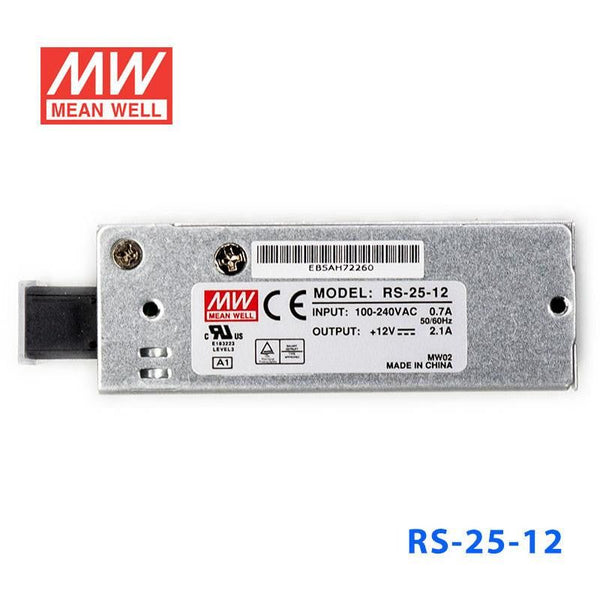

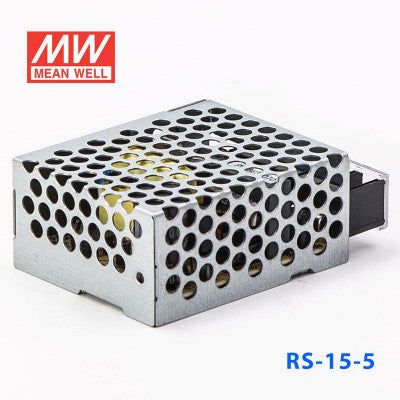

Mean Well RS	Enclosed	15–25 W	5 V, 12 V, 15 V, 24 V	₹756–₹940	RS-15-5 (5 models)

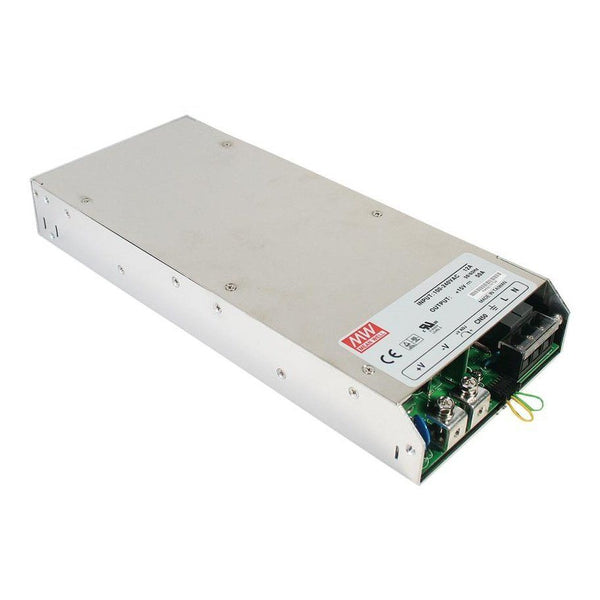

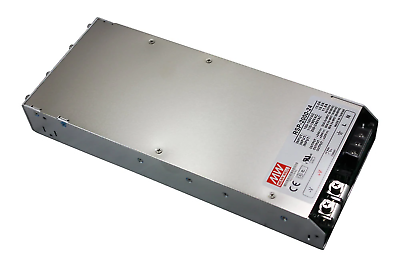

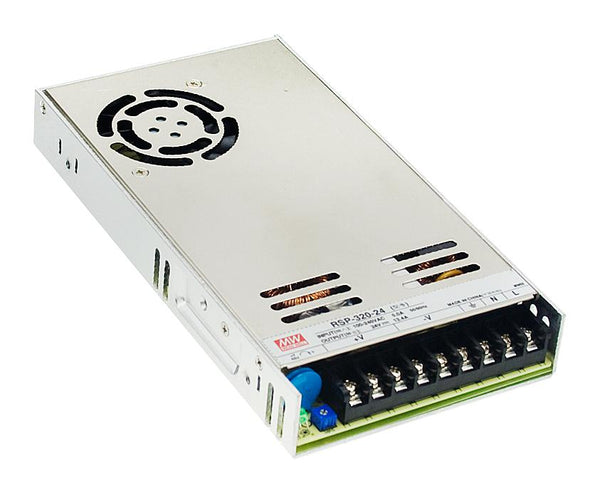

Mean Well RSP	Enclosed (metal), PFC	320–3000 W	12 V, 24 V, 48 V	₹4,806–₹53,428	RSP-320-24 (8 models)
Mean Well MDR	DIN rail	10–60 W	5 V, 12 V, 24 V	₹1,145–₹1,922	MDR-10-5 (12 models)
Mean Well HDR	DIN rail (slim, step shape)	60 W	12 V, 24 V	₹1,674–₹1,814	HDR-60-12 (2 models)
Mean Well EDR	DIN rail	120 W	12 V, 24 V, 48 V	₹2,230–₹2,351	EDR-120-24 (3 models)
Mean Well NDR	DIN rail, PFC	240–480 W	24 V, 48 V	₹4,536–₹9,474	NDR-240-24 (3 models)
Mean Well SDR	DIN rail, PFC	960 W	24 V	₹26,438	SDR-960-24 (1 model)
Mean Well WDR	DIN rail, 2-line input	120 W	24 V	₹6,720	WDR-120-24 (1 model)
Mean Well TDR	DIN rail, 3-phase input	240–960 W	24 V	₹8,262–₹26,438	TDR-240-24 (3 models)

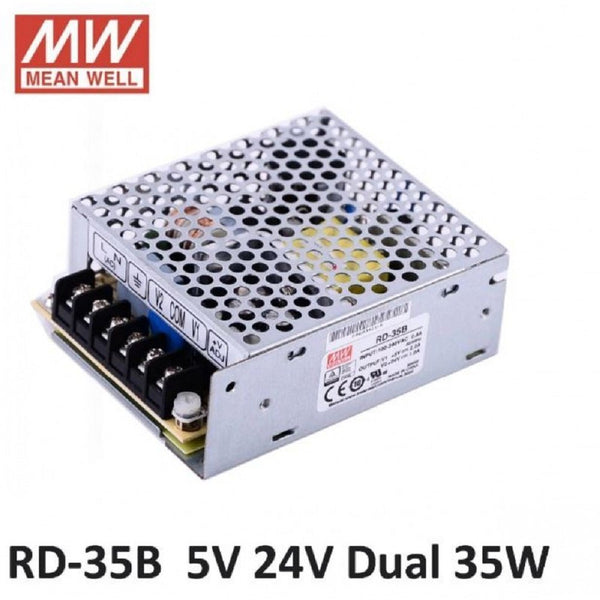

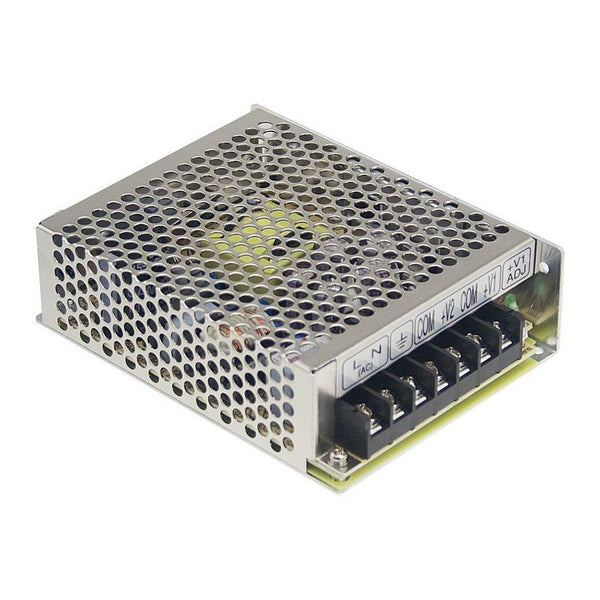

Mean Well RD	Enclosed, dual output	35–125 W	multiple	₹1,382–₹3,186	RD-35B (9 models)

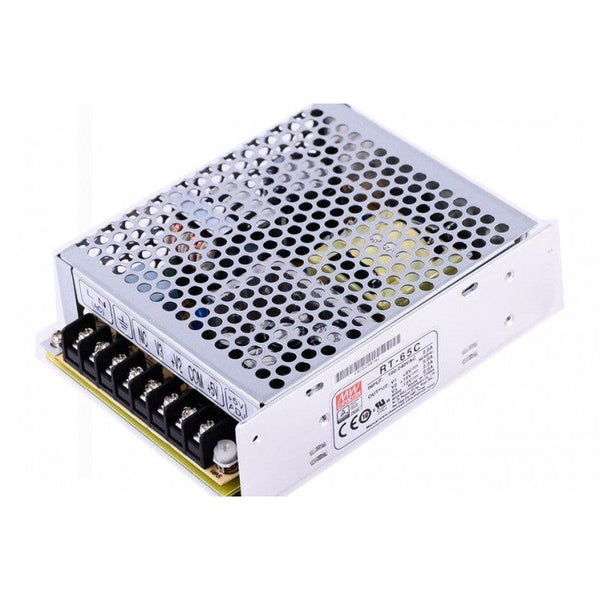

Mean Well RT	Enclosed, triple output	50–125 W	multiple	₹1,706–₹3,078	RT-50A (7 models)
Mean Well RQ	Enclosed, quad output	65–125 W	multiple	₹2,214–₹3,402	RQ-65D (5 models)
Mean Well APV	LED driver (constant voltage)	8–35 W	12 V, 24 V	₹508–₹1,145	APV-8-24 (4 models)
Mean Well LPV	LED driver, IP67	100 W	24 V	₹2,413	LPV-100-24 (1 model)
Selec RPS	DIN rail (Selec)	60–120 W	24 V	₹1,342–₹1,560	RPS60-24 (2 models)
Selec RP	DIN rail (Selec)	26 W	24 V	₹1,100	RP-2M-1.1A-24VDC (1 model)

"Start with" links to the lowest-priced model in each series. Every product page shows the live price and datasheet.

What each series is for

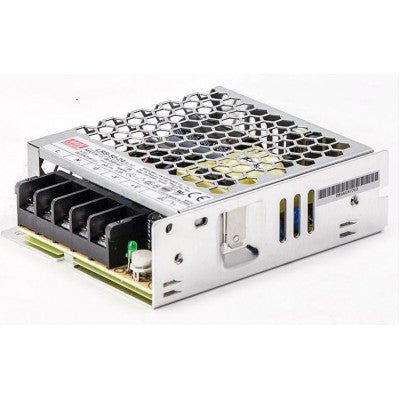

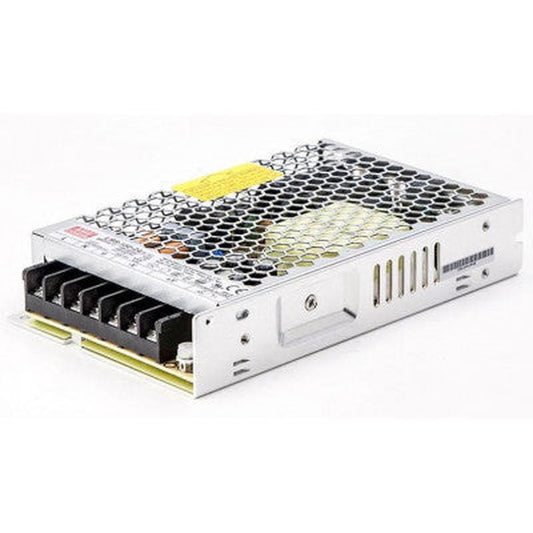

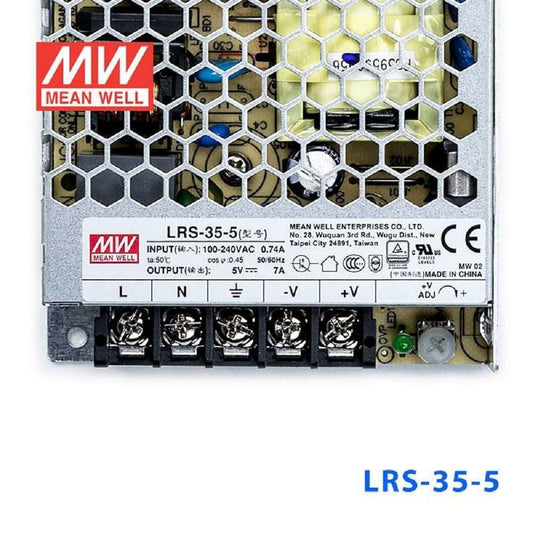

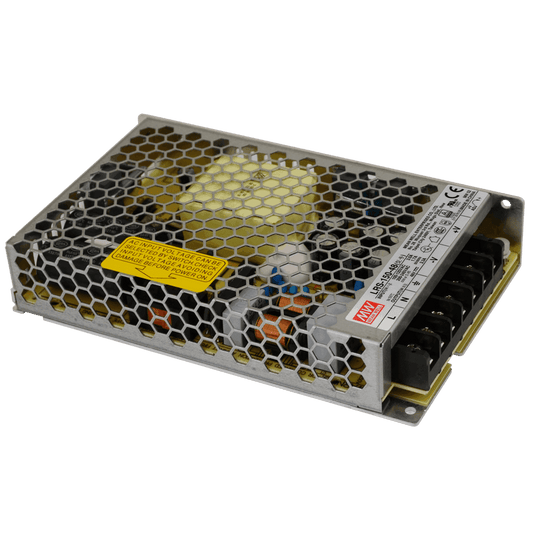

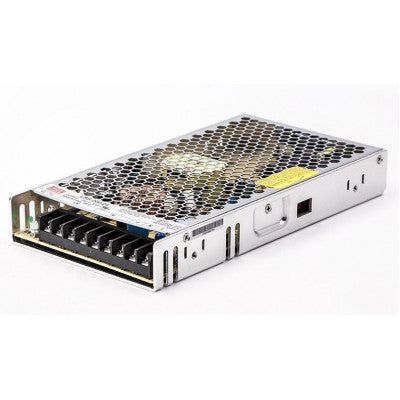

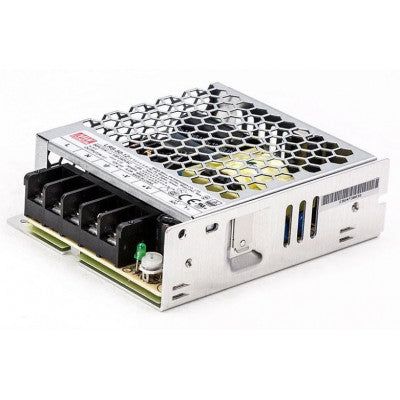

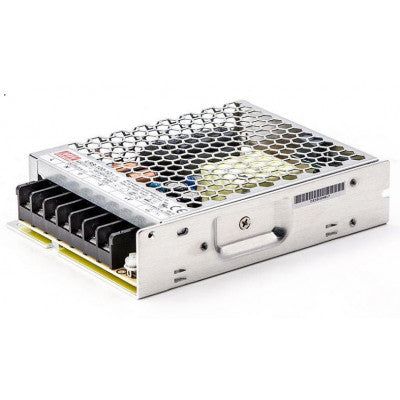

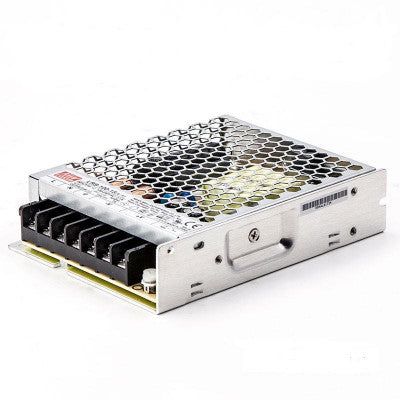

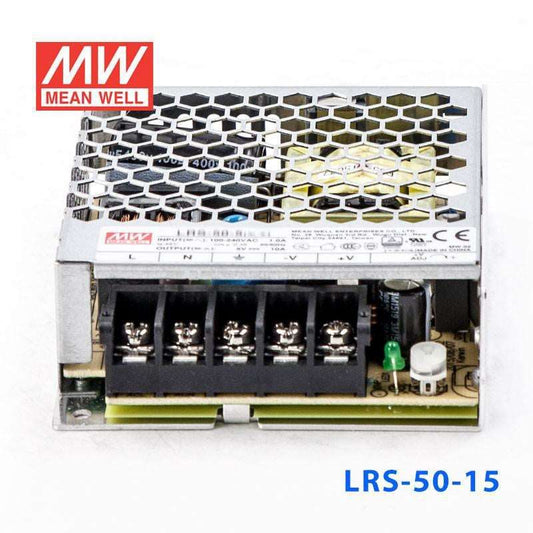

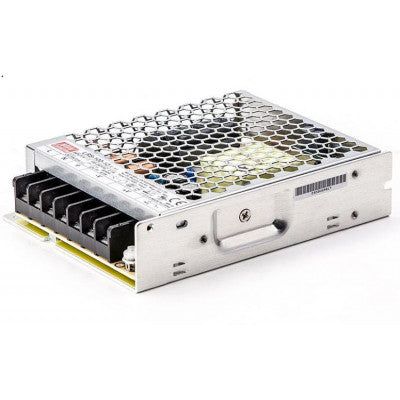

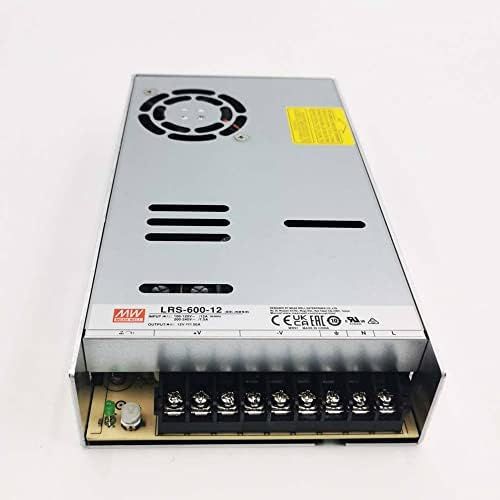

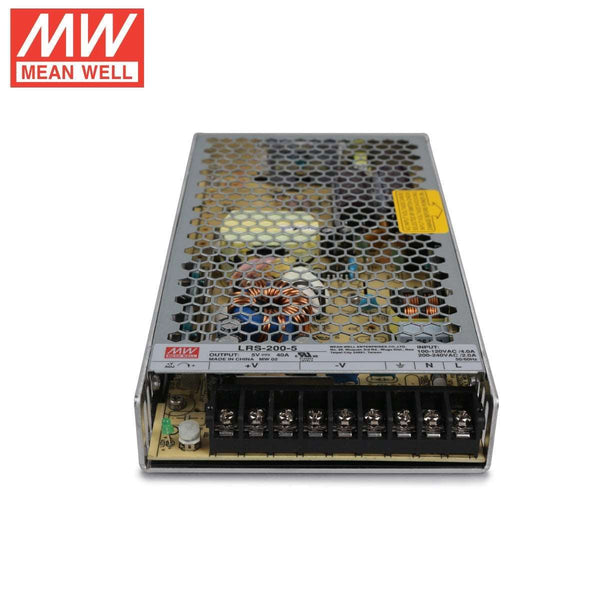

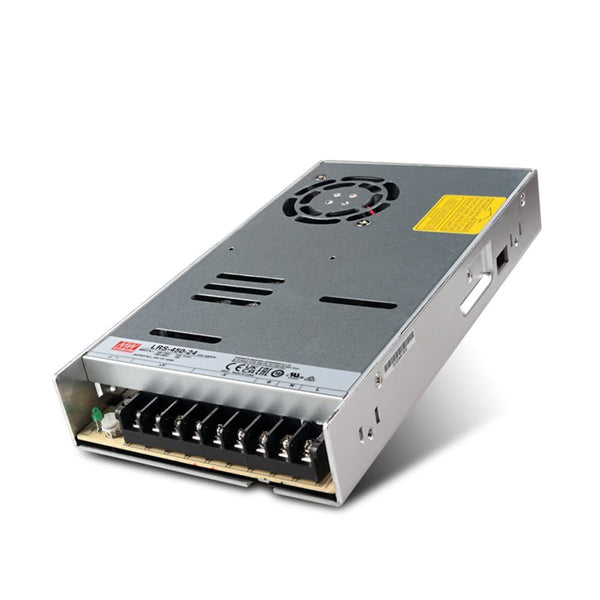

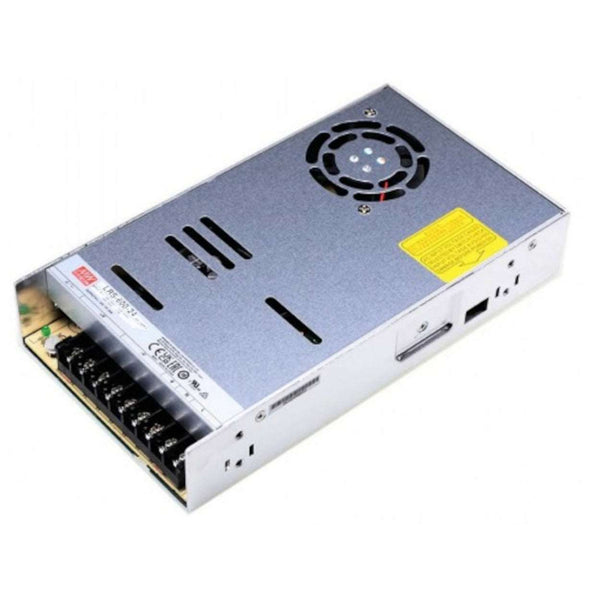

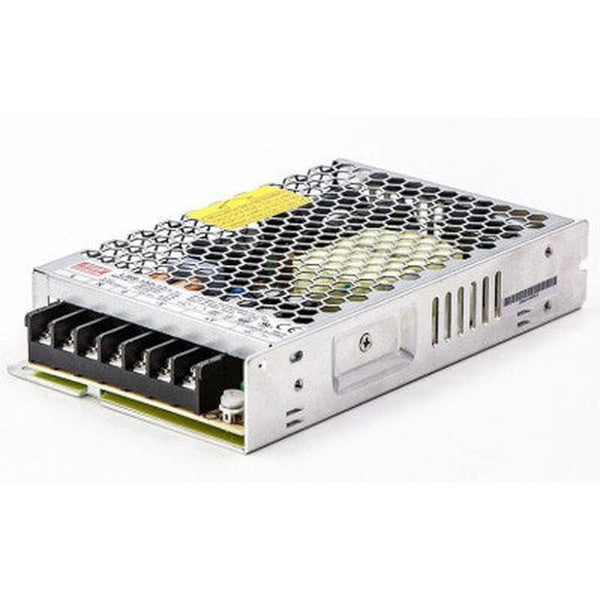

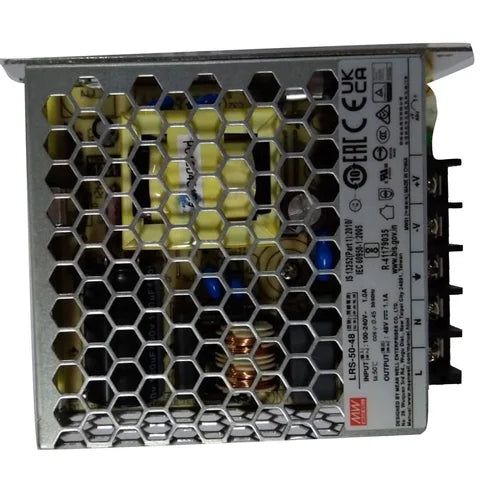

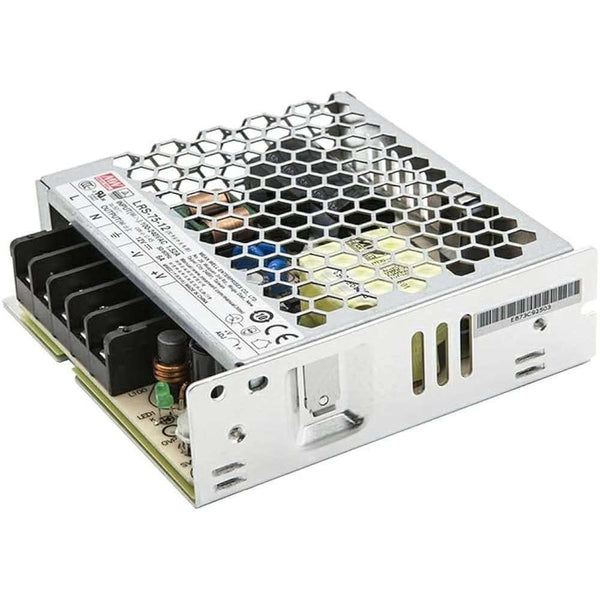

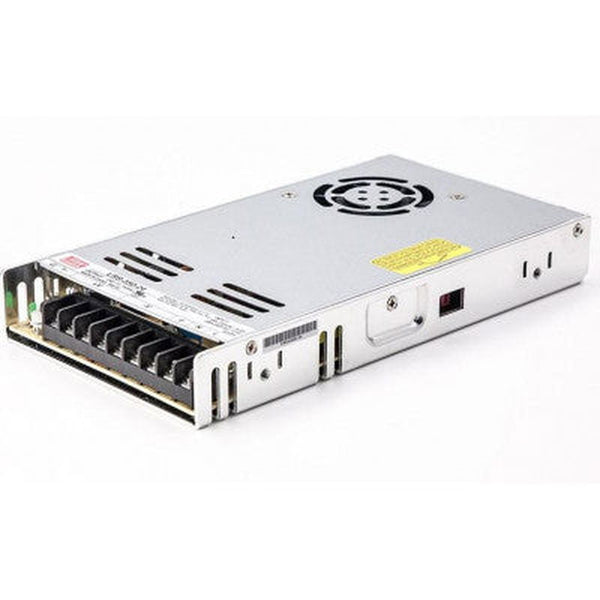

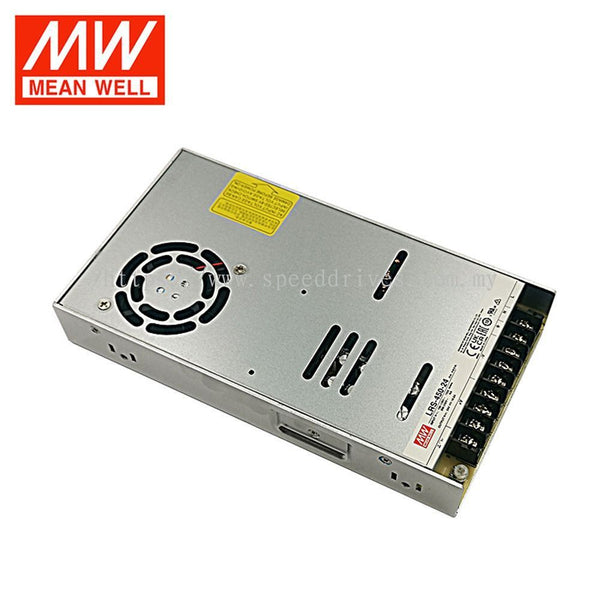

LRS: The workhorse enclosed SMPS for panels, CCTV and LED; LRS-150/350/600 have a 115/230 V switch, set it to 230 V.
RS: Low-cost enclosed SMPS for small control and signal loads.
RSP: Higher-power enclosed SMPS with active PFC for machines and large loads.
MDR: Compact DIN-rail SMPS for PLC and sensor supplies in small panels.
HDR: Ultra-slim DIN-rail SMPS that fits distribution-board style enclosures.
EDR: Economical 120 W DIN-rail SMPS.
NDR: Slim 240–480 W DIN-rail SMPS with active PFC.
SDR: High-power 960 W DIN-rail SMPS with PFC and DC OK relay.
WDR: DIN-rail SMPS for 180–550 V two-line supplies.
TDR: DIN-rail SMPS that runs from a 340–550 V three-phase supply.

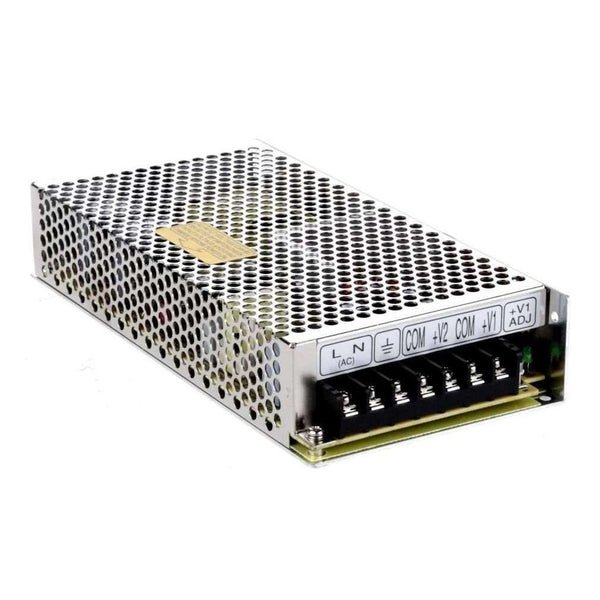

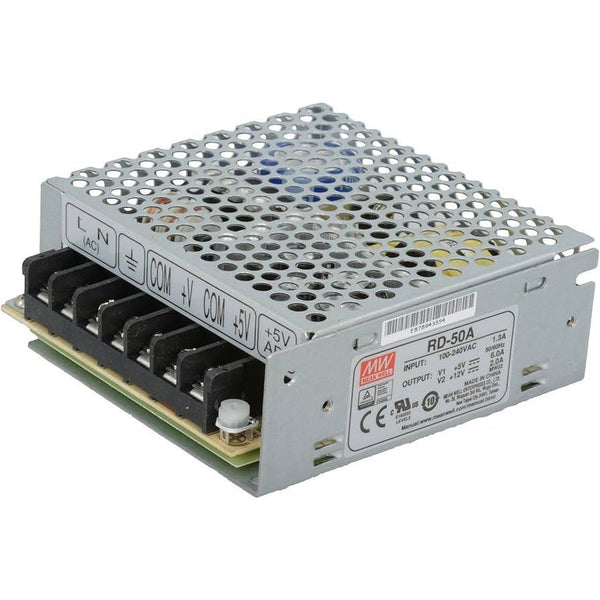

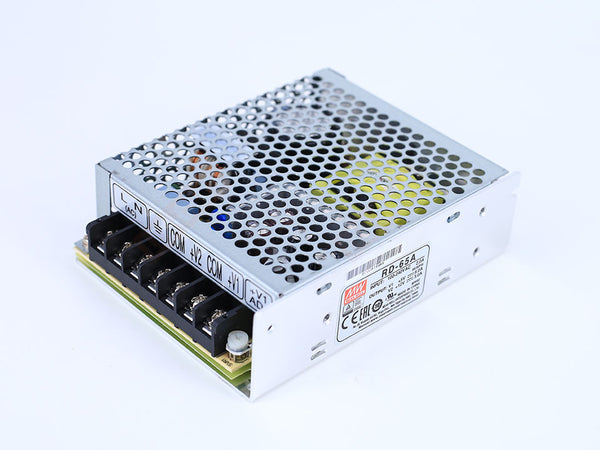

RD: Two isolated outputs in one unit (for example 5 V + 12 V).

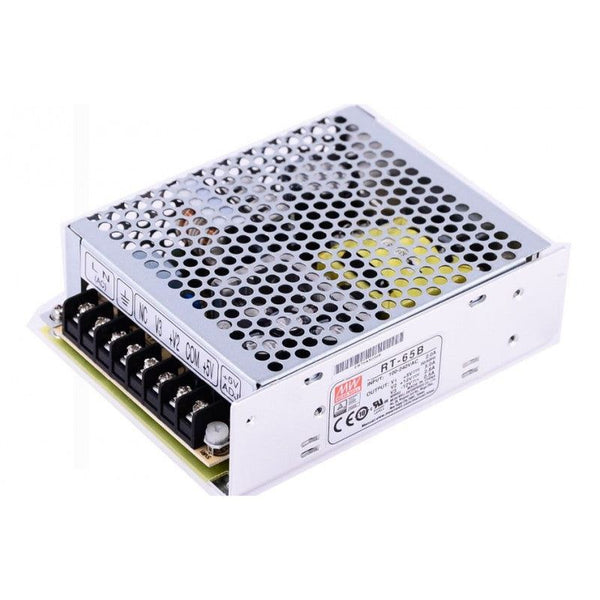

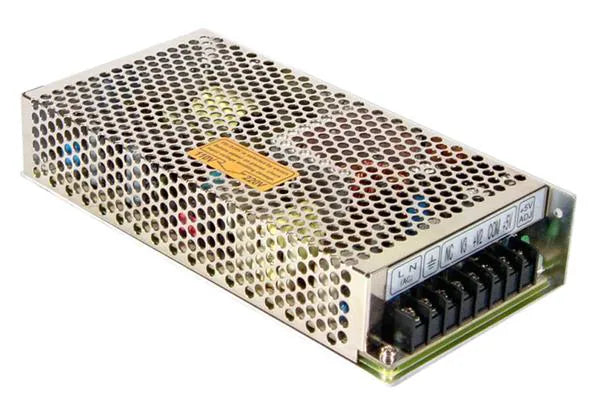

RT: Three outputs in one unit.
RQ: Four outputs in one unit.
APV: Compact constant-voltage LED driver.

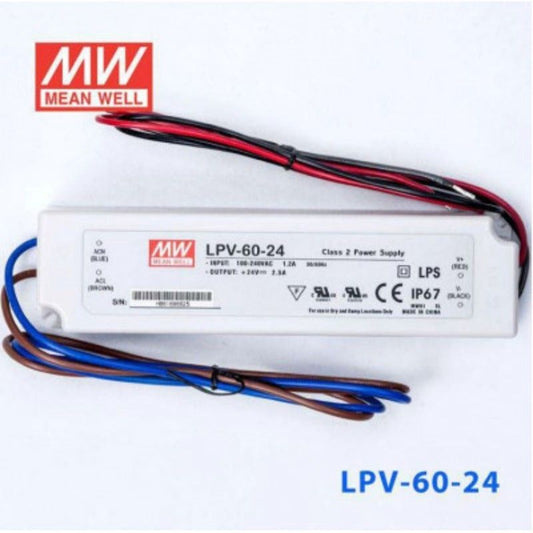

LPV: Waterproof constant-voltage LED driver for outdoor and signage LED.
RPS: Selec DIN-rail SMPS, 24 V.
RP: Selec compact DIN-rail SMPS, 24 V.

How to choose an SMPS

Output voltage: 24 V DC for PLCs and sensors, 12 V for CCTV and LED, 5 V or 48 V for specific devices.
Current with headroom: add up the load current and allow about 25% spare.
Mounting: DIN rail inside control panels; enclosed for plate mounting.
Input supply: most series need single-phase AC; choose TDR for three-phase or WDR for a two-line 180–550 V supply.

Guides: how to select an SMPS for a control panel · Mean Well series explained · how to wire a DIN-rail SMPS.

By output voltage: 12 V SMPS, 24 V SMPS and 48 V SMPS, each with watts, amps and live prices.

Comparing brands? Read Mean Well vs Delta vs Omron SMPS: which to buy.

Frequently asked questions

Which SMPS series should I choose for a control panel?

For a DIN-rail panel choose MDR or HDR for small loads, EDR for an economical 120 W, NDR for 240–480 W, and TDR if you only have a three-phase supply. For a box-type (enclosed) supply mounted on a plate, LRS is the usual choice. Our SMPS selection guide walks through sizing.

What is the price of a 24V 5A SMPS?

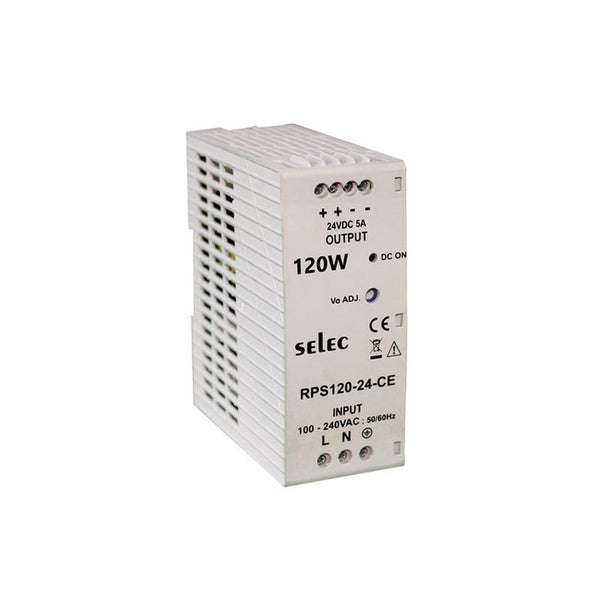

A 24 V 5 A (120 W) DIN-rail SMPS costs ₹1,560 (RPS120-24) and ₹2,230 (EDR-120-24) on Voltkart, including GST. Enclosed 24 V supplies start lower; see the Mean Well SMPS price list for every model.

DIN rail or enclosed SMPS?

DIN-rail SMPS clip onto the 35 mm rail next to MCBs and relays and are the norm in control panels. Enclosed (box) SMPS such as LRS screw to a panel plate, cost less per watt and suit CCTV, LED and machine supplies.

Is Voltkart an authorised Mean Well distributor?

Yes. Voltkart is an authorised distributor of Mean Well and Selec, with a GST invoice on every order and pan-India delivery. See the Mean Well distributor page.

Not sure which model you need? Send the load details on WhatsApp at 8800754881 (Mon–Sat, 12:30–7 pm). For bulk or OEM quantities, ask for a quote on the same number.
